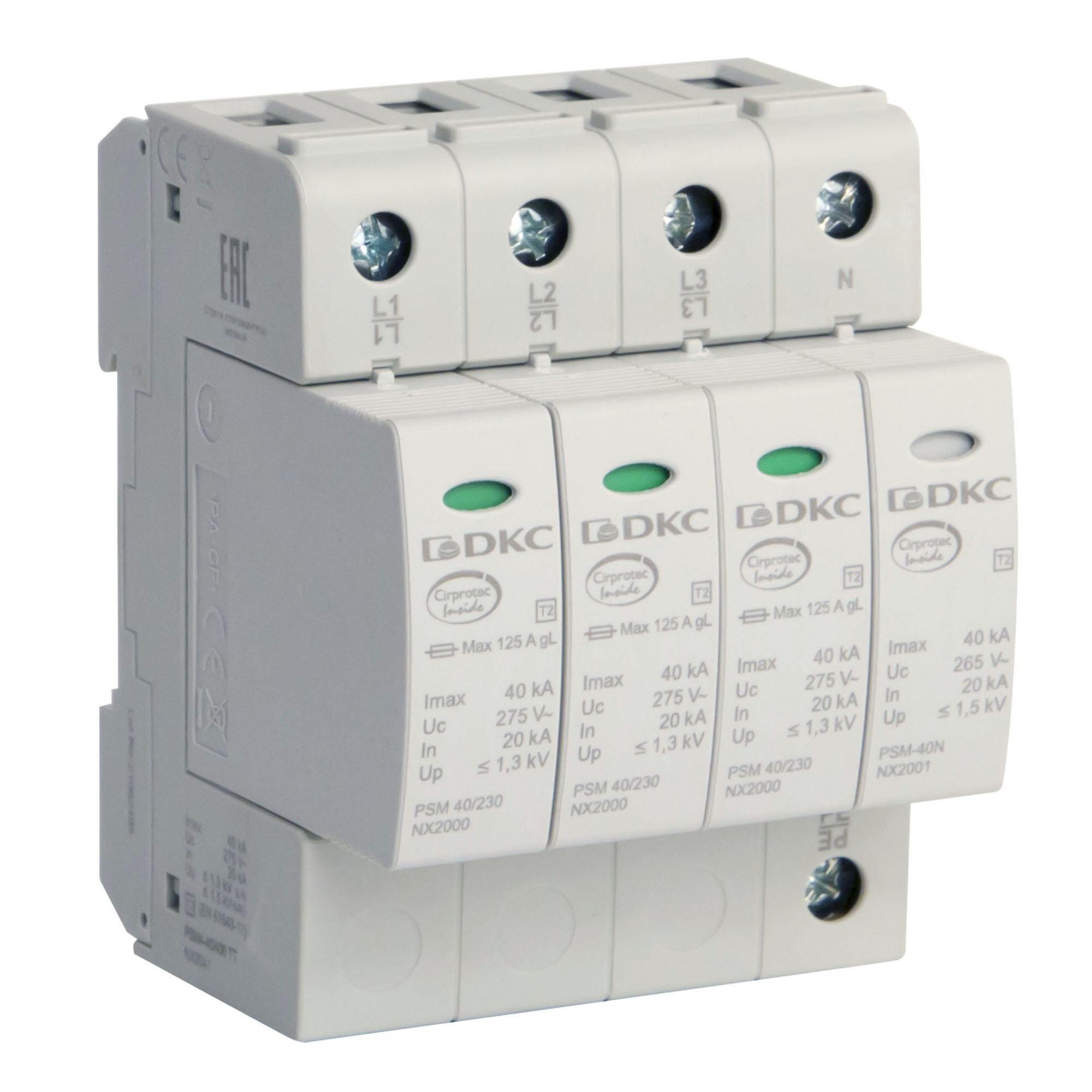

Type II SPD, 4P, L1-L2-L3-N-P, 40kА

Code: NX2041
Type II SPD, 4P, L1-L2-L3-N-P, 40kА
  • To ask a question
Mounting method DIN rail (top hat rail) 35 mm
Construction size 4 modular spacing
Voltage protection level, kV 1.5
Nominal discharge surge current (8/20), kA 20
Nominal voltage AC, V 230
With remote signalling contact No
Max. continuous voltage AC, V 275
Voltage protection level L-N, kV 1.3
Signalling at the device Optic
Voltage protection level N-PE, kV 1.5
Integrated backup fuse No
Max. conductor cross section solid (solid, stranded), mm² 35
Max. conductor cross section flexible (fine-strand), mm² 25
Degree of protection (IP) IP20
Max. discharge surge current (8/20), kA 40
System configuration TN-C-S No
System configuration other No
System configuration TT Yes
System configuration TN-S Yes
System configuration TN-C No
System configuration TN No
System configuration IT No
System configuration DC No
Short-circuit breaking capacity (Isccr), kA 25
