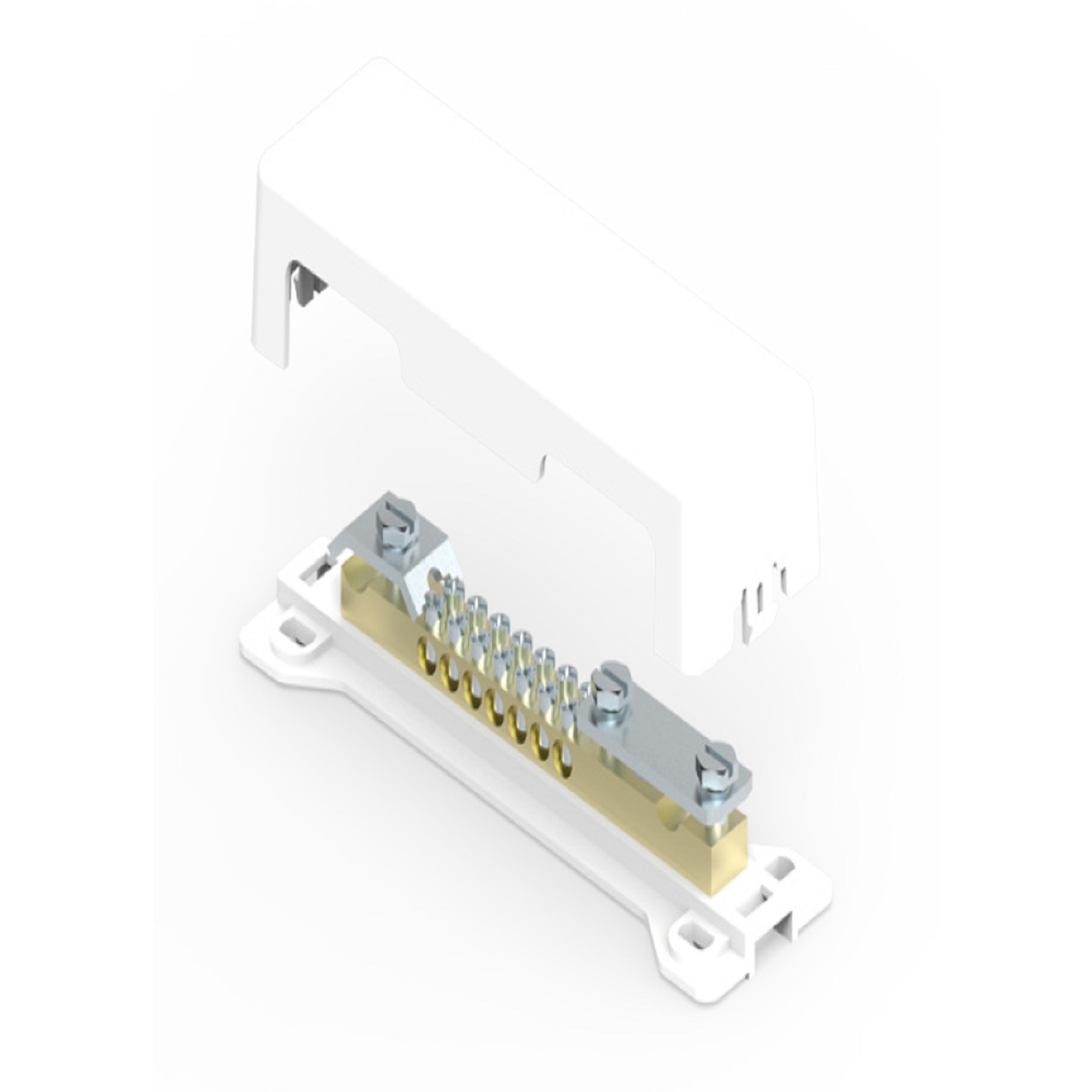

Equipotential busbar, 10 terminals
Code: NE1001
Equipotential busbar, 10 terminals
Code: NE1001
| Width, mm | 50 |
| Model | In housing |
| Height, mm | 45 |
| Construction type | Surface mounting fix |
| Length, mm | 175 |
| Number of connections conductor to 25 mm² fixed | 7 |
| Number of connections round conductor 8 mm | 1 |
| Insulator | No |
| Material of clamp | Stainless steel V2A |
| Material of contact rail | Brass |
| Number of connections flat conductor 30 mm | 1 |
| Product type | Equipotential bonding |
| Number of bus connections | 10 |
| Cross section of the connecting conductors | 4-25 mm² |
| Application area | Equipotential busbar |
