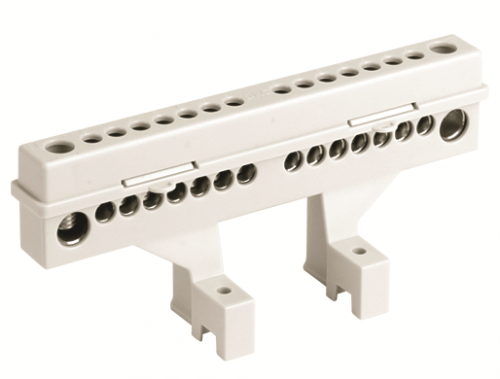

Terminal holder (12 modules)
Code: 87212
Terminal holder (12 modules)
Code: 87212
| Mounting method | Special profile |
| Colour | Other |
| Rated voltage, V | 400 |
| Number of poles | 12 |
| Length, mm | 231.8 |
| Operating temperature, °C | -60…80 |
| Width/grid dimension, mm | No |
| Closing plate required | No |
| Transparent | No |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connection position | Sideways |
Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
