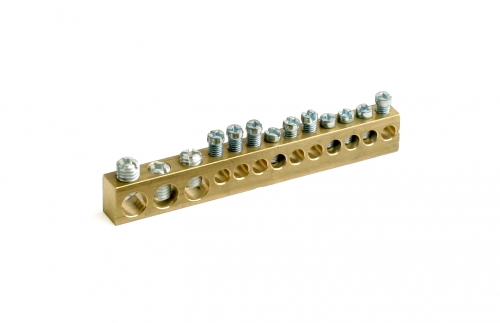

Reinforced terminal block 12 modules, (3х9mm+10х5,4mm)
Code: 87112
Reinforced terminal block 12 modules, (3х9mm+10х5,4mm)
Code: 87112
| Mounting method | Special profile |
| Colour | Other |
| Rated voltage, V | 400 |
| Number of poles | 12 |
| Length, mm | 110 |
| Operating temperature, °C | -60…80 |
| Number of clamp positions per pole | 10 |
| Width/grid dimension, mm | 5.4 |
| Closing plate required | No |
| Transparent | No |
| Rated current In, A | 160 |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to with UL94 | Other |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Other |
| Connection position | Sideways |
Drawings
| Seria | Name | DWG | STEP |
|---|---|---|---|
|
