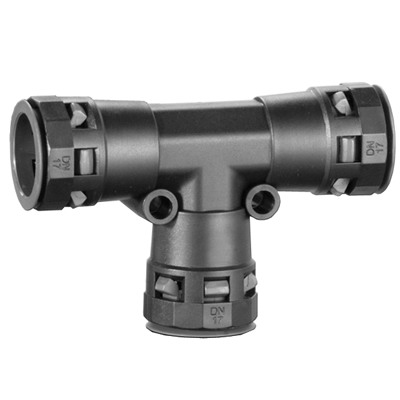

"T" Distributor DN 17/17/17 mm, polyamide, black color

Code: PAT17N
"T" Distributor DN 17/17/17 mm, polyamide, black color
  • To ask a question
Model Watertight
Outer diameter, mm 17
Surface protection Other
Material quality Other
Material Plastic
Surface polished No
Diameter (nominal) 17 mm
Color Black
-5°С ... +60°С -40°С ... +105°С
Ingress Protection rating, IP from IP66 to IP68 (with optional seals)
от -25°С до +60°С from -40 ° С to + 105 ° С (short-term exposure to + 150С)
Product type T-branch
ТУ 2248-012-47022248-2009 Technical specifications 2247-024-47022248-2009
3 года 3 years
15 лет 15 years

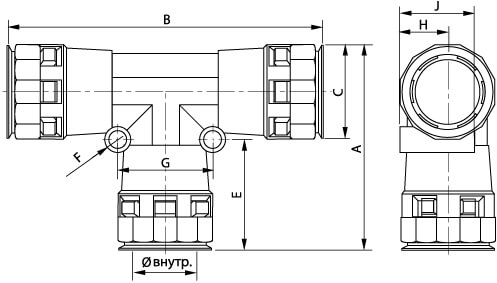

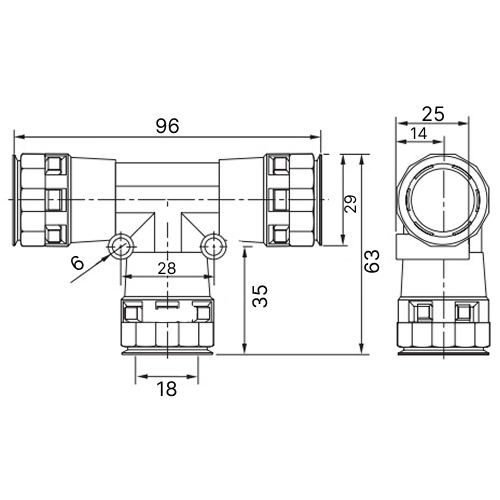

Drawings
Seria Name STEP
Flexible corrugated polyamide conduits
