Model | Plug-in |
Halogen free | Yes |
Surface protection | Other |
Material quality | Other |
Material | Plastic |
For nominal tube diameter, mm | 29 |
Surface polished | No |
Surface brushed | No |
Quality of surface coating | Other |
Colour | Black |
Two piece | No |
Degree of protection (IP) | IP66 |
With stop | No |
Diameter (nominal) | 29 mm |
Color | Black |
-5°С ... +60°С | -40°С ... +105°С |
Ingress Protection rating, IP | from IP66 to IP68 (with optional seals) |
от -25°С до +60°С | from -40 ° С to + 105 ° С (short-term exposure to + 150С) |
Threading | M32x1,5 |

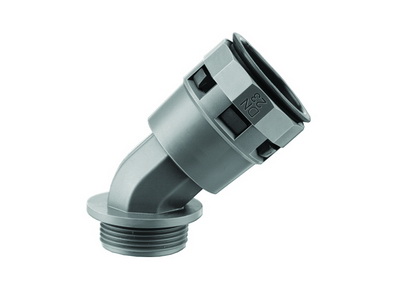

Product type | 45° elbow metric connector |
ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
3 года | 3 years |
15 лет | 15 years |

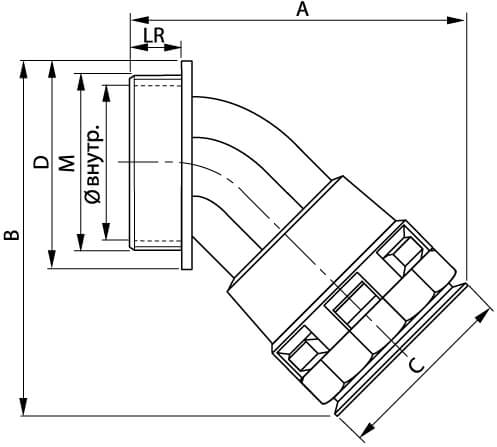

Drawings
Seria | Name | STEP |
---|---|---|
Flexible corrugated polyamide conduits
|
