| Model | Plug-in |
| Halogen free | Yes |
| Surface protection | Other |
| Material quality | Other |
| Material | Plastic |
| For nominal tube diameter, mm | 17 |
| Surface polished | No |
| Surface brushed | No |
| Quality of surface coating | Other |
| Colour | Black |
| Two piece | No |
| Degree of protection (IP) | IP66 |
| With stop | No |
| Diameter (nominal) | 17 mm |
| Color | Black |
| -5°С ... +60°С | -40°С ... +105°С |
| Ingress Protection rating, IP | from IP66 to IP68 (with optional seals) |
| от -25°С до +60°С | from -40 ° С to + 105 ° С (short-term exposure to + 150С) |
| Threading | M20x1,5 |

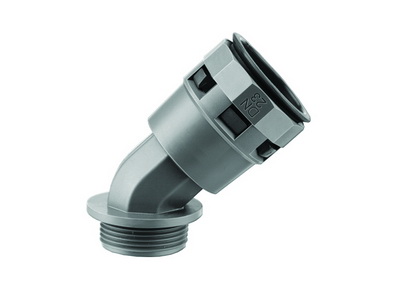

| Product type | 45° elbow metric connector |
| ТУ 2248-012-47022248-2009 | Technical specifications 2247-024-47022248-2009 |
| 3 года | 3 years |
| 15 лет | 15 years |

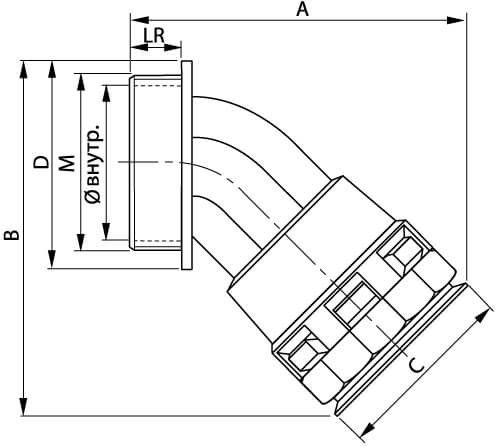

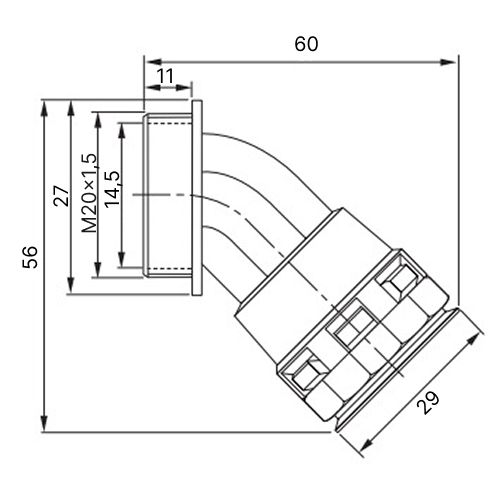

Drawings
| Seria | Name | STEP |
|---|---|---|
|
