Mounting method | Universal |
Colour | Grey |
Width, mm | 298 |
Depth, mm | 144 |
Length, mm | 392 |
Sealable | Yes |
Material | Aluminium |
EF002397 | -25…70 |
Cover attachment | Screwed |
Weatherproof | Yes |
Degree of protection (IP) | IP66 |
Shape | Rectangular |
EF007726 | EV009954 |
Equipped with | None |
Color | gray |
Product type | Junction boxes |
Material | PVC |
Height, mm | 410 |
Width, mm | 315 |
Temperature of mounting, °C | -25 ... +90 °С |
Width (nominal), mm | 298 |
Ingress Protection rating, IP | IP66/IP67 |
Temperature of operation, °C | from -25 to +90 °С |
Height (nominal), mm | 392 |
Depth (nominal), mm | 144 |
Depth, mm | 153 |
Fire protection | non-combustible material |

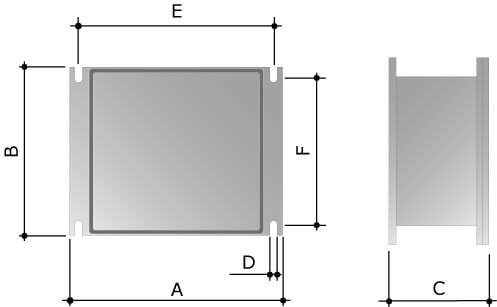

Drawings
Seria | Name | STEP |
---|---|---|
