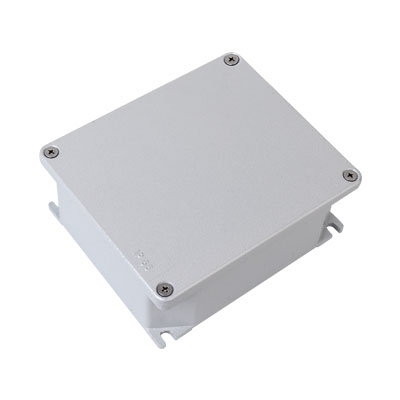

Alluminium alloy painted juncion box, IP66, 294x244x114 mm

Code: 65305

Alluminium alloy painted juncion box, IP66, 294x244x114 mm

Code: 65305
Mounting method Universal
Colour Grey
Width, mm 244
Depth, mm 114
Length, mm 294
Sealable Yes
Material Aluminium
Cover attachment Screwed
Weatherproof Yes
Degree of protection (IP) IP66
Shape Rectangular
Equipped with None
Surface protection Untreated
Color gray
Product type Junction boxes
Material PVC
Height, mm 314
Width, mm 264
Temperature of mounting, °C -25 ... +90 °С
Width (nominal), mm 244
Ingress Protection rating, IP IP66/IP67
Temperature of operation, °C from -25 to +90 °С
Height (nominal), mm 294
Depth (nominal), mm 114
Depth, mm 122
Fire protection non-combustible material

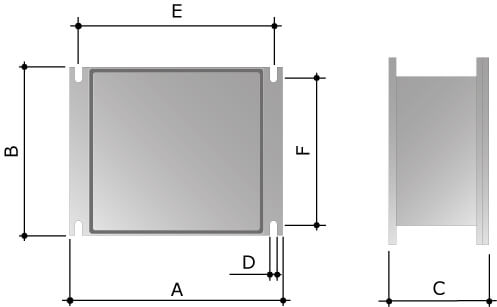

Drawings
