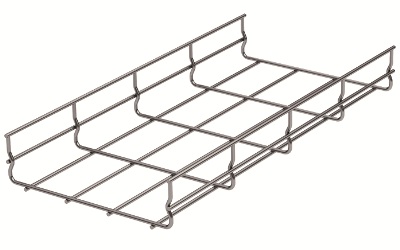

Mesh tray 80х300 L3000 inox

Code: FC8030INOX
Mesh tray 80х300 L3000 inox
  • To ask a question
Width, mm 300
Model Without connector
Height, mm 80
Length, mm 3000
Material Steel
Wire diameter, mm 5
Integrated partition None
Useful cross section, mm² 24000
Profile shape U-shape
Stainless steel, pickled Yes
Wide span model Yes
Screwless connector Yes
Surface protection Bare
Product type Straight elements
Length 3000 mm
Width 300 mm
Height 80 mm
Material Stainless steel
Type Metal wire mesh trays - "F5 Combitech"
Accessories

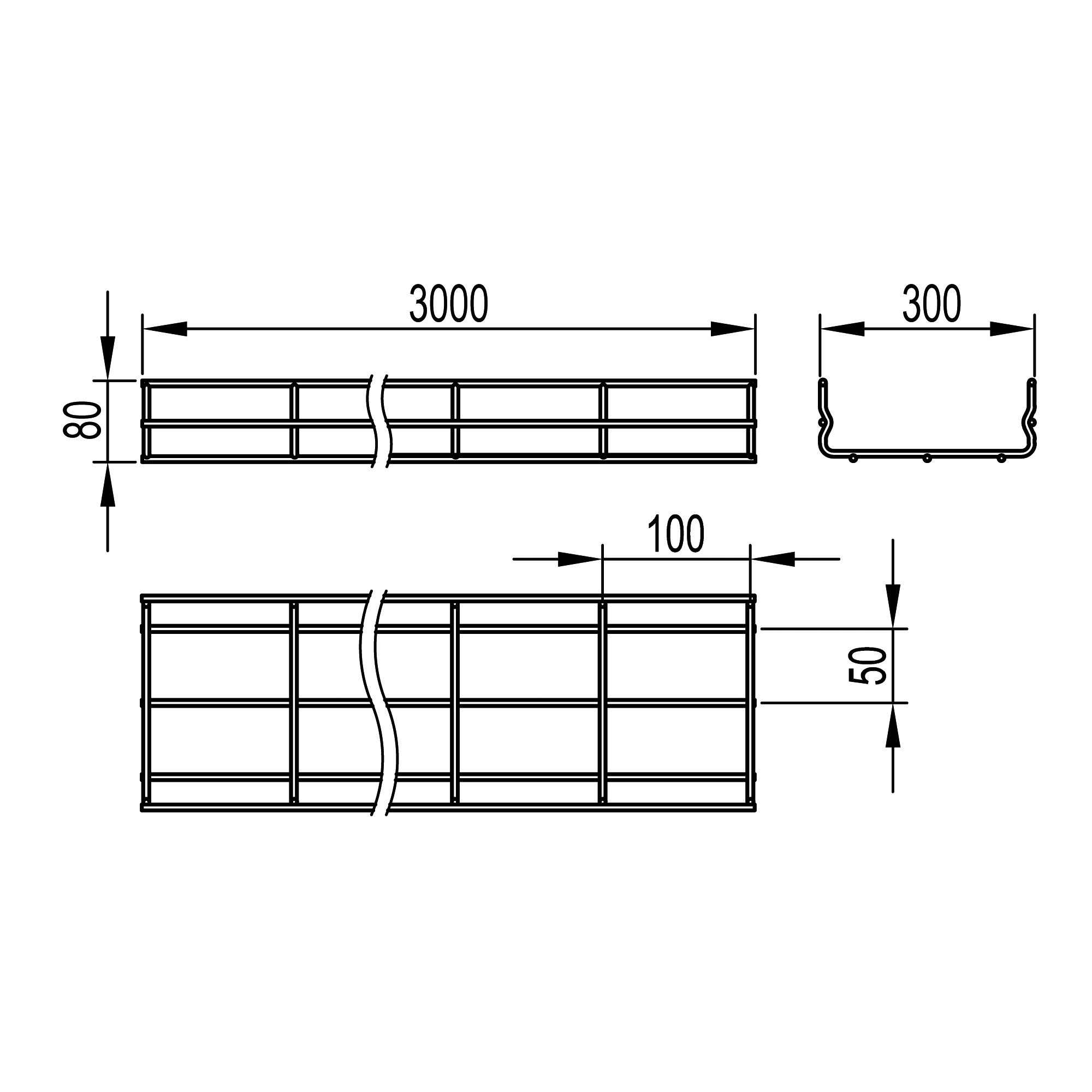

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
