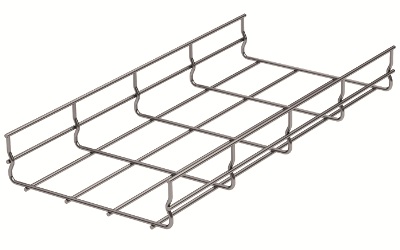

Mesh tray 50х50 L3000 inox

Code: FC5005INOX

Mesh tray 50х50 L3000 inox

Code: FC5005INOX
Width, mm 50
Model Without connector
Height, mm 50
Length, mm 3000
Material Steel
Wire diameter, mm 4
Integrated partition None
Useful cross section, mm² 2500
Profile shape U-shape
Stainless steel, pickled Yes
Wide span model Yes
Screwless connector Yes
Surface protection Bare
Product type Straight elements
Length 3000 mm
Width 50 mm
Height 50 mm
Material Stainless steel
Type Metal wire mesh trays - "F5 Combitech"
Accessories

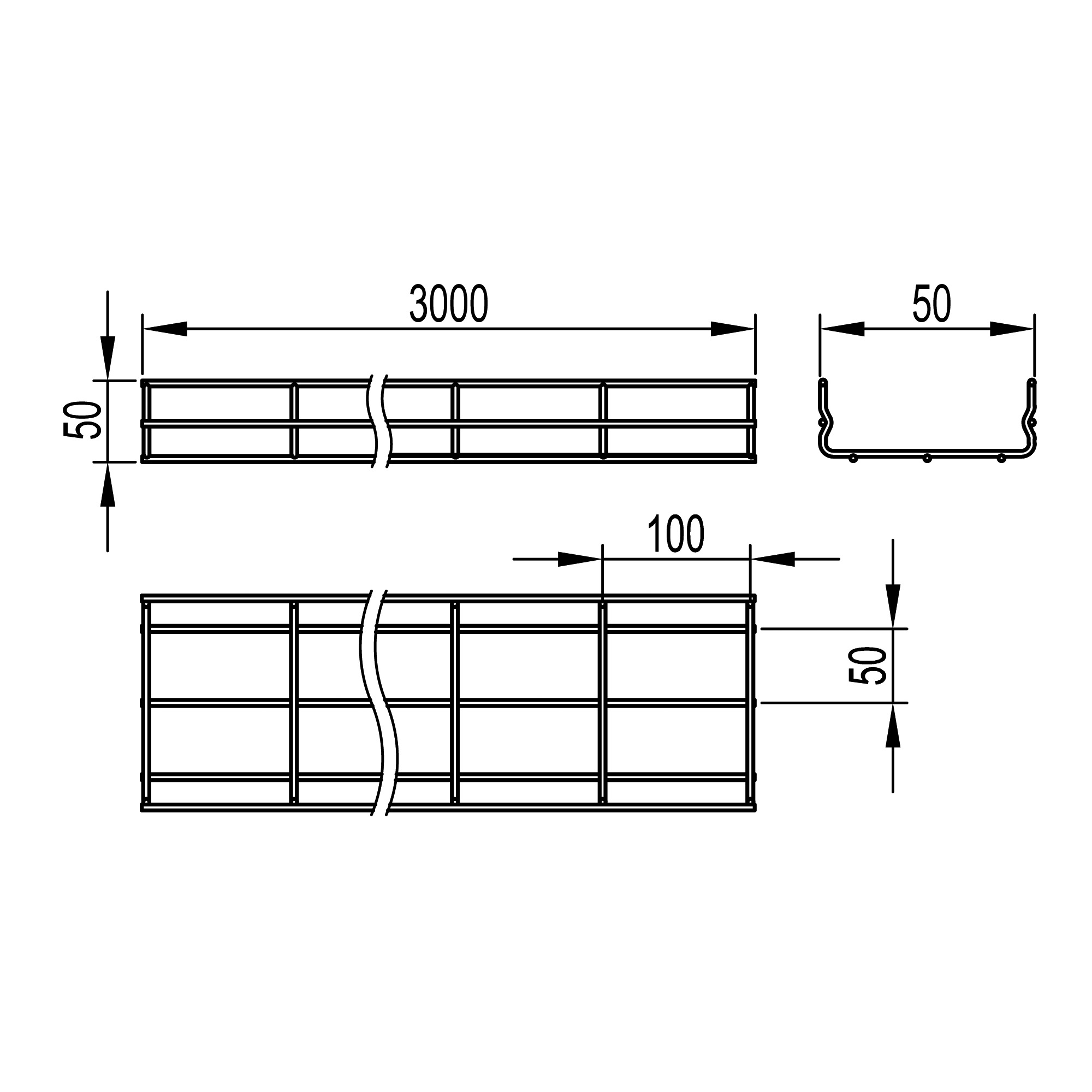

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
