Mesh tray 30х500 L3000 HDZ

Code: FC3050HDZ

Mesh tray 30х500 L3000 HDZ

Code: FC3050HDZ
Width, mm 500
Model Without connector
Height, mm 30
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 3000
Material Steel
Wire diameter, mm 5
Integrated partition None
Useful cross section, mm² 15000
Profile shape U-shape
Stainless steel, pickled No
Wide span model No
Screwless connector No
Product type Straight elements
Length 3000 mm
Width 500 mm
Height 30 mm
Material Hot-dip galvanized
Type Metal wire mesh trays - "F5 Combitech"
Accessories

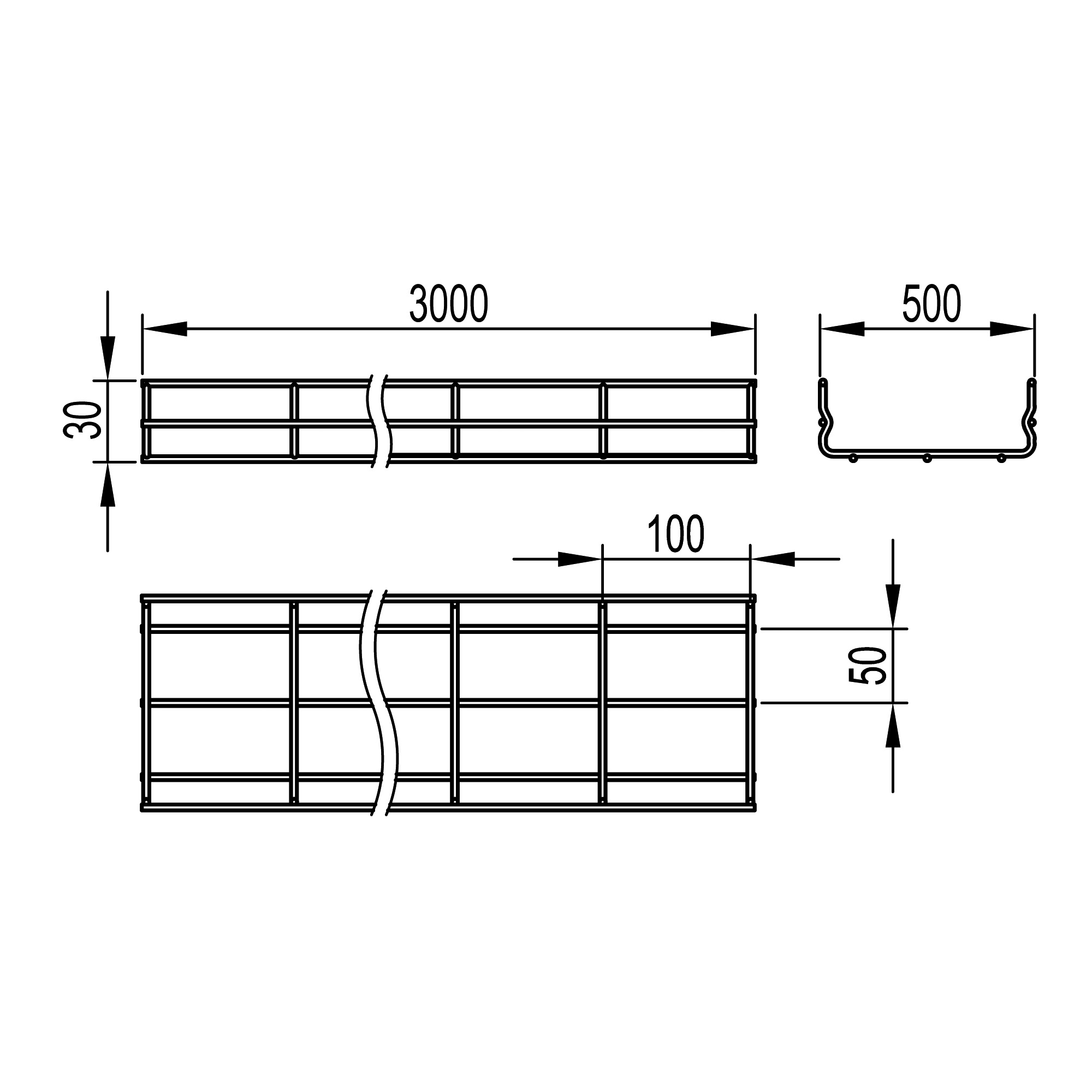

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
