Mesh tray 30х200 L3000 HDZ

Code: FC3020HDZ
Mesh tray 30х200 L3000 HDZ
  • To ask a question
Width, mm 200
Model Without connector
Height, mm 30
Surface protection Hot-dip galvanized
Material quality Other
Length, mm 3000
Material Steel
Wire diameter, mm 4
Integrated partition None
Useful cross section, mm² 6000
Profile shape U-shape
Stainless steel, pickled No
Wide span model No
Screwless connector No
Product type Straight elements
Length 3000 mm
Width 200 mm
Height 30 mm
Material Hot-dip galvanized
Type Metal wire mesh trays - "F5 Combitech"
Accessories

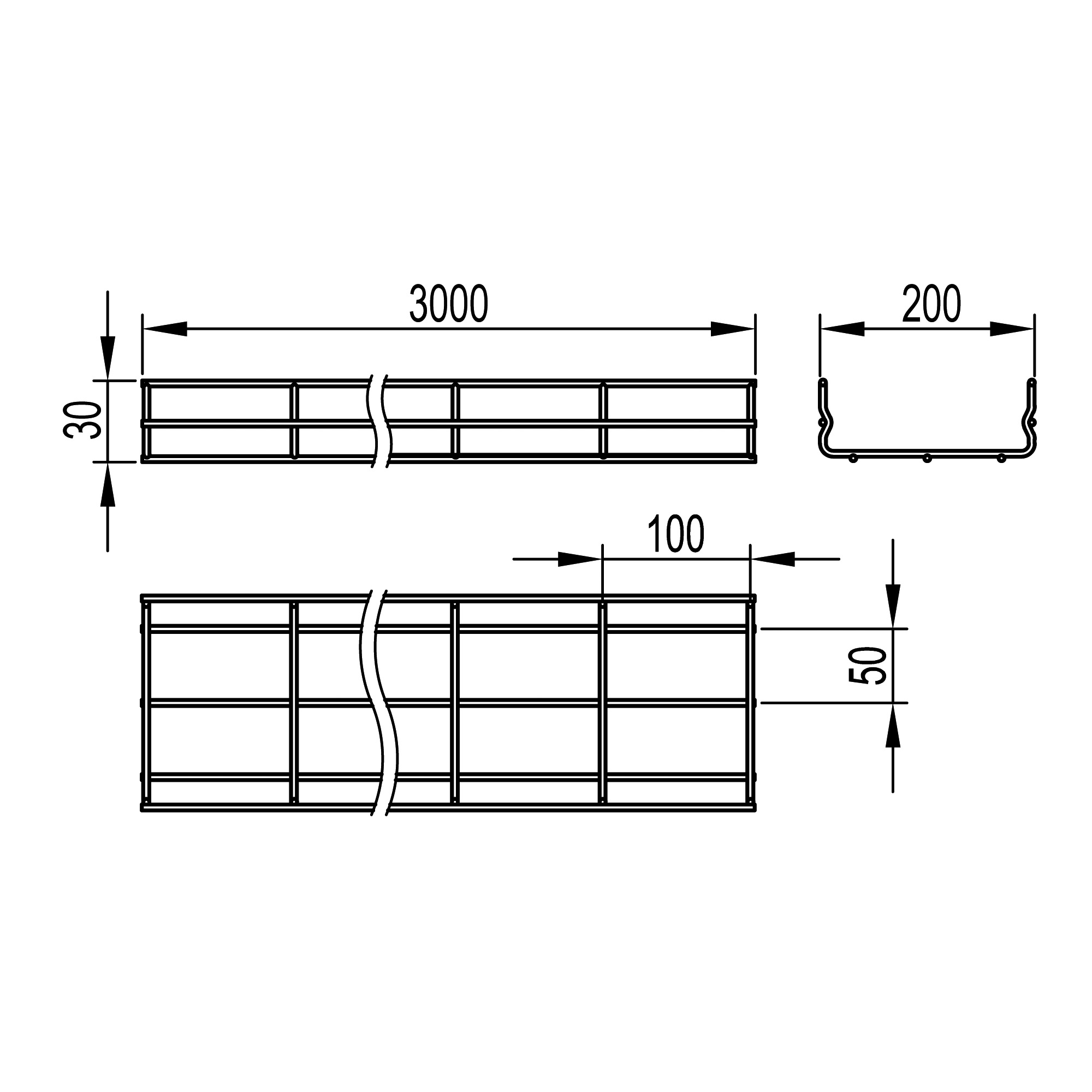

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
