Mesh tray 100х300 L3000 inox
Code:
FC1030INOX
Mesh tray 100х300 L3000 inox
Code:
FC1030INOX
| Width, mm | 300 |
| Model | Without connector |
| Height, mm | 100 |
| Length, mm | 3000 |
| Material | Steel |
| Wire diameter, mm | 5 |
| Integrated partition | None |
| Useful cross section, mm² | 30000 |
| Profile shape | U-shape |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Screwless connector | Yes |
| Surface protection | Bare |
| Product type | Wire mesh cable tray |
| Type | Metal wire mesh trays - "F5 Combitech" |
| Height | 100 mm |
| Length | 3000 mm |
| Material | Stainless steel AISI 304 |
| Width | 300 mm |
Accessories

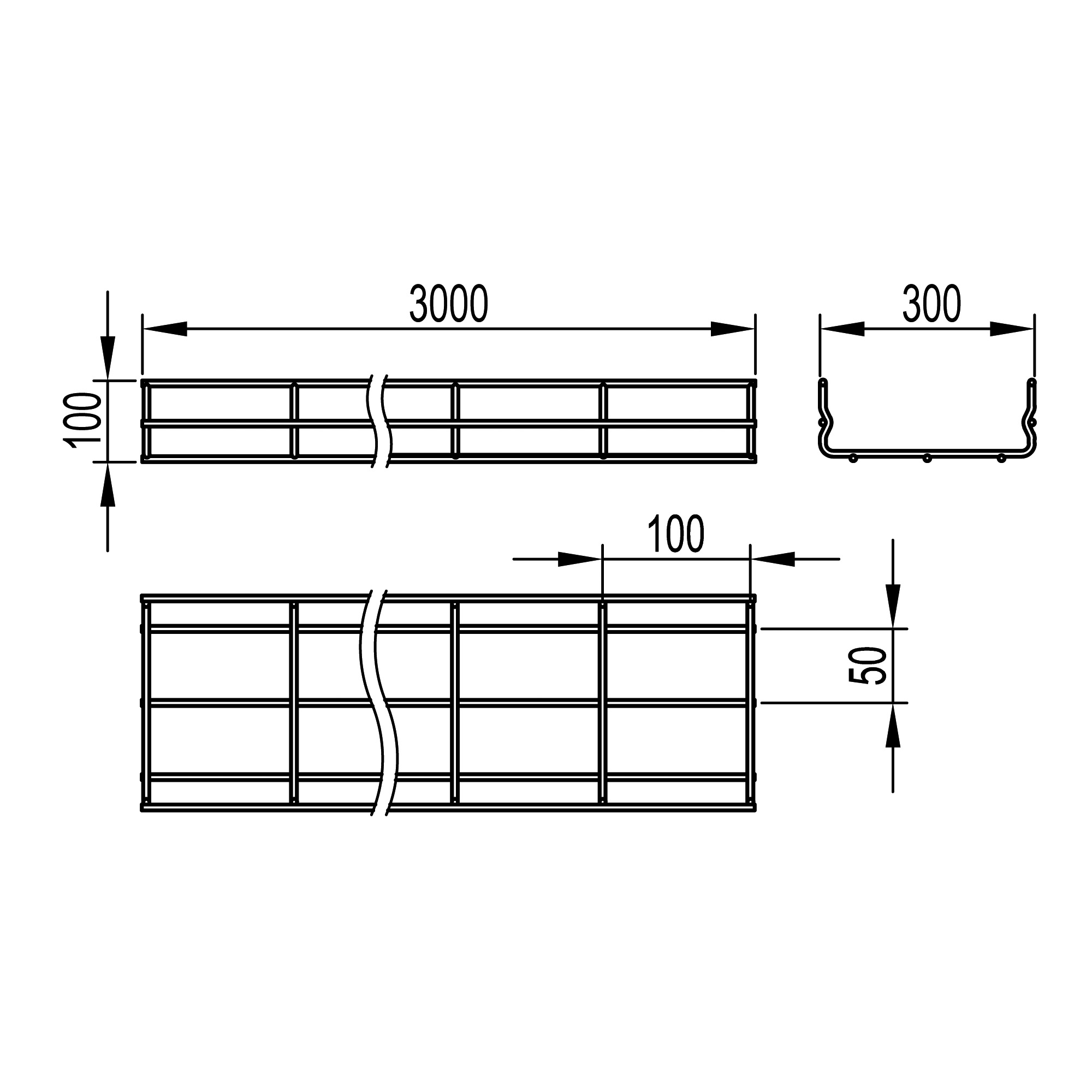

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
|---|---|---|---|---|
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
|
Metal wire mesh trays - "F5 Combitech"
|
|
|
Certificates
| Name | Document |
|---|---|
