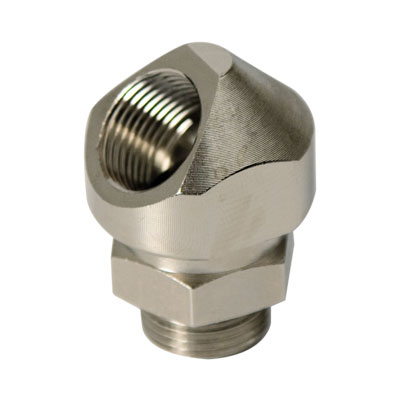

Swivel 45° positioning adapter M20x1,5, IP68/IP67, nickel plated brass

Code: 6028-20G
Swivel 45° positioning adapter M20x1,5, IP68/IP67, nickel plated brass
Swivel 45° positioning adapter M20x1,5, IP68/IP67, nickel plated brass
Code: 6028-20G
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
Construction type Through bore hole
Operational temperature, °C -25...+120
Thread size (metric) 20
Thread size PG 20
Product type 45° rotary adapter
Material PVC
Temperature of mounting, °C -60 ... +105 °С
Ingress Protection rating, IP IP67/IP68
Temperature of operation, °C from -60 to +105 °С

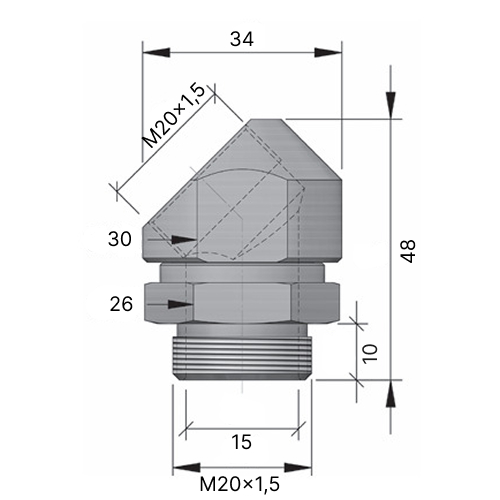

Threading M20 x 1,5
