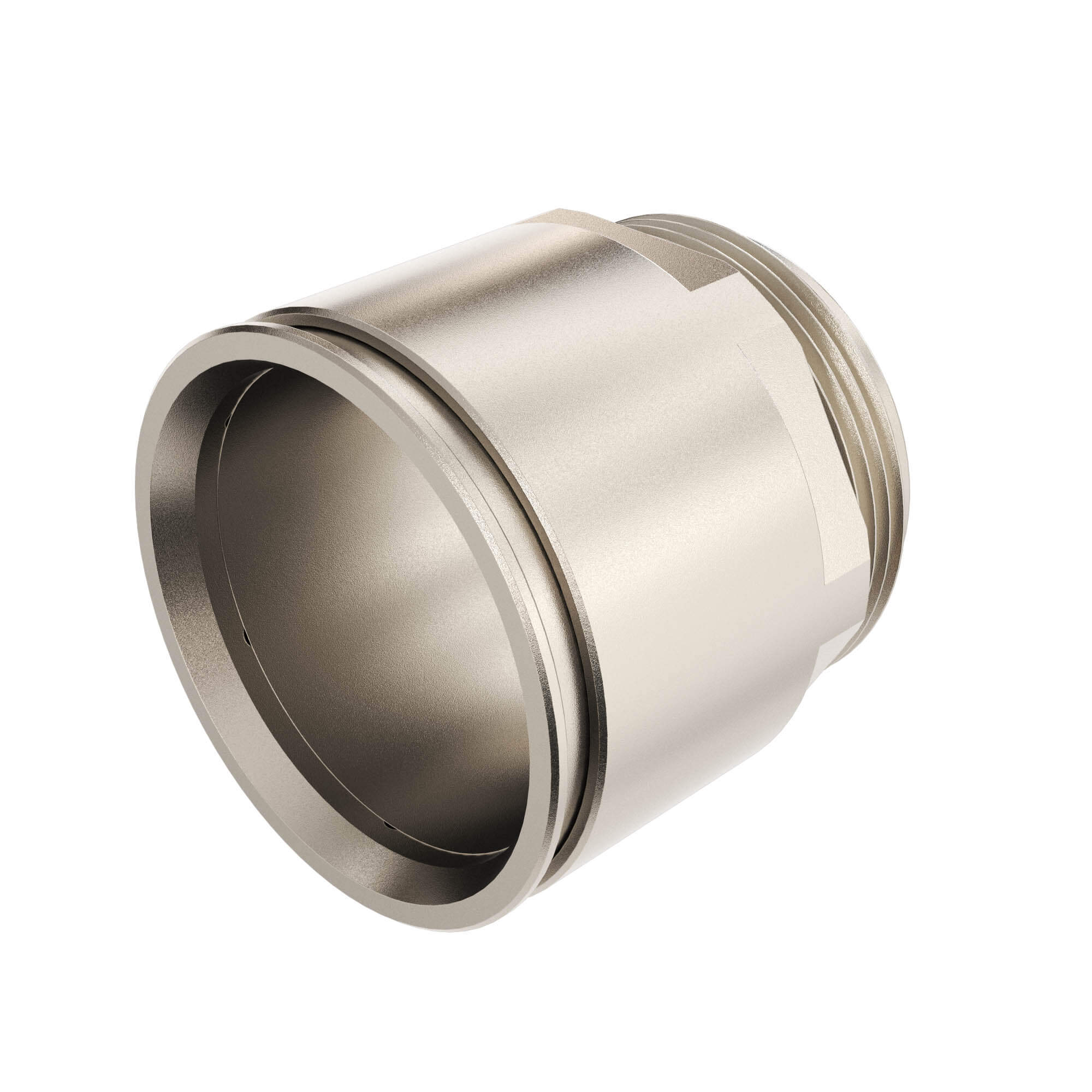

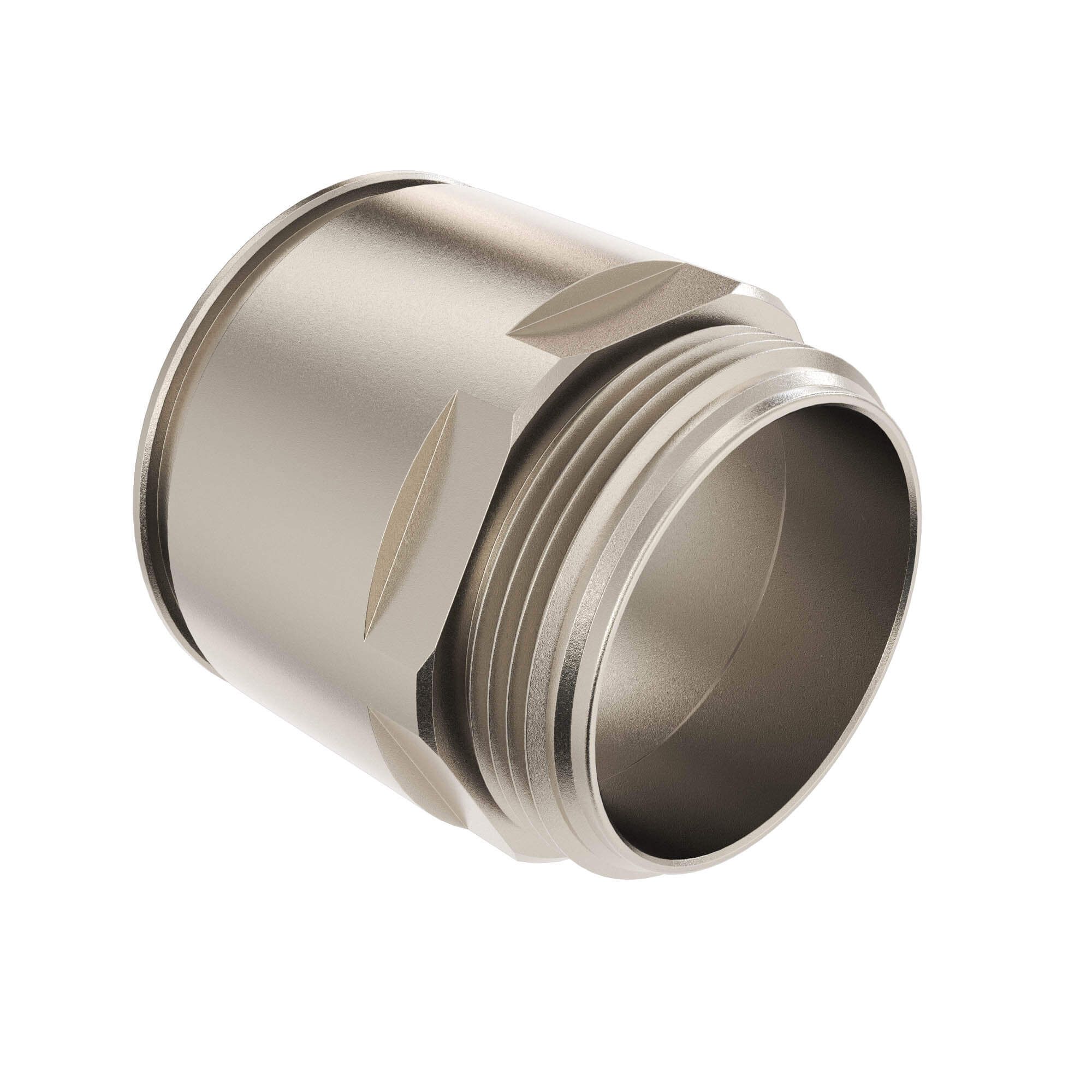

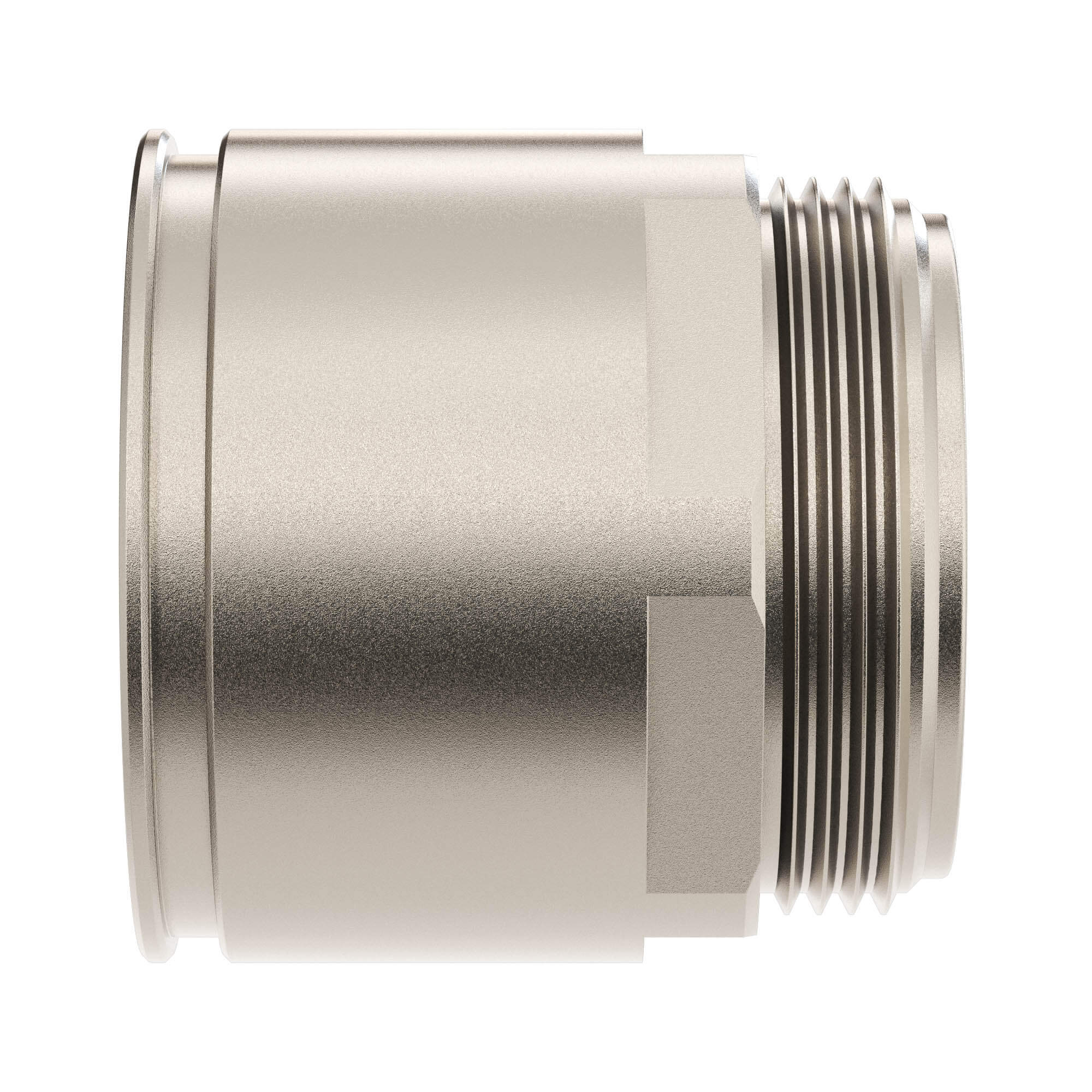

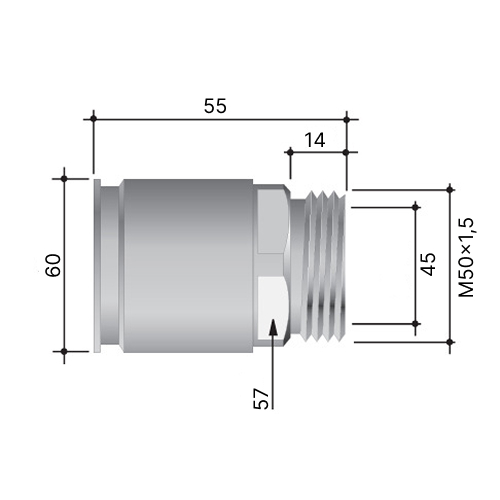

Straight metric thread connector metal rigid tube - box DN 50mm, М50х1,5, nickel plated brass
Code:
6111-A50
Code:
6111-A50
| Model | Straight |
| Construction type | External thread |
| Material housing | Brass |
| Nominal diameter, mm | 50 |
| Thread connection size | M50 x 1.5 |
| Connection type screw connection to housing | Thread |
| Surface protection | Nickel-plated |
| Product type | Conduit-box coupling |
| Material | PVC |
| Ingress Protection rating, IP | IP66/IP67 |
| Threading | M50 x 1,5 |
| -5°С ... +60°С | -25 ... +150 °С |
| от -25°С до +60°С | from -25 to +150 °С |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
