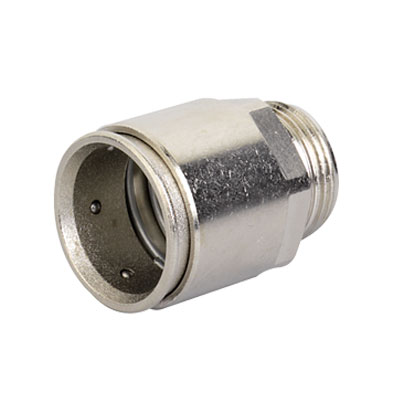

Straight metric thread connector metal rigid tube - box DN 20mm, М20х1,5, nickel plated brass
Code: 6111-A20N
Straight metric thread connector metal rigid tube - box DN 20mm, М20х1,5, nickel plated brass
Code: 6111-A20N
| Material | Metal |
| Material quality | Brass |
| For nominal tube diameter, mm | 20 |
| Surface protection | Nickel-plated |
| Product type | Conduit-box coupling |
| Material | PVC |
| Ingress Protection rating, IP | IP66/IP67 |
| Threading | M20 x 1,5 |
| -5°С ... +60°С | -25 ... +150 °С |
| от -25°С до +60°С | from -25 to +150 °С |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-041-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |

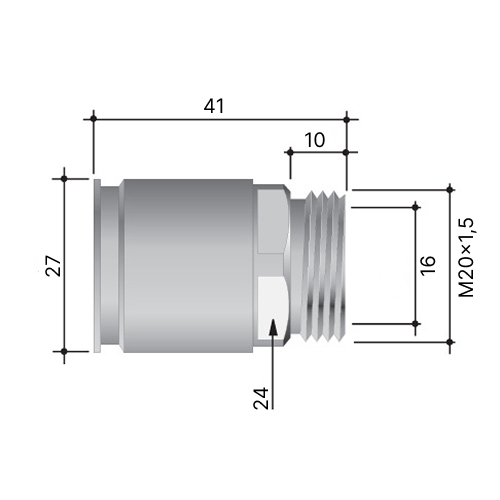

Drawings
| Seria | Name | STEP |
|---|---|---|
|
