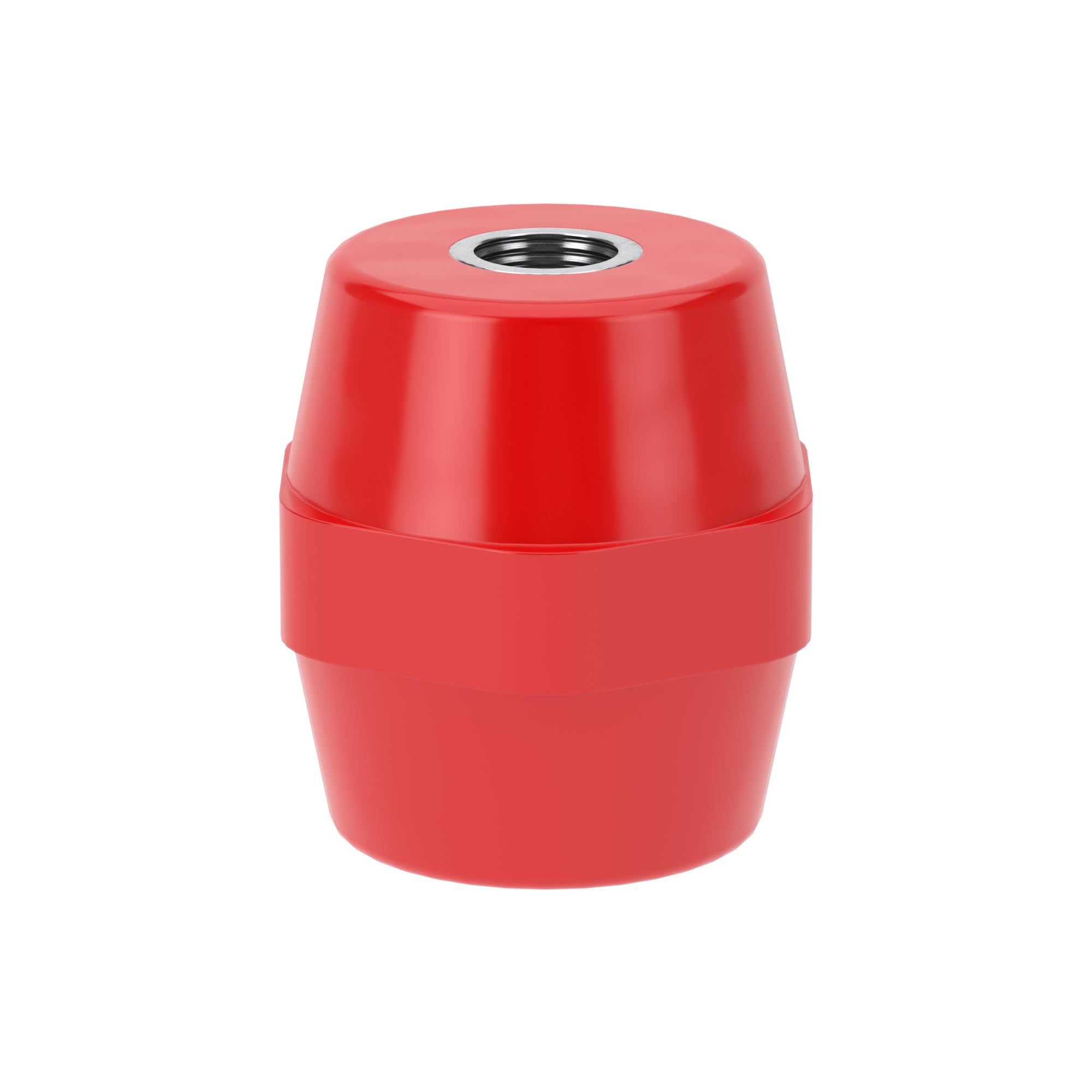

Busbar isolator 25х22 m6

Code: ISBK2827

Bolt dimension metric (M..)	6
Length, mm	25

Outer diameter, mm

Seria	Name	Eplan
Quadro - DIN-rails and accessories	The System "Quadro"	RAR 27.23 MB

Name	Document
Quadro_Busbar isolator - Exemption letter to Busbar isolator for сertificate of conformity to GOST R	PDF 5.56 MB
Quadro_Busbar isolator - Exemption letter for busbar isolator for fire certification_1	PDF 1.22 MB
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1	PDF 1.30 MB
