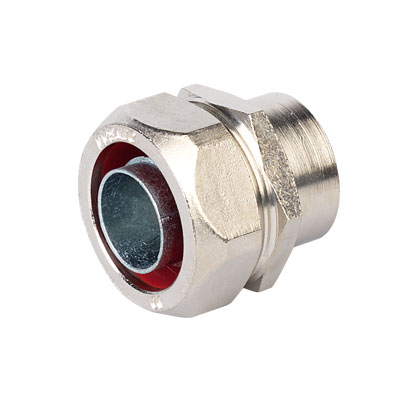

Straight metric female thread connector metal flex.conduit - box DN 20 mm, М25х1,5

Code: 6015-25
Straight metric female thread connector metal flex.conduit - box DN 20 mm, М25х1,5
Straight metric female thread connector metal flex.conduit - box DN 20 mm, М25х1,5
Code: 6015-25
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Drawings
  • Promo
  • Viewed items
Model Straight
Surface protection Nickel-plated
Construction type Internal thread
Material housing Brass
Nominal diameter, mm 20
Thread connection size M25 x 1.5
Connection type screw connection to housing Thread
Product type Metal flexible conduit-box coupling, inside thread
Material PVC
Ingress Protection rating, IP IP40/IP44/IP66/IP67
Threading M25 x 1,5
-5°С ... +60°С -40 ... +80 °С
от -25°С до +60°С from -60 to +80 °С
ТУ 2248-012-47022248-2009 Technical specifications 4833-051-47022248-2016
3 года 3 years
15 лет 3 years
