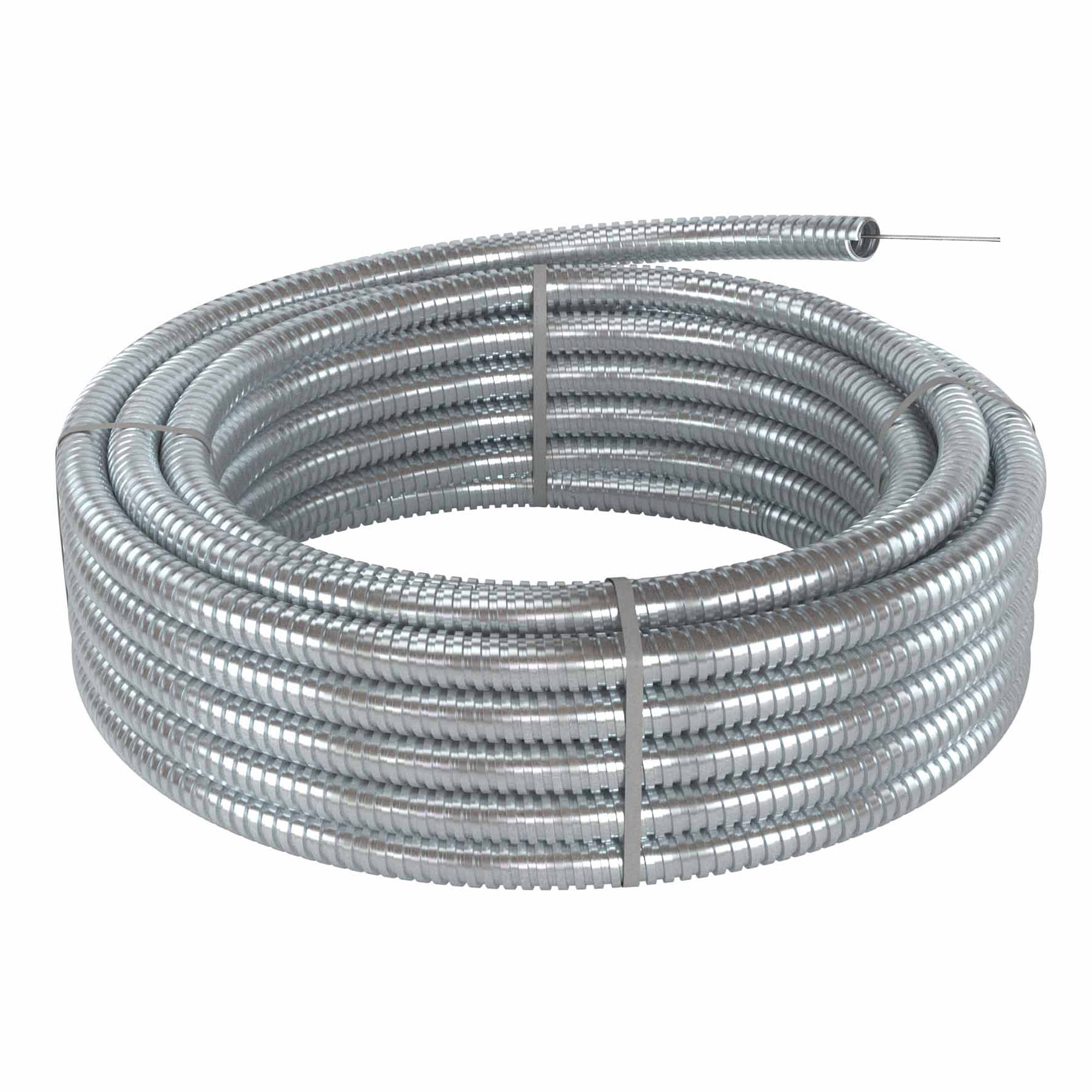

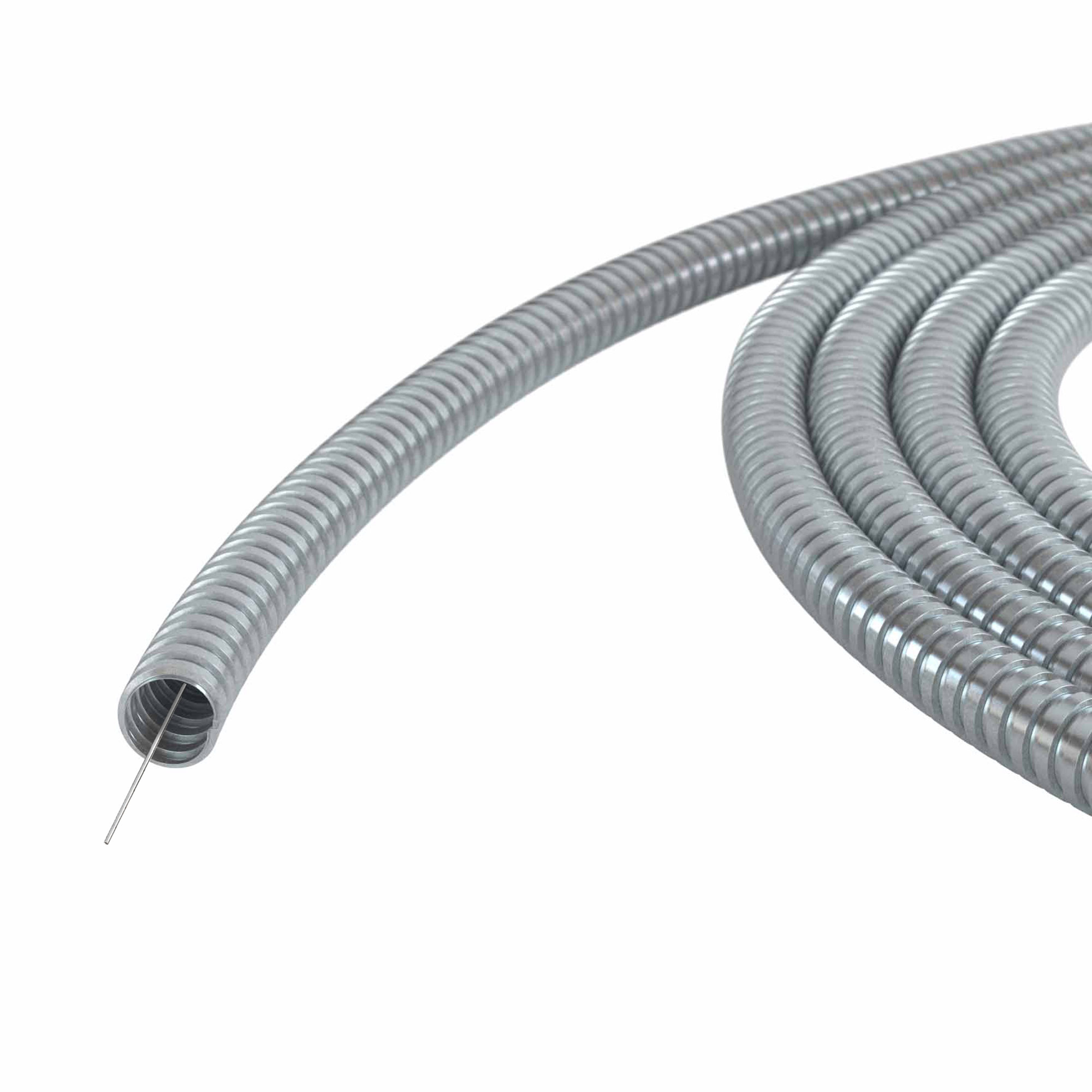

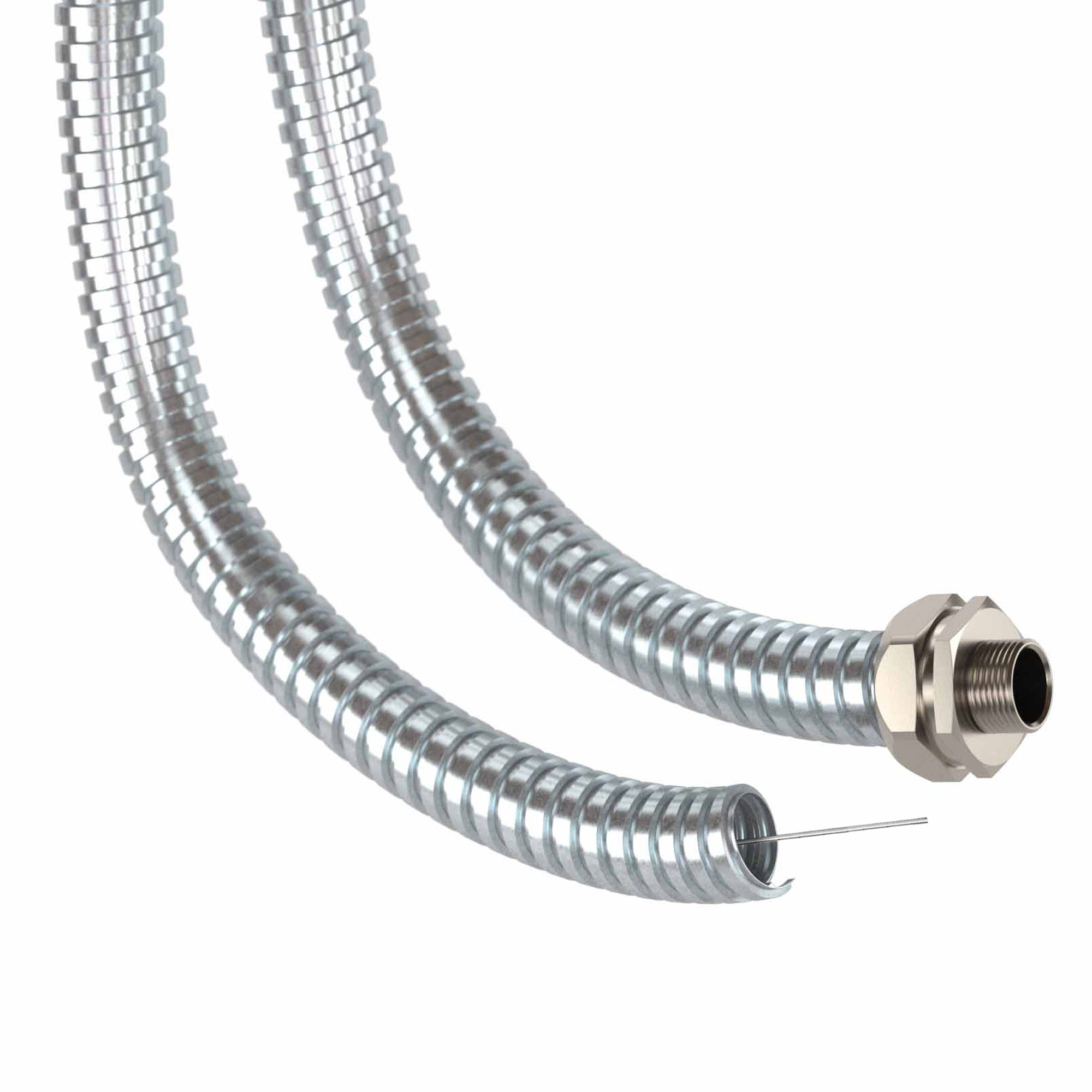

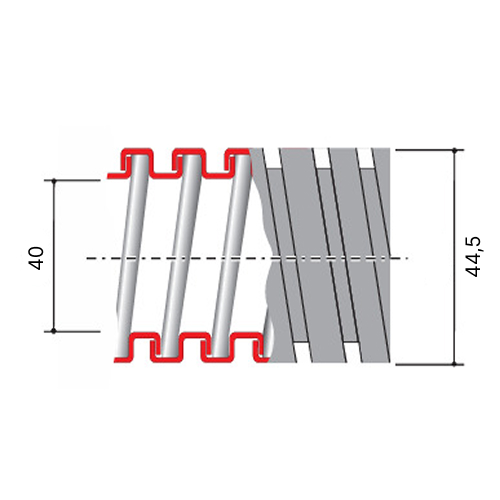

Flexible metal conduit with pull DN 40 mm, ?in 40,0 mm , ?ex 44,5 mm, IP40, 25m, galvanized steel
Code:
667R4044P
Code:
667R4044P
| Operational temperature, °C | -60...250 |
| Material | Steel |
| Tensile strength, N | 500 |
| Nominal diameter, mm | 40 |
| Degree of protection (IP) | IP40 |
| Bending strength | Flexible |
| Sheathing material 2nd coating (exterior) | Not sheathed |
| With draw wire | Yes |
| Product type | Flexible galvanized steel metal conduit |
| Material | Galvanized steel |
| Color | gray |
| Length | 25m |
| -5°С ... +60°С | -60 ... +250 °С |
| от -25°С до +60°С | -60 ... +250 °С |
| Degree of protection | IP40 |
| Impact strength | >2 J at -60 °С |
| Fire protection | IEC 61386.1 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
