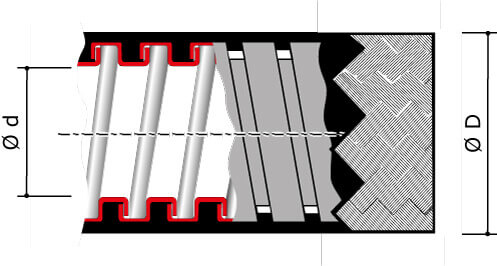

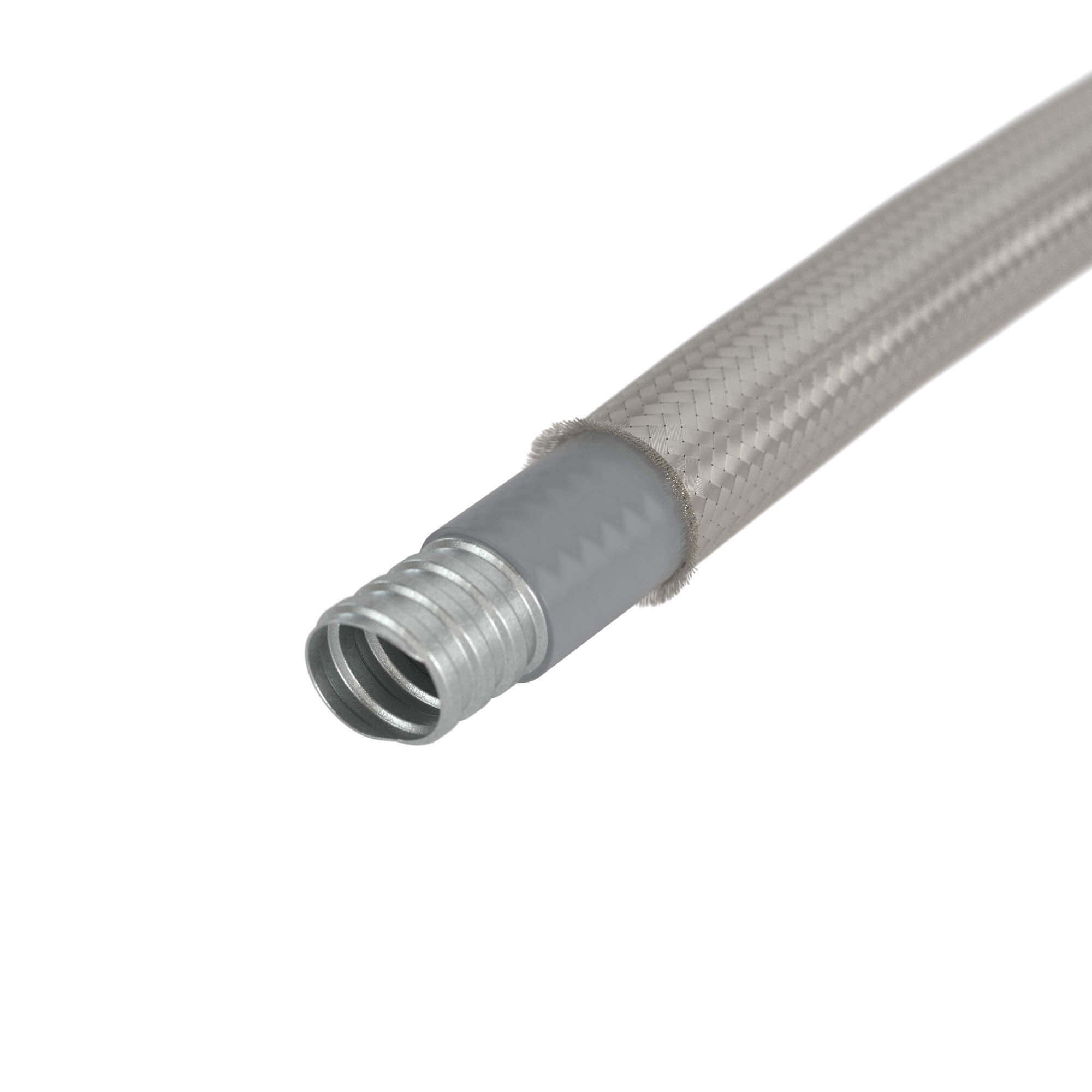

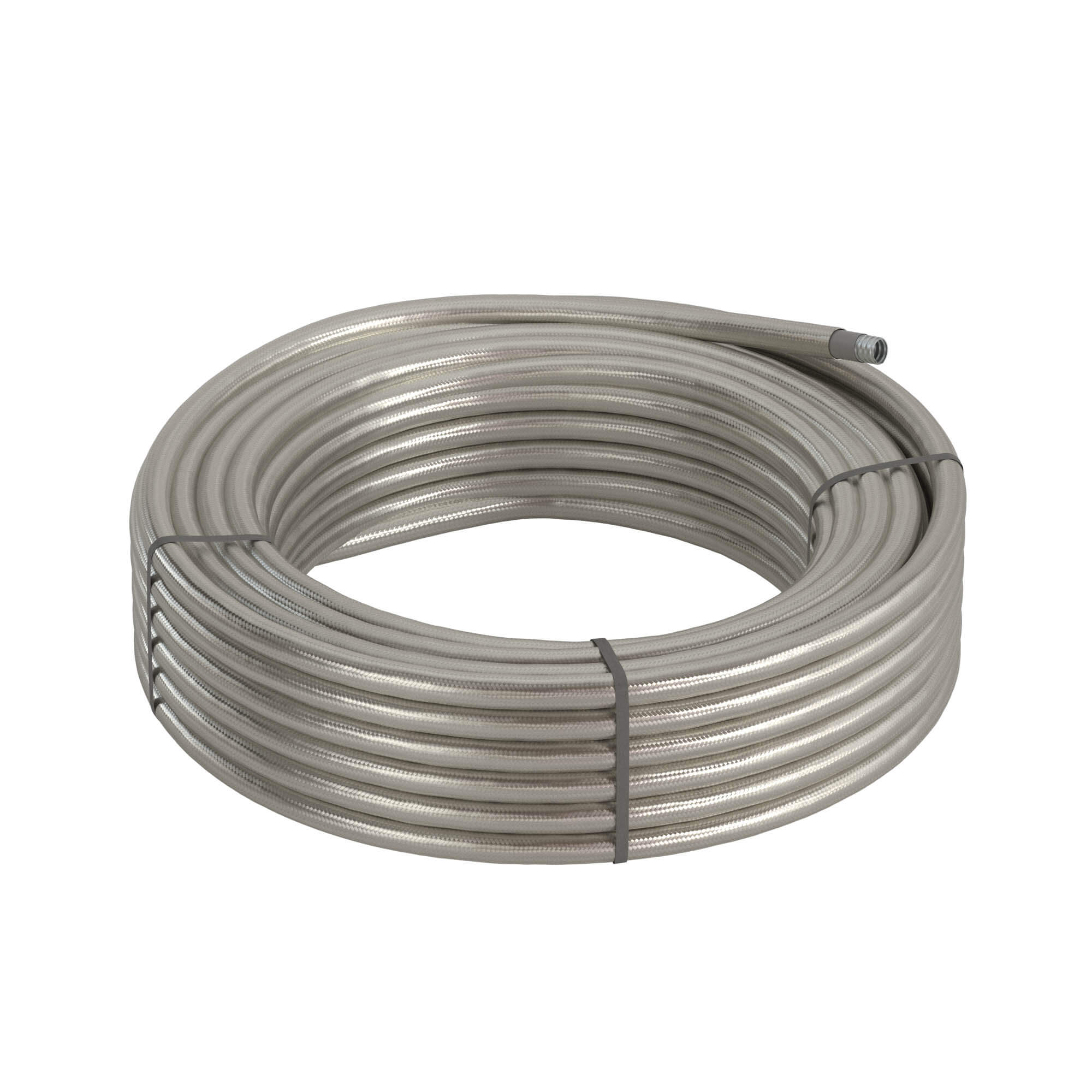

Flexible metal conduit in smooth EVA coating DN 20 mm with stainlesssteel banding, øin 20,5 mm, øex 27,0, IP66, 50 m
Code:
607ETX022
Code:
607ETX022
| Colour | Grey |
| Outer diameter, mm | 29 |
| Inner diameter, mm | 20.5 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -25...70 |
| Material | Steel |
| Tensile strength, N | 1000 |
| Nominal diameter, mm | 20 |
| Degree of protection (IP) | IP66 |
| Bending strength | Flexible |
| Sheathing material 2nd coating (exterior) | Stainless steel wire |
| With draw wire | No |
| Product type | Metal flexible conduits in EVA coating and stainless steel |
| Material | PVC |
| Length, mm | 50000 |
| Temperature of mounting, °C | -25 ... +70 °С |
| Ingress Protection rating, IP | IP66/IP67 |
| Temperature of operation, °C | from -25 to +70 °С |
| Shock resistance, J | >6 at -25°С |
| Fire protection | Flame retardant (GOST R 53313-2009), low smoke (LS), low emission (LT), halogen-free (HF) |
| Length | 50 m |
