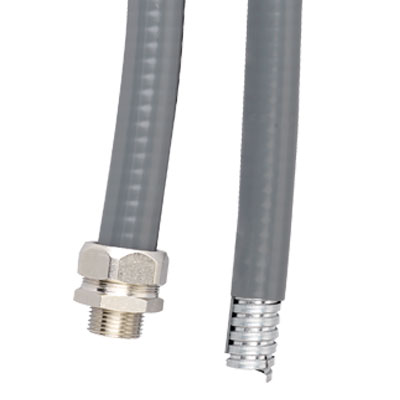

Flexible metal conduit in smooth EVA coating DN 35 mm, Øin 35,0 mm, Øex 43,0 mm, IP66, 25m, grey color
Code:
607E038
Code:
607E038
| Colour | Grey |

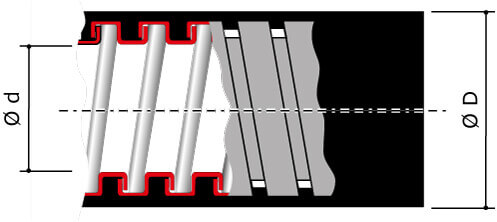

| Outer diameter, mm | 43 |
| Inner diameter, mm | 35 |
| Compressive strength, N | 750 |
| Operational temperature, °C | -25...70 |
| Material | Steel |
| Tensile strength, N | 1000 |
| Nominal diameter, mm | 35 |
| Degree of protection (IP) | IP66 |
| Bending strength | Flexible |
| Sheathing material 2nd coating (exterior) | EVA |
| With draw wire | No |
| Color | gray |
| Product type | Metal flexible conduits in smooth EVA coating |
| Material | PVC |
| Length, mm | 25000 |
| Temperature of mounting, °C | -25 ... +70 °С |
| Ingress Protection rating, IP | IP66/IP67 |
| Temperature of operation, °C | from -25 to +70 °С |
| Shock resistance, J | >6 at -25°С |
| Fire protection | Flame retardant (GOST R 53313-2009), low smoke (LS), low emission (LT), halogen-free (HF) |
| Length | 25m |
