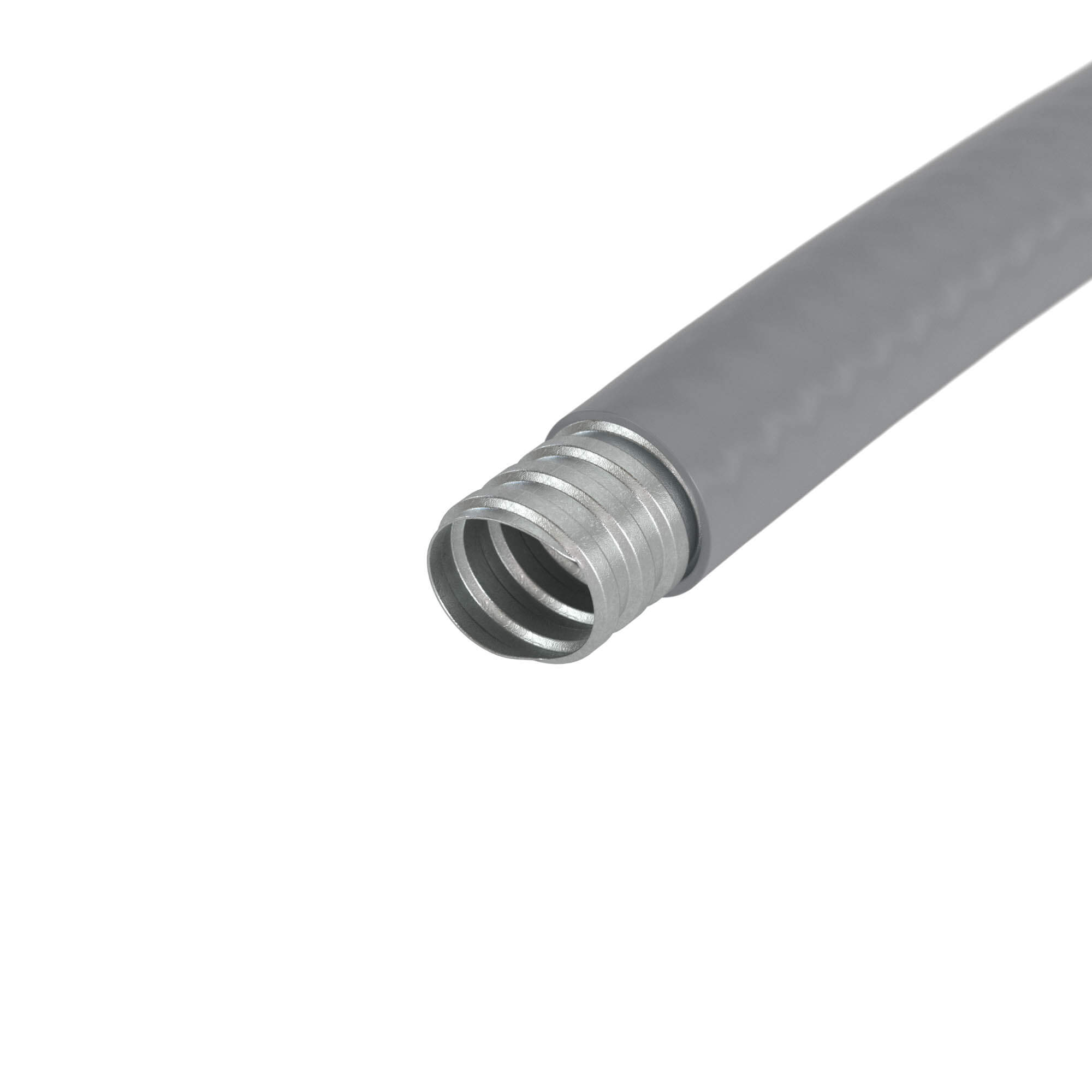

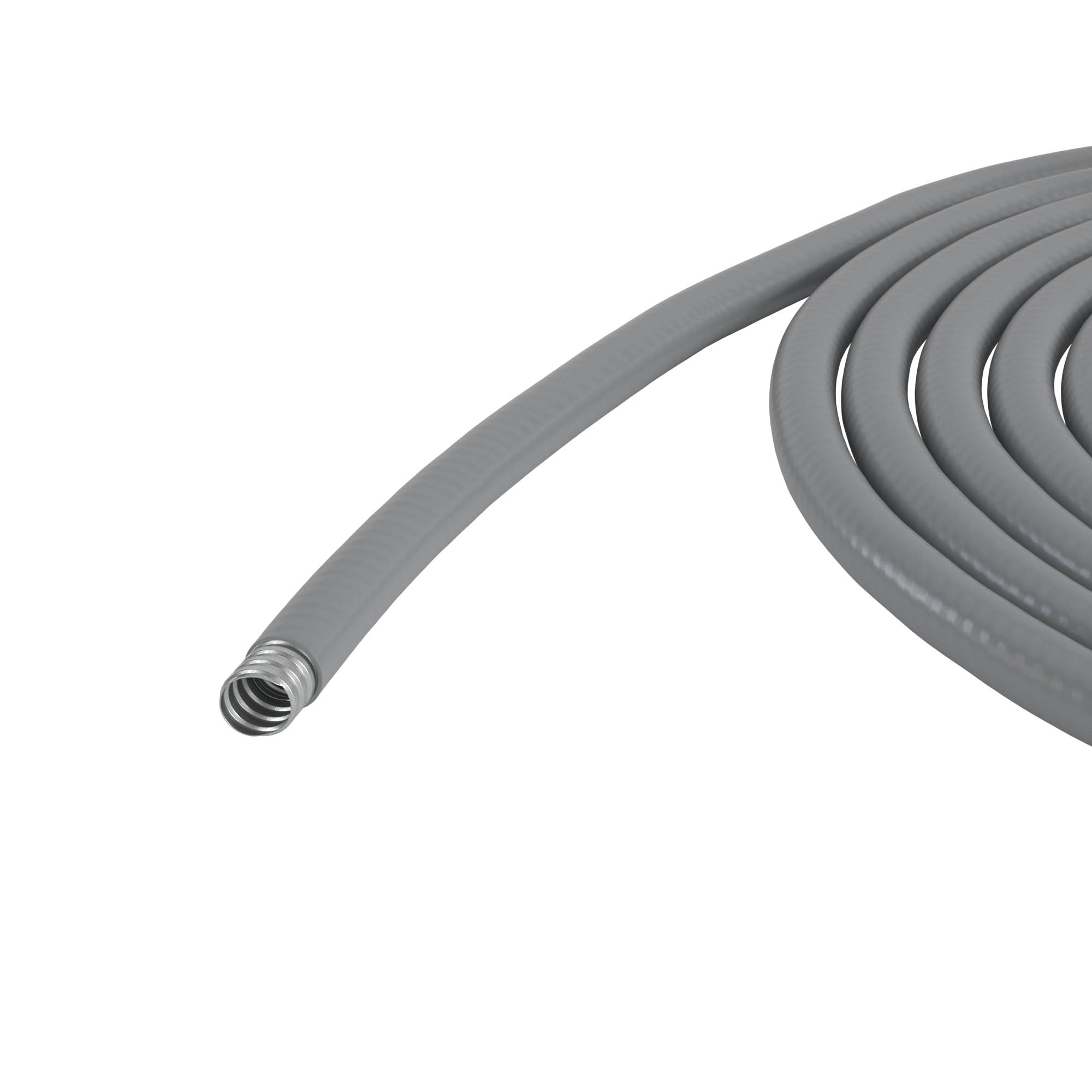

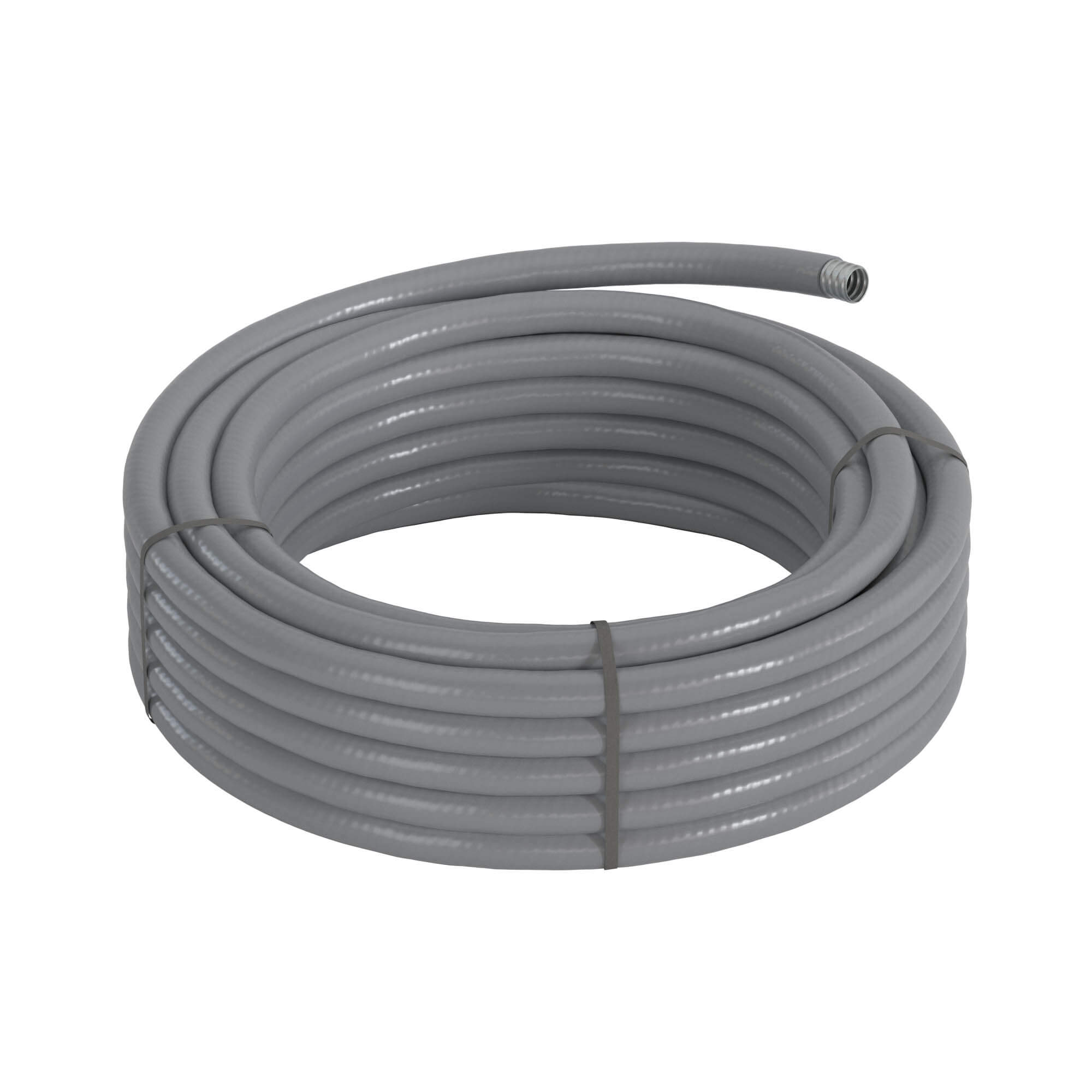

Flexible metal conduit in smooth EVA coating DN 26 mm, Øin 26,5 mm, Øex 34,0 mm, IP66, 25m, grey color
Code: 607E032
Flexible metal conduit in smooth EVA coating DN 26 mm, Øin 26,5 mm, Øex 34,0 mm, IP66, 25m, grey color
Code: 607E032
| Colour | Grey |

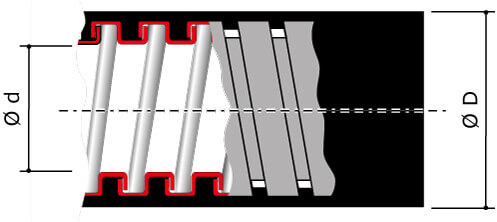

| Outer diameter, mm | 34 |
| Inner diameter, mm | 26.5 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -25…70 |
| Flame accelerating | Yes |
| Material | Steel |
| Tensile strength, N | 1000 |
| Nominal diameter, mm | 26 |
| Degree of protection (IP) | IP67 |
| Bending strength | Flexible |
| Color | gray |
| Product type | Metal flexible conduits in smooth EVA coating |
| Material | PVC |
| Length, mm | 25000 |
| Temperature of mounting, °C | -25 ... +70 °С |
| Ingress Protection rating, IP | IP66/IP67 |
| Temperature of operation, °C | from -25 to +70 °С |
| Shock resistance, J | >6 at -25°С |
| Fire protection | Flame retardant (GOST R 53313-2009), low smoke (LS), low emission (LT), halogen-free (HF) |
