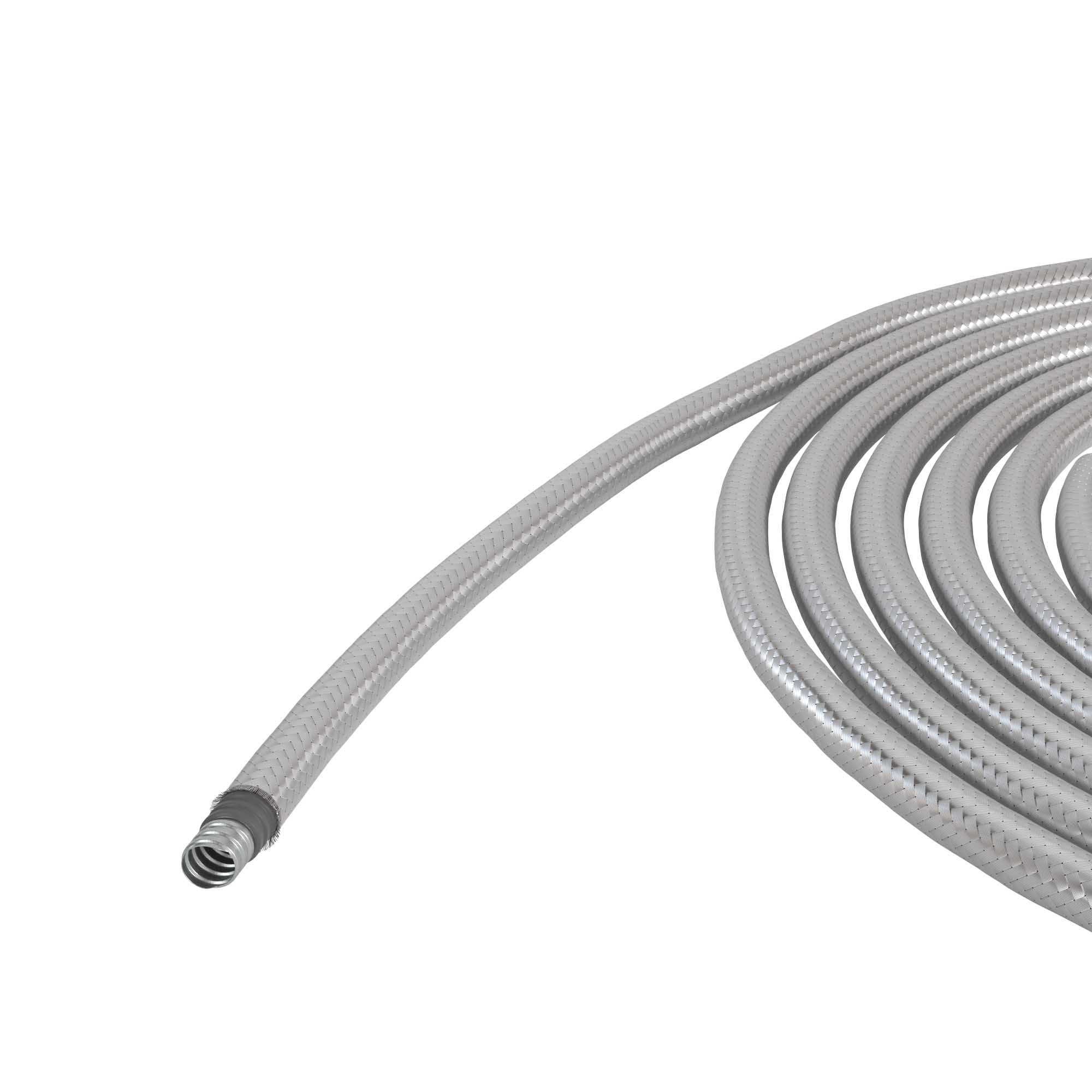

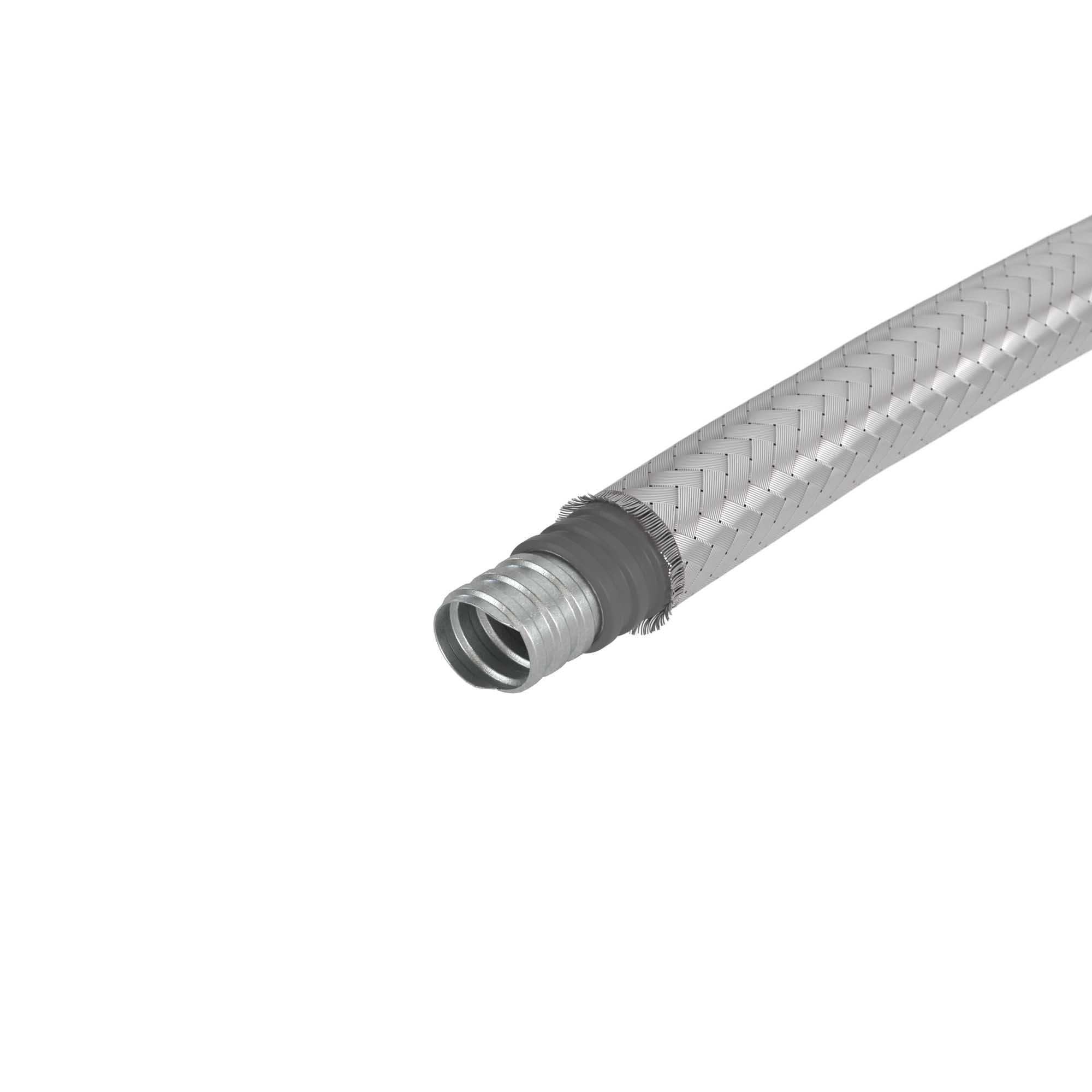

Flexible metal conduit in PVC coating DN 50 mm with galvanised steel braid, ?in 50,5 mm, ?ex 57,0 mm, 25m
Code:
6071TX-050
Code:
6071TX-050
| Colour | Grey |
| Outer diameter, mm | 57 |
| Inner diameter, mm | 50.5 |
| Compressive strength, N | 750 |
| Operational temperature, °C | -45...70 |
| Sealing | No sealing |
| Suited for EX-applications | No |
| Material | Steel |
| Tensile strength, N | 1000 |
| Sheathing material 1st coating | Polyvinyl chloride (PVC) |
| Sheathing material 2nd coating (exterior) | Stainless steel wire |
| Nominal diameter, mm | 50 |
| Degree of protection (IP) | IP44 |
| Bending strength | Flexible |
| With draw wire | No |
| Product type | Flexible galvanized steel metal conduit in sealed PVC insulation in a stainless steel braid |
| Material | Galvanized steel |
| Shell material | PVC |
| Material of the braid | Stainless steel |
| Color | gray |
| Length | 25m |
| -5°С ... +60°С | -45 ... +70 °С |
| от -25°С до +60°С | -45 ... +70 °С |
| Degree of protection | IP44 |
| Impact strength | >6 J at -15 °С |
| Fire protection | IEC 53313 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
