Code:
6071T-010
Code:
6071T-010
| Colour | Grey |

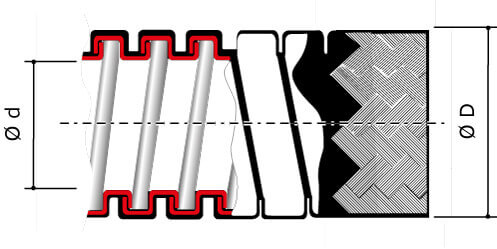

| Outer diameter, mm | 16 |
| Inner diameter, mm | 10 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -15...70 |
| Material | Steel |
| Tensile strength, N | 500 |
| Nominal diameter, mm | 10 |
| Degree of protection (IP) | IP44 |
| Bending strength | Flexible |
| Sheathing material 1st coating | Polyvinyl chloride (PVC) |
| Sheathing material 2nd coating (exterior) | Steel wire, galvanized |
| With draw wire | No |

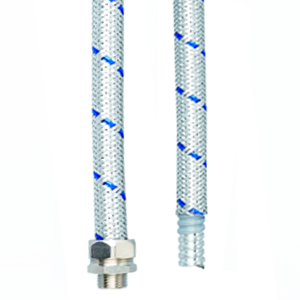

| Product type | Metal flexible conduits in vacuum PVC coating and protected by galvanized steel braid |
| Material | PVC |
| Length, mm | 50000 |
| Temperature of mounting, °C | -15 ... +70 °С |
| Ingress Protection rating, IP | IP44, IP66/IP67 ( c доп. аксессуарами 66BTP) |
| Temperature of operation, °C | from -15 to +70 °С |
| Shock resistance, J | >6 at -15°С |
| Fire protection | Flame retardant (GOST R 53313-2009) |
| Length | 50 m |
