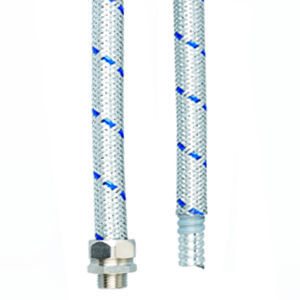

Flexible metal conduit in PVC coating DN 12 mm protected by galvanisedsteel braid, øin 12,0 mm, øex 16,0 mm, 50m
Code: 6071T-012
Flexible metal conduit in PVC coating DN 12 mm protected by galvanisedsteel braid, øin 12,0 mm, øex 16,0 mm, 50m
Code: 6071T-012
| Colour | Grey |
| Outer diameter, mm | 18 |
| Inner diameter, mm | 12 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -15…70 |
| Flame accelerating | Yes |
| Material | Steel |
| Tensile strength, N | 500 |
| Nominal diameter, mm | 12 |
| Degree of protection (IP) | IP67 |
| Bending strength | Flexible |
| Sheathing material 1st coating | Polyvinyl chloride (PVC) |
| Sheathing material 2nd coating (exterior) | Steel wire, galvanized |
| Product type | Metal flexible conduits in vacuum PVC coating and protected by galvanized steel braid |
| Material | PVC |
| Length, mm | 50000 |
| Temperature of mounting, °C | -15 ... +70 °С |
| Ingress Protection rating, IP | IP44, IP66/IP67 ( c доп. аксессуарами 66BTP) |
| Temperature of operation, °C | from -15 to +70 °С |
| Shock resistance, J | >6 at -15°С |
| Fire protection | Flame retardant (GOST R 53313-2009) |
