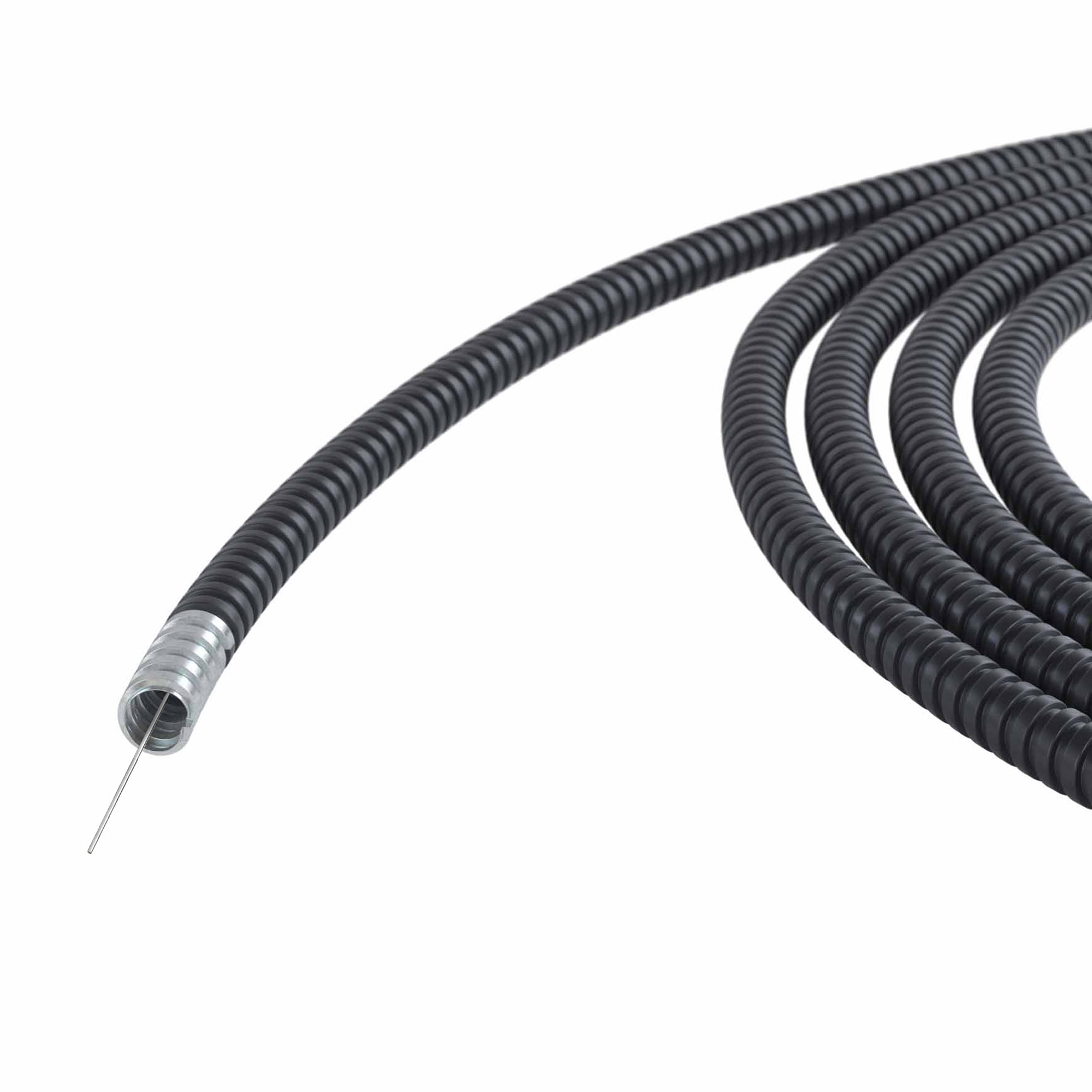

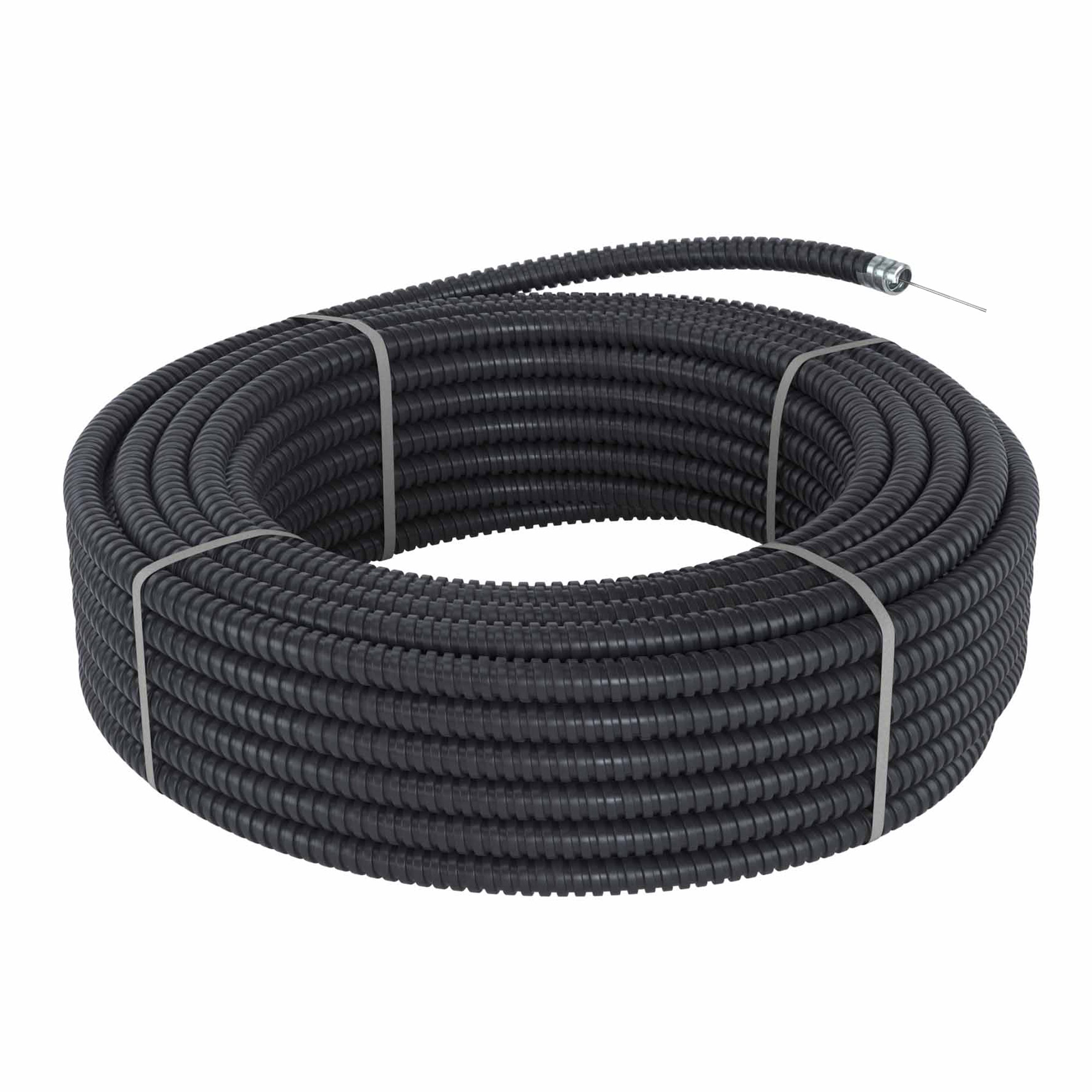

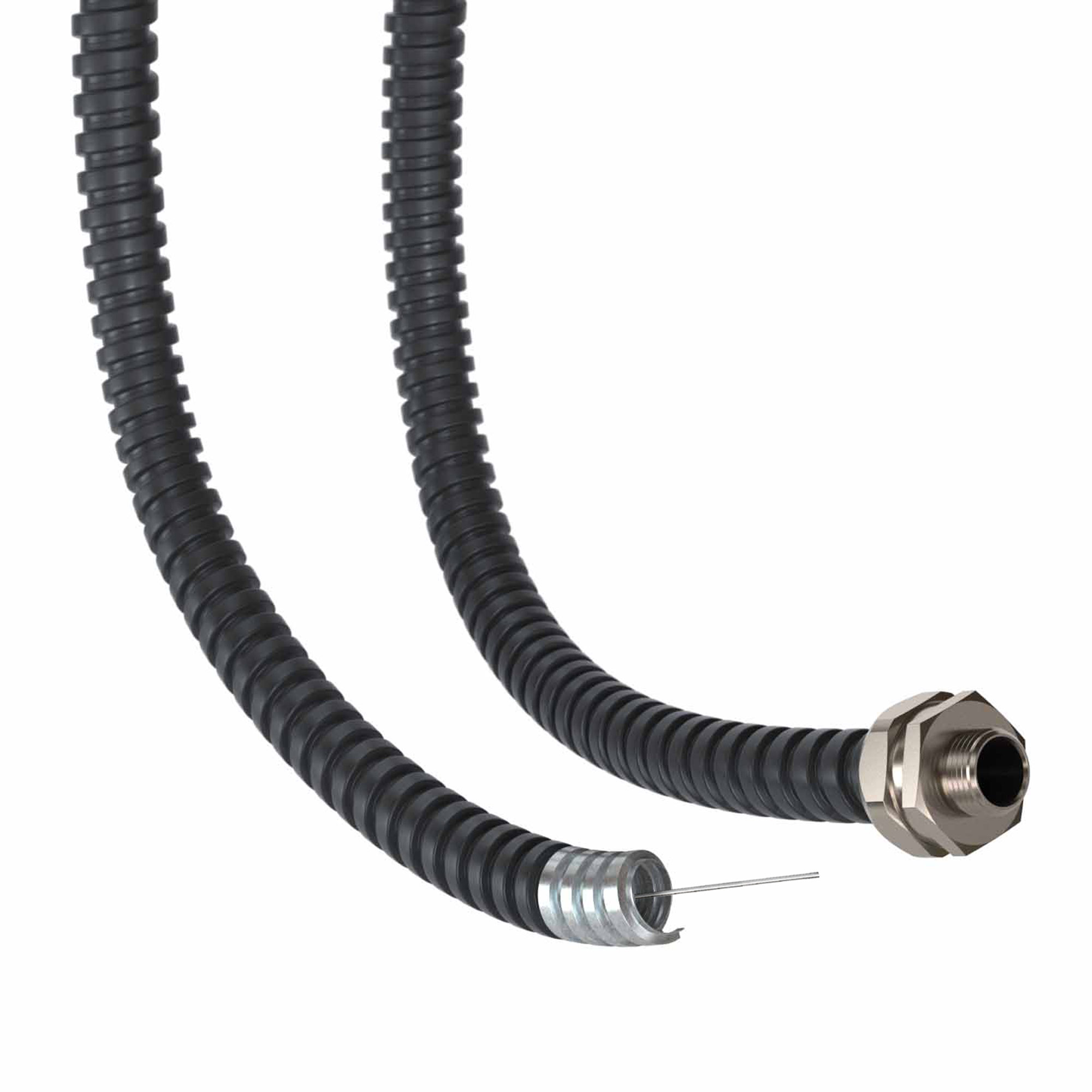

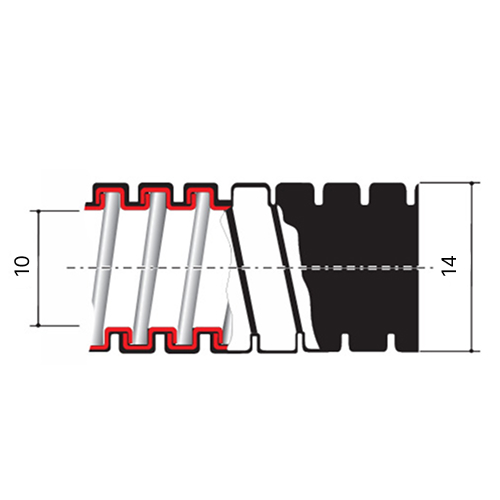

Flexible metal conduit with vacuum PVC coating DN 10 mm, Øin 10 mm ,Øex 14 mm, with pull, 100m, black
Code:
6071R-010N100P
Code:
6071R-010N100P
| Operational temperature, °C | -45...70 |
| Material | Steel |
| Tensile strength, N | 500 |
| Sheathing material 2nd coating (exterior) | Polyvinyl chloride (PVC) |
| Nominal diameter, mm | 10 |
| Bending strength | Flexible |
| Degree of protection (IP) | IP44 |
| With draw wire | Yes |
| Product type | Metal flexible conduits with vacuum PVC coating |
| Material | Galvanized steel |
| Shell material | PVC |
| Color | Black |
| Length | 100 m |
| -5°С ... +60°С | -45 ... +70 °С |
| от -25°С до +60°С | -45 ... +70 °С |
| Degree of protection | IP44 |
| Impact strength | >1 J at -45 °С |
| Fire protection | IEC 53313 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
