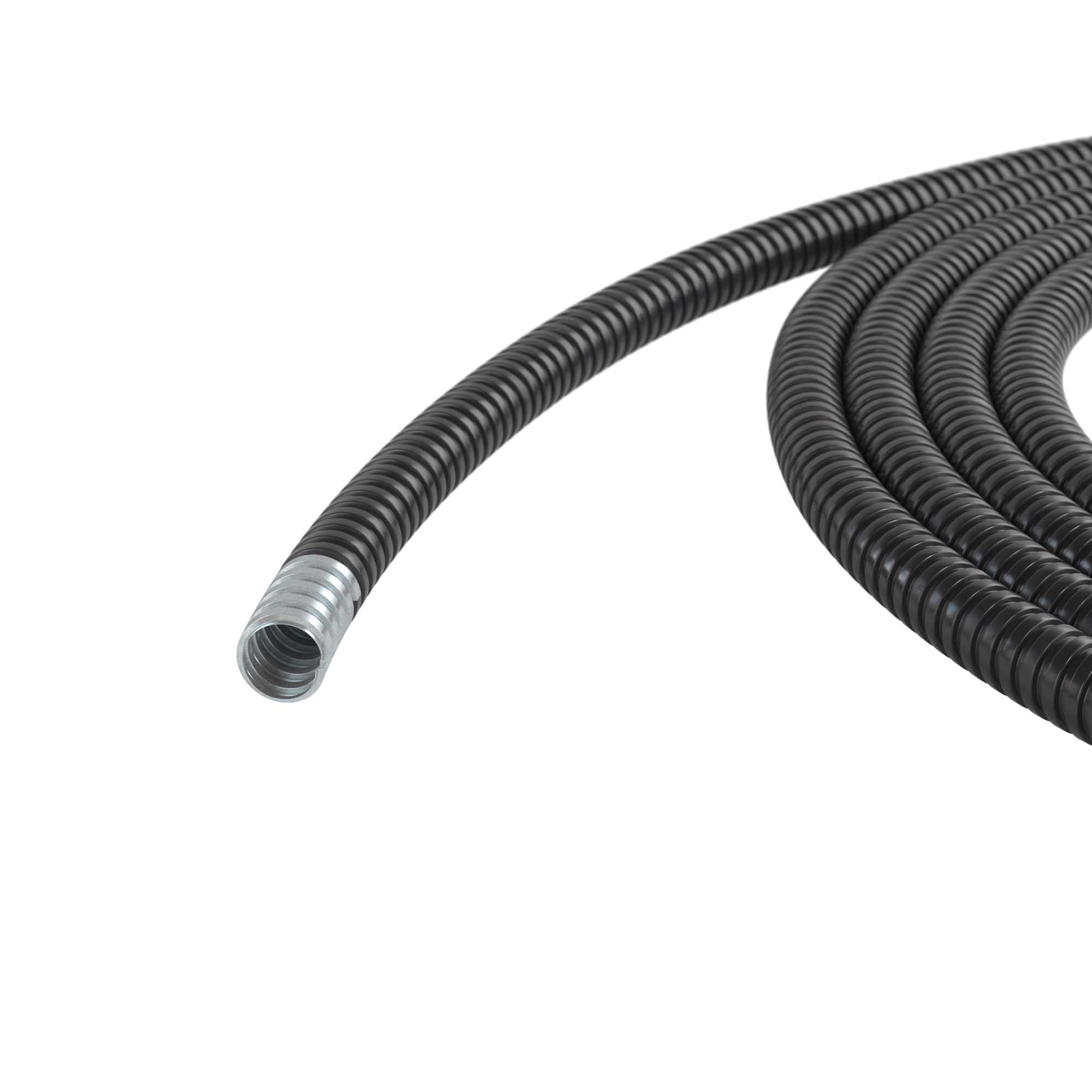

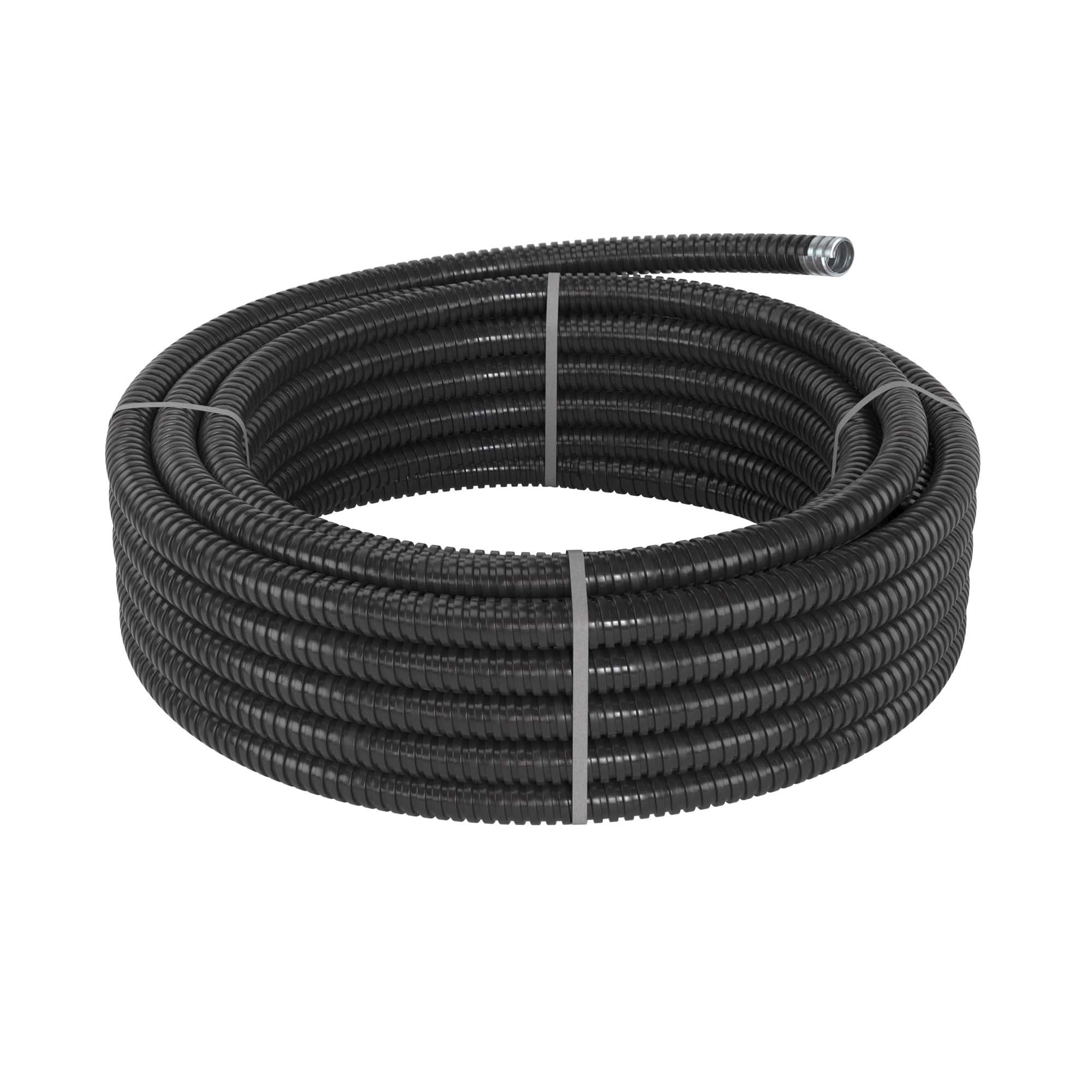

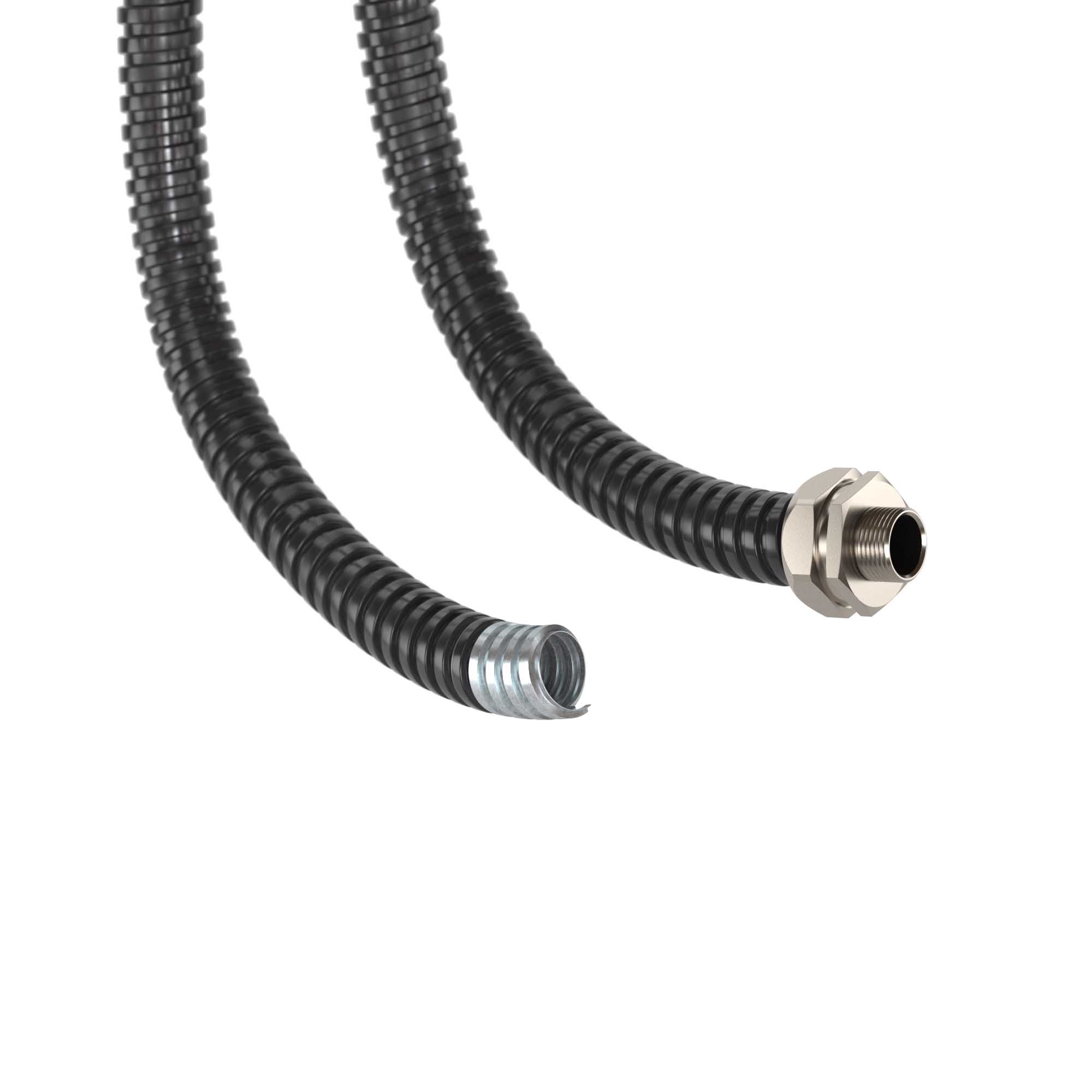

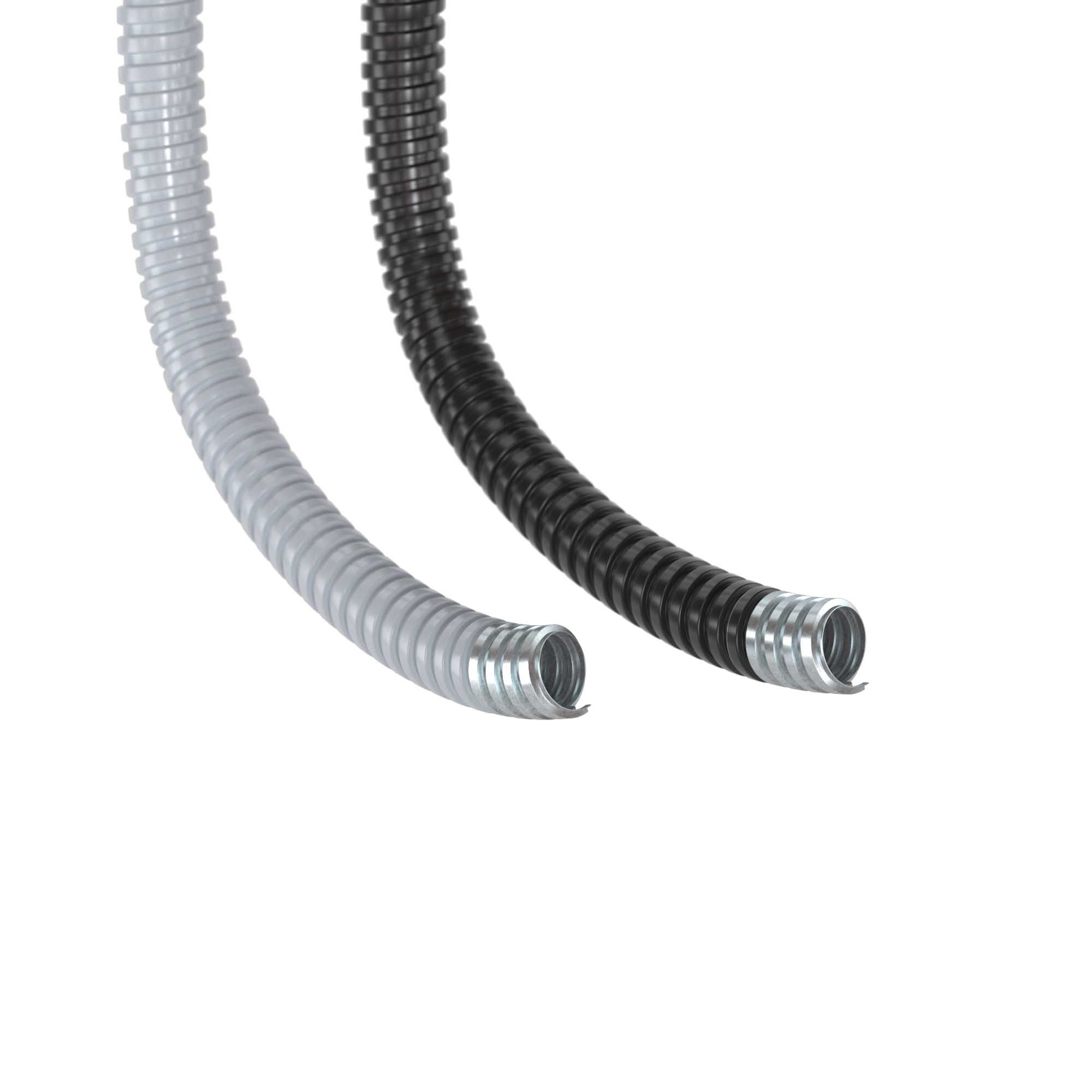

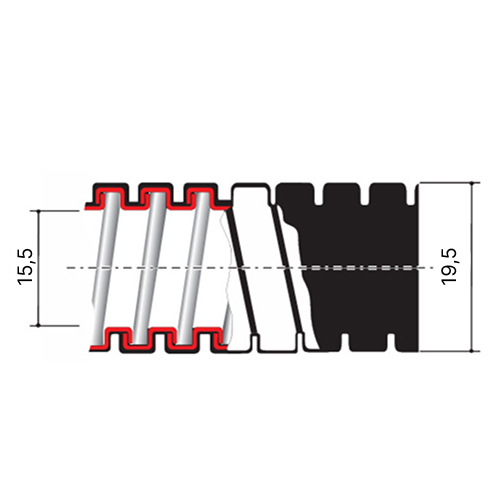

Flexible metal conduit in PVC coating DN 15 mm, Øin 15,5 mm, Øex 19,5 mm, 50m, black color
Code:
6071R-015N
Code:
6071R-015N
| Colour | Black |
| Outer diameter, mm | 19.5 |
| Inner diameter, mm | 15.5 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -45...70 |
| Material | Steel |
| Tensile strength, N | 500 |
| Nominal diameter, mm | 15 |
| Degree of protection (IP) | IP44 |
| Bending strength | Flexible |
| Sheathing material 2nd coating (exterior) | Polyvinyl chloride (PVC) |
| With draw wire | No |
| Color | Black |
| Product type | Metal flexible conduits with vacuum PVC coating |
| Material | PVC |
| -5°С ... +60°С | -45...70 |
| Ingress Protection rating, IP | IP44/IP66/IP67 |
| от -25°С до +60°С | -45...70 |
| Shock resistance, J | >2 at -15°С |
| Fire protection | GOST Р 53313 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
| Length | 50 m |
