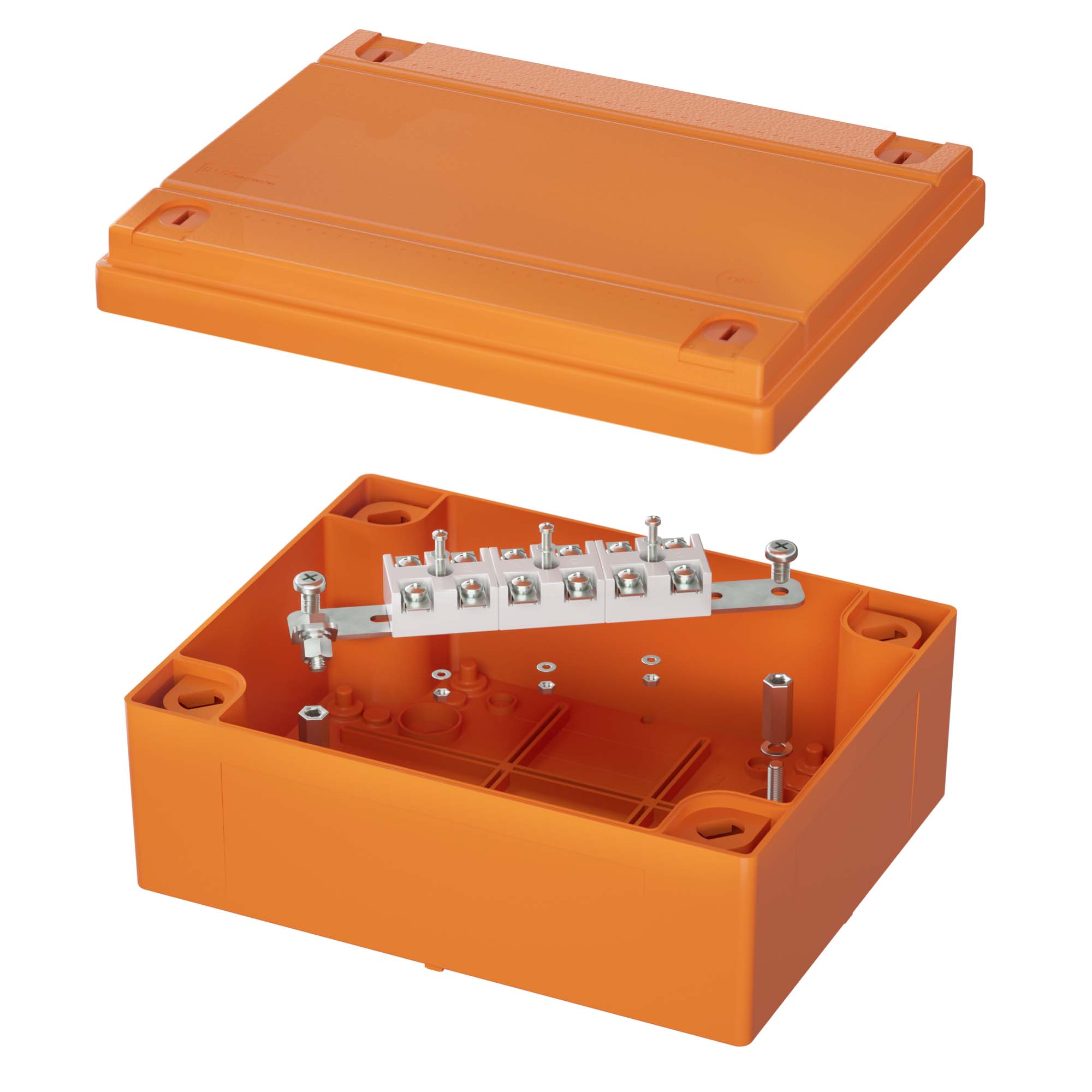

FS FireBox 240х190х90 mm, IP56, smooth walls, plastic, 6p, 450V, 32A, 10 mm2
Code: FSK40610
FS FireBox 240х190х90 mm, IP56, smooth walls, plastic, 6p, 450V, 32A, 10 mm2
Code: FSK40610
| Mounting method | Universal |
| Colour | Orange |
| Width, mm | 190 |
| Depth, mm | 90 |
| Surface protection | Untreated |
| Rated insulation voltage Ui, V | 450 |
| Length, mm | 240 |
| Sealable | Yes |
| Material | Plastic |
| Explosion-tested version | Yes |
| Cover attachment | Screwed |
| Max. conductor cross section, mm² | 10 |
| With screening | Yes |
| Weatherproof | Yes |
| Degree of protection (IP) | IP56 |
| Inlet from the rear | Yes |
| For Ex-zone gas | None |
| Tackable | Yes |
| For Ex-Zone dust | None |
| Shape | Rectangular |
| Type of housing feed-through | Thread |
| Equipped with | Mounting plate |
| Number of inlets | 8 |
| Circuit integrity | None |
| Operational temperature, °C | -25...60 |
| Material | Special thermoplastic |
| Q'ty of poles | 6p |
| Wire cross section | 0,5–10,0 sq. mm |
| Availability of cable entries | No |
| Diameter of the inputs | 32 mm |
| Q'ty of inners | 10 pcs |
| Current | 32А |
| от -25°С до +60°С | From - 25 to +60 |
| Degree of protection | IP56 |
| Functionality | 90 min |
