| Model | Other |
| Adjustable | No |
| Type of fastening | Screw |
| Number of usable covers | 2 |
| Number of partitions | 2…3 |
| Cover width, mm | 60 |
| Column height, mm | 350 |
| Material installation column | Aluminium |
| Material cover | Aluminium |
| Ceiling mounting | No |
| Pillar shape | Rectangular |
| Colour cover | Other |
| Colour column | Other |
| Prewired | No |
| Material installation column halogen free | Yes |
| Material cover halogen free | Yes |
| Material quality installation column | Other |
| RAL-number column | 9005 |
| Colour | Black |
| Color | black |
| Material | Aluminium |

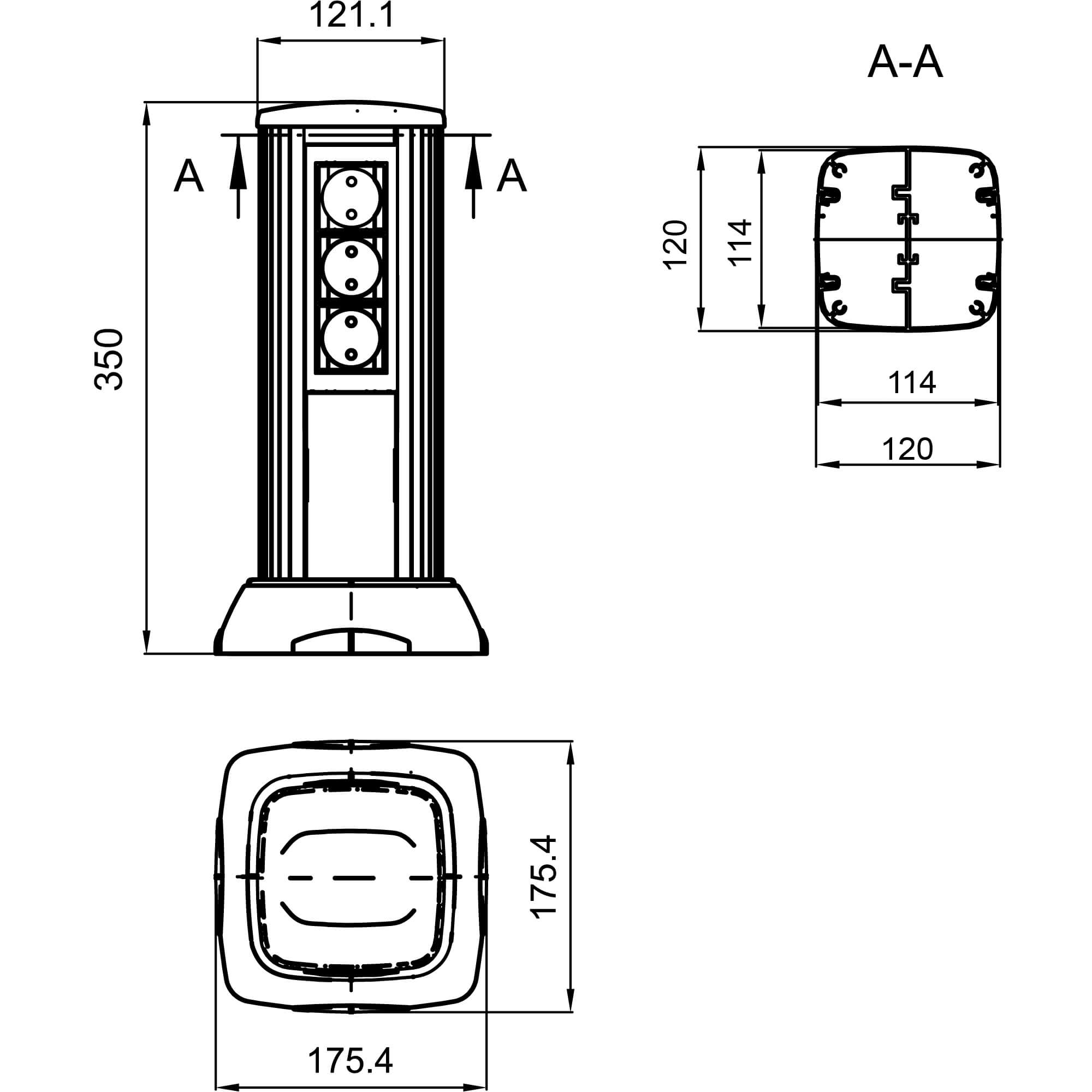

| Height, mm | 350 |
| Width, mm | 173х173 |
| Width (nominal), mm | 120х120 |
| Ingress Protection rating, IP | IP40 |
| Average filled area, sq.mm | 4905+4905 |
| Summarized profile area (max), sq.mm | 9810 |
| Temperature of operation, °C | +60°C |
| Shock resistance, J | 20 |
| Climate version | UHL4 |
| Q'ty of bays | 2 |
| Height (nominal), mm | 350 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |

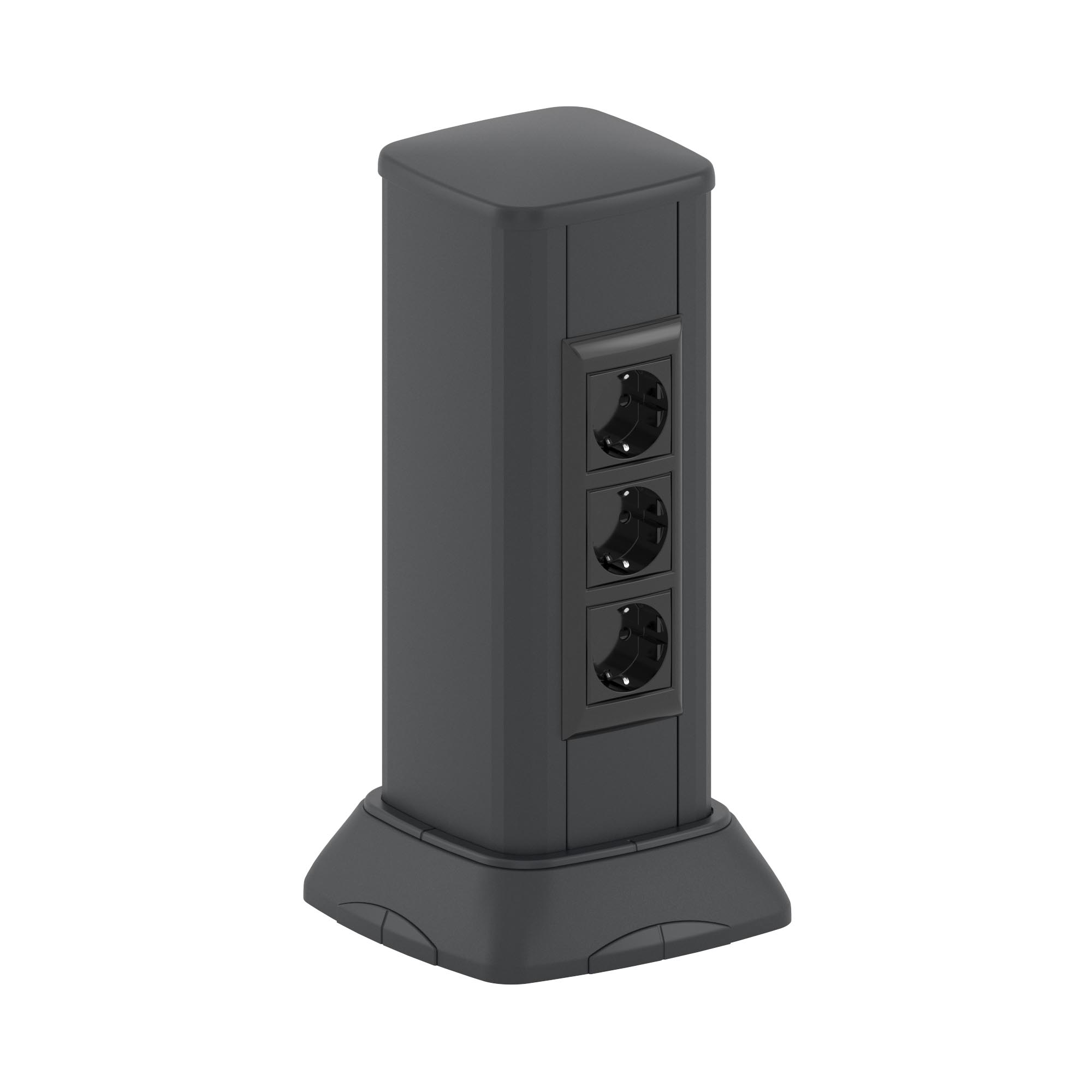

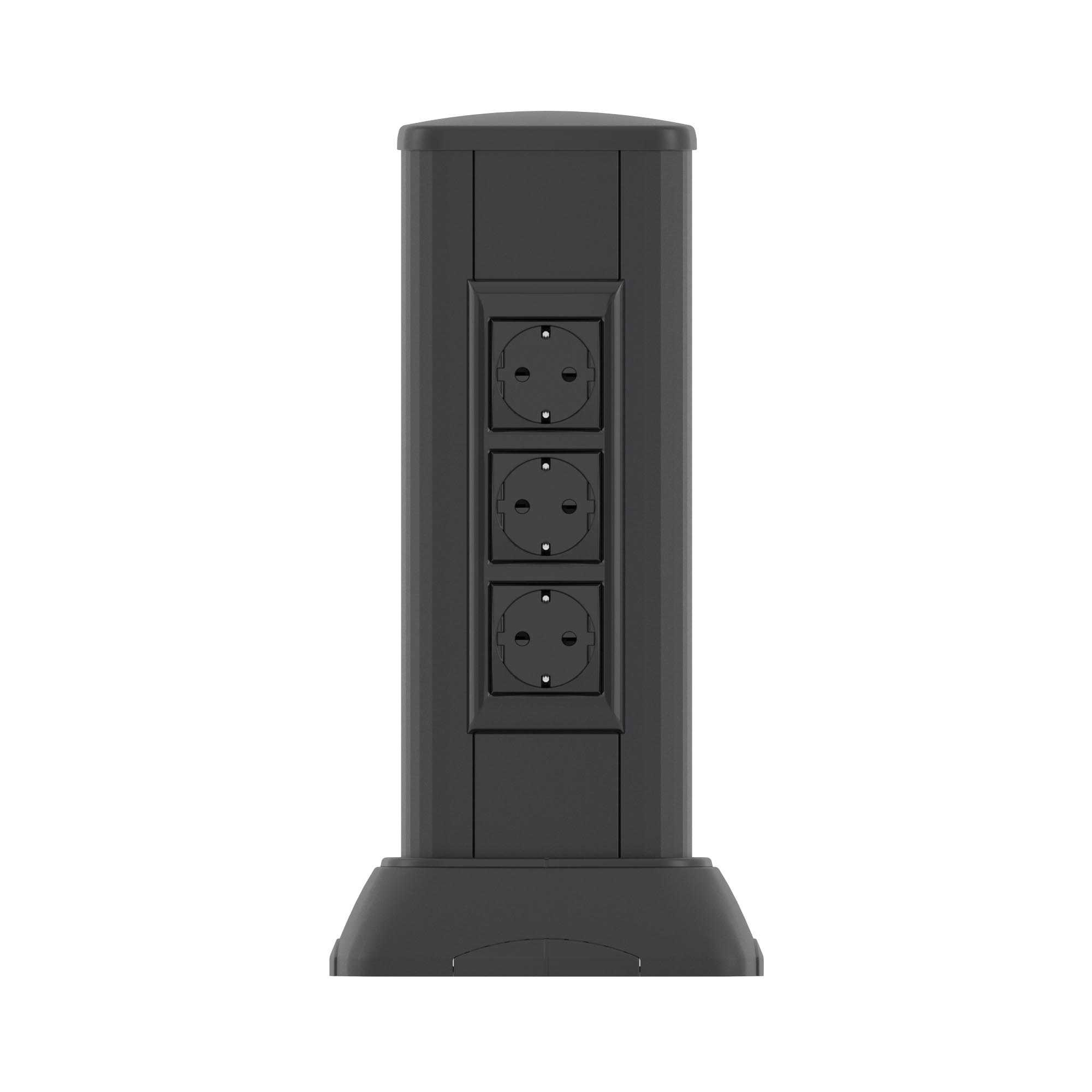

| Product type | Minicolumn |
