Latched, flush push button with lens cap
Code: ABDLM1
Latched, flush push button with lens cap
Code: ABDLM1
Hole diameter, mm | 22.5 |
Number of switch positions | 1 |
Suitable for illumination | No |
Number of command positions | 1 |
Unlocking method | None |
Spring-return | Yes |
Suitable for emergency stop | No |
Type of button | High |
Width opening, mm | 22.5 |
Height opening, mm | 22.5 |
With front ring | Yes |
Switching function latching | Yes |
Colour front ring | Black |
Material front ring | Plastic |
Construction type lens | Round |
Colour button | Red |
Degree of protection (IP), front side | IP65 |
With protection cover | No |
Labelled | No |
Product type | Control buttons and light-signaling fittings |

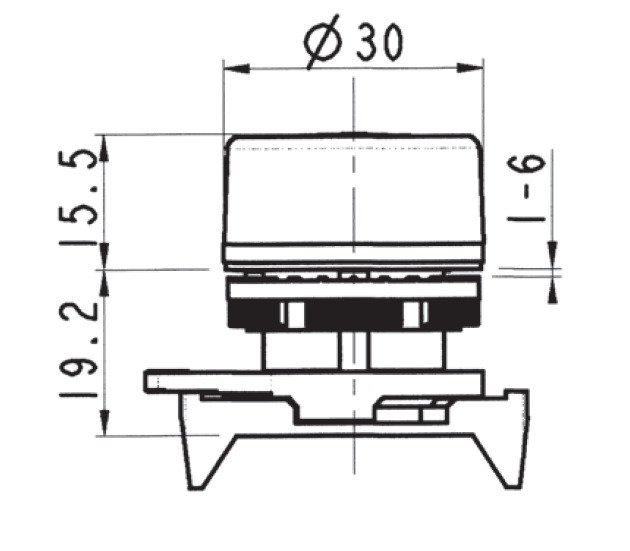

Drawings
Seria | Name | DWG |
---|---|---|
Buttons and switches - "Quadro"
|
