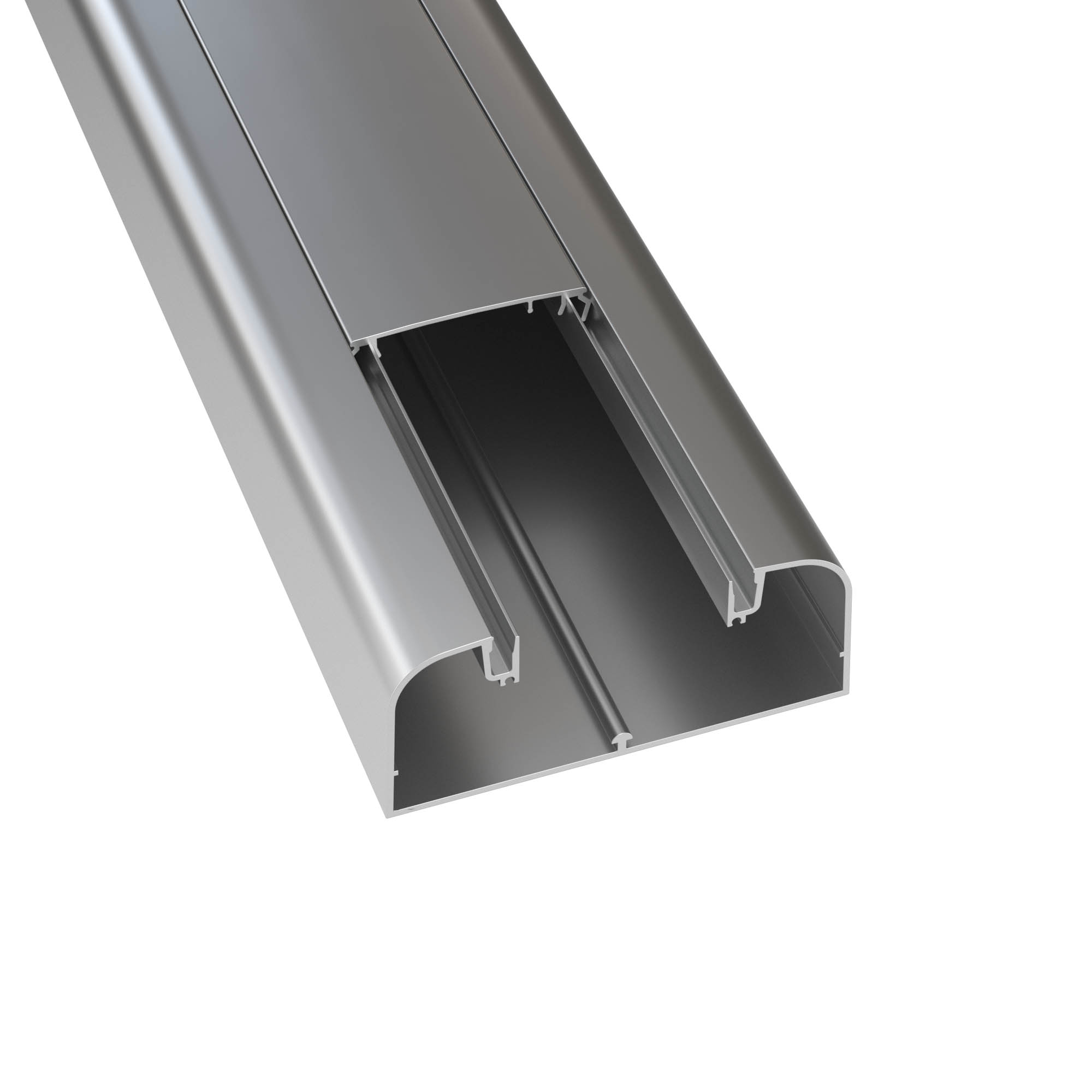

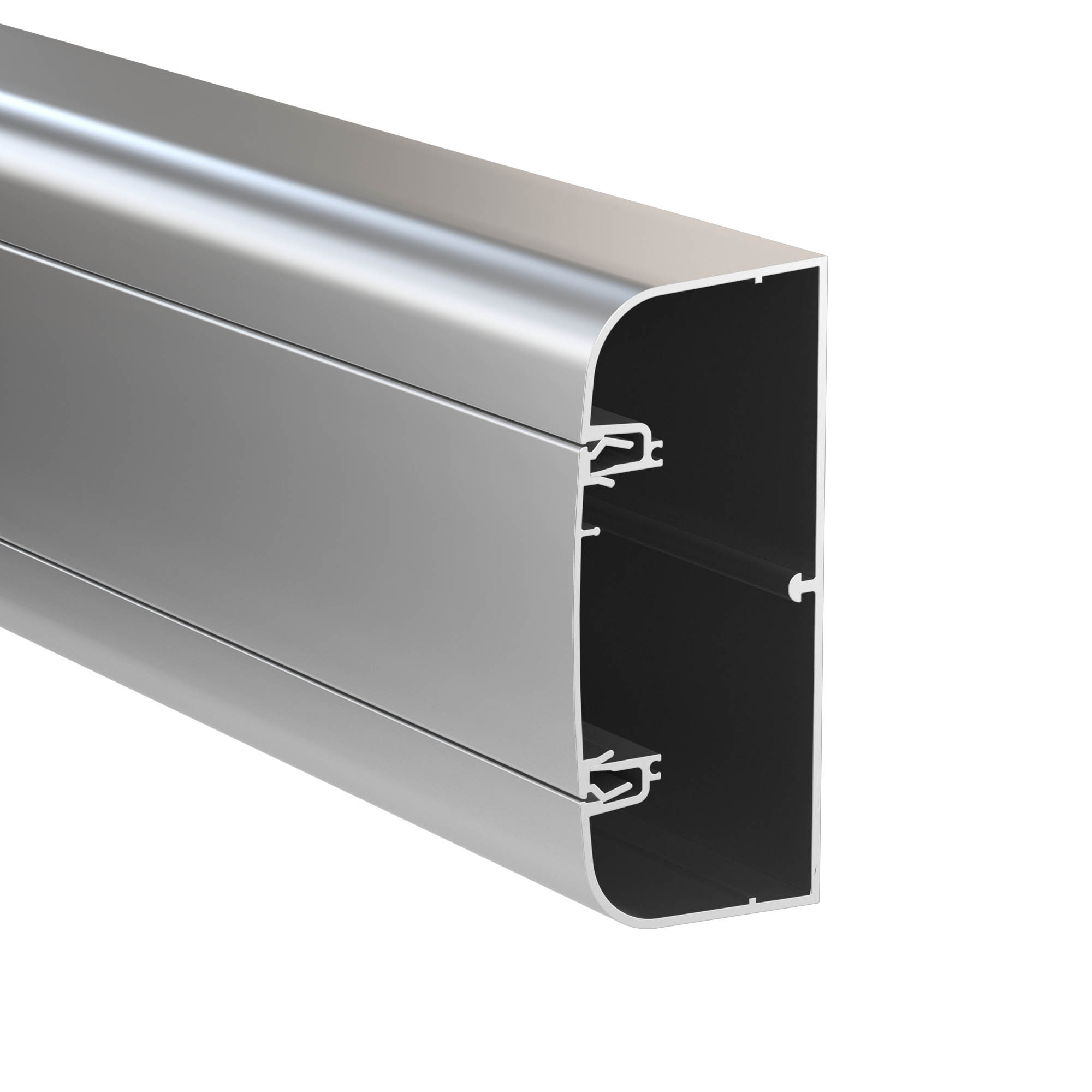

Cable trunking 110x50 mm with cover, aluminum, silver gray

Code: 01199
Cable trunking 110x50 mm with cover, aluminum, silver gray
  • To ask a question
Colour Silver
Width, mm 110
Halogen free Yes
Depth, mm 50
Surface protection Other
Material quality Other
Length, mm 2000
Material Aluminium
Mounting method covers Inner lying
Number of covers 1
Number of plug-in partitions 1
Mounting perforation in bottom No
With cable fixing clip No
With duct connector No
Useful cross section, mm² 4427
Cover width 1, mm 110
Protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Color gray
Material Aluminium
Width (nominal), mm 110
Ingress Protection rating, IP IP40
Average filled area, 4427
Summarized profile area (max), 4427
Temperature of operation, °C +60°C
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 50
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Self-glueing base false
Product type Cable duct
