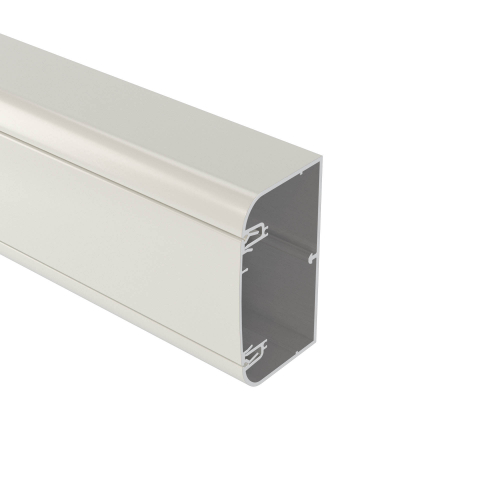

Cable trunking 90x50 mm with cover, aluminum, white

Code: 19599
Colour Clear white
Width, mm 90
Halogen free Yes
Depth, mm 50
Surface protection Other
Material quality Other
Length, mm 2000
Material Aluminium
Mounting method covers Inner lying
Number of covers 1
Number of plug-in partitions 1
Mounting perforation in bottom No
With cable fixing clip No
With duct connector No
Useful cross section, mm² 3682
Cover width 1, mm 90
Protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Color white, RAL 9016
Raw material Aluminum
Width (nominal), mm 90
Ingress Protection rating, IP IP40
Average filled area, sq.mm 3682
Summarized profile area (max), sq.mm 3682
Temperature of operation, °C +60°C
Shock resistance, J 20
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 50
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Self-glueing base false
Type Cable duct
