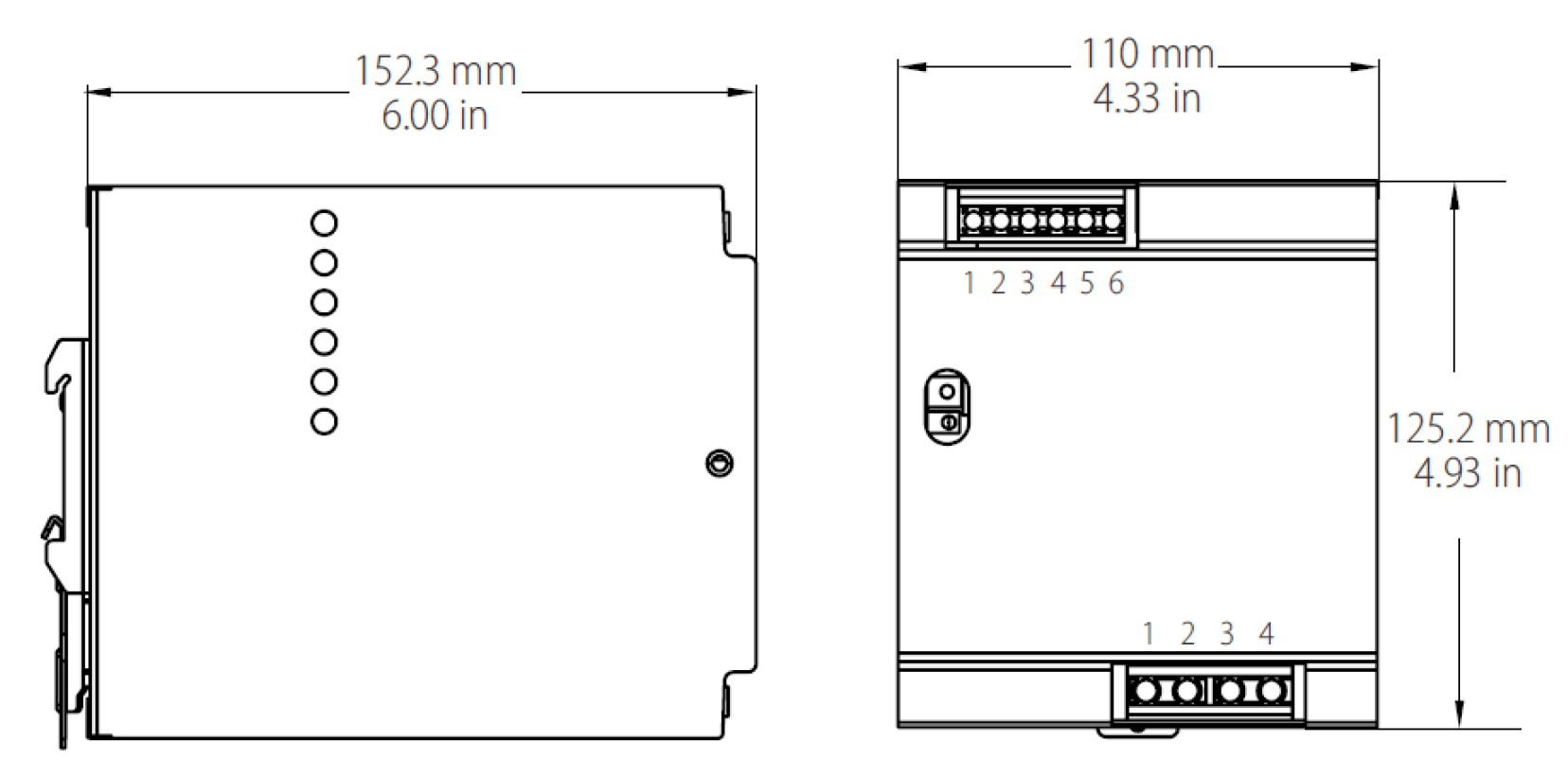

| Width, mm | 110 |
| Height, mm | 125 |
| Depth, mm | 152 |
| Power consumption, VA | 1090 |
| Modular version | No |
| Width in number of modular spacings | 6 |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 960 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| 1st secondary output voltage, V | 24...28 |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 50 Hz, V | 340...550 |
| Rated supply voltage at DC, V | 480...780 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 40 |
| Nominal value output voltage 1, V | 24 |
| Nominal value output current 1, A | 40 |
| Number of phases | 3 |
| Built-in Oring diode | No |
| Type of product | Power supply |
| Honest SIGN system. Commodity group | Radio‑electronic products |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.11.50.120 |
| Commodity Nomenclature of Foreign Economic Activity | 8504409100 |
