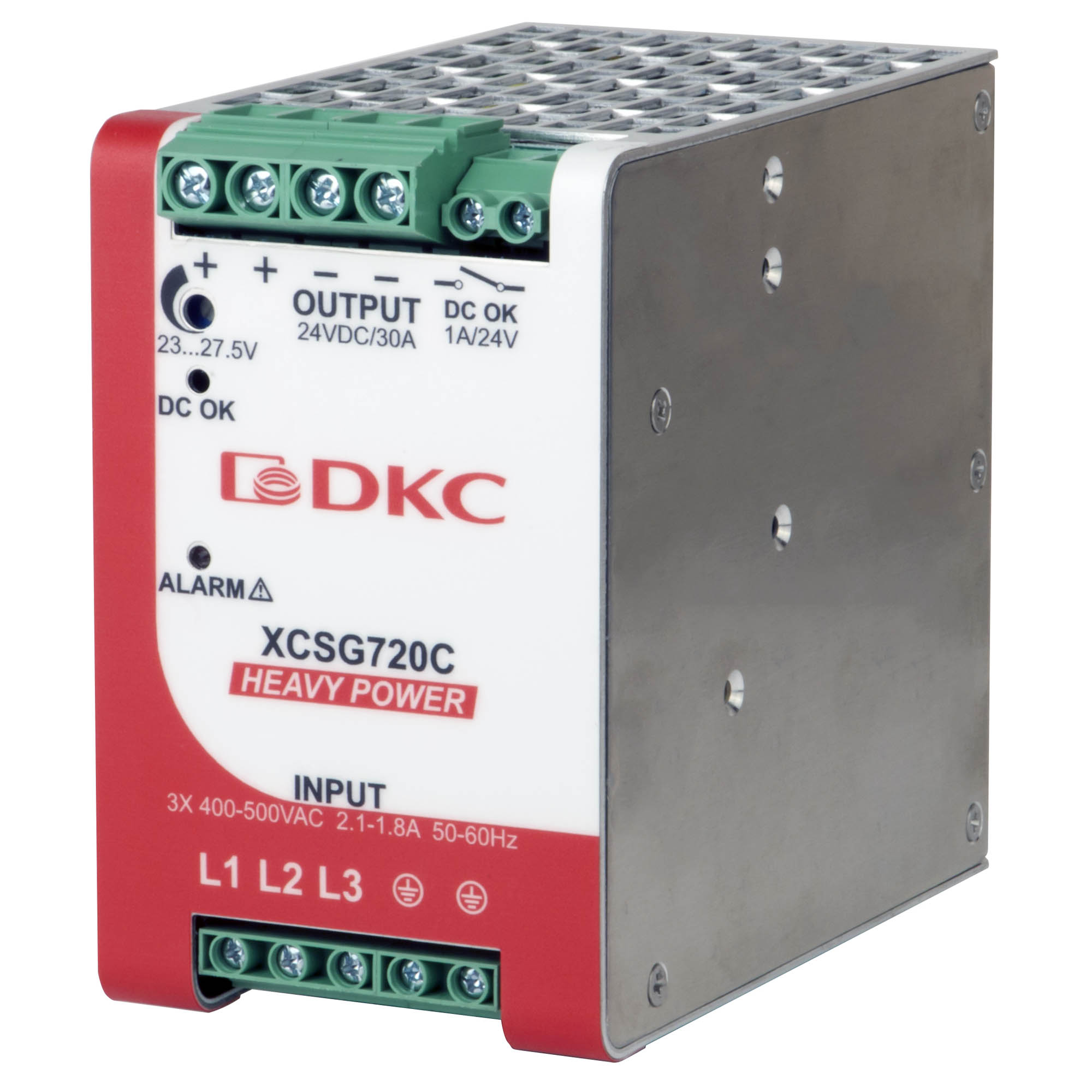

Switch mode power supply "HEAVY POWER", three phase, 720W, 30A, 24V
Code:
XCSG720C
Switch mode power supply "HEAVY POWER", three phase, 720W, 30A, 24V
Code:
XCSG720C
| Width, mm | 80 |
| Height, mm | 127 |
| Depth, mm | 139 |
| Modular version | No |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 720 |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| 1st secondary output voltage, V | 24...28 |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 50 Hz, V | 340...550 |
| Rated supply voltage at AC 60 Hz, V | 400...500 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 30 |
| Max. output current 2, A | 45 |
| Max. output current 3, A | 60 |
| Type of electric connection | Screw connection |
| Nominal value output voltage 1, V | 24 |
| Nominal value output current 1, A | 30 |
| Power consumption, VA | 733 |
| Width in number of modular spacings | 4 |
| Number of phases | Three-phase |
