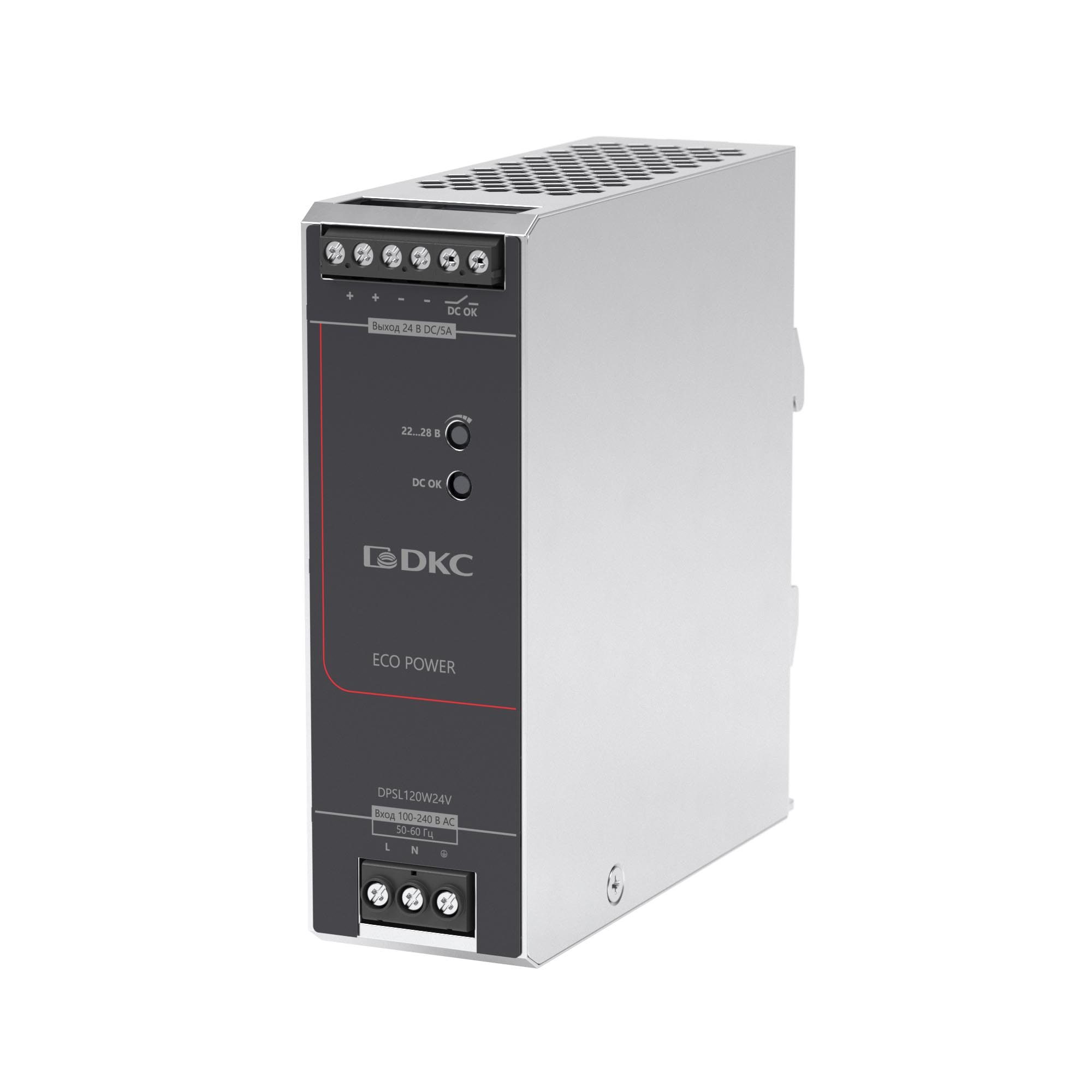

Power supply "ECO POWER", single phase, 120W, 5A, 24V
Code:
DPSL120W24V
Power supply "ECO POWER", single phase, 120W, 5A, 24V
Code:
DPSL120W24V
| Width, mm | 40 |
| Height, mm | 117.6 |
| Depth, mm | 123.6 |
| Power consumption, VA | 291 |
| Modular version | No |
| Width in number of modular spacings | 2 |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 120 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| 1st secondary output voltage, V | 22...28 |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 50 Hz, V | 85...264 |
| Rated supply voltage at AC 60 Hz, V | 85...264 |
| Rated supply voltage at DC, V | 120...375 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 5 |
| Nominal value output voltage 1, V | 24 |
| Nominal value output current 1, A | 5 |
| Number of phases | Single phase |
