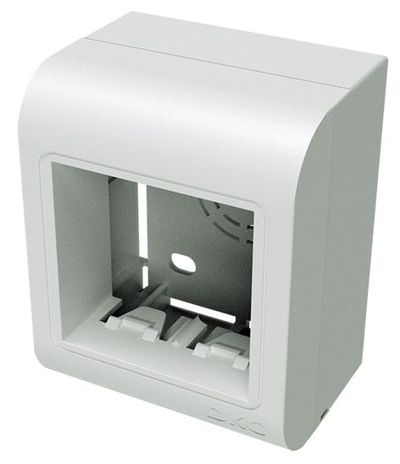

PDB Box for outlet 2 mod. BRAVA

Code: 10034
PDB Box for outlet 2 mod. BRAVA
PDB Box for outlet 2 mod. BRAVA
Model Open
Number of units 2
Type of device Grid size 45
Material Plastic
Mounting method installation unit Snap
Strain relief possibility No
With connection space No
Mounting method box Other
Mounting track Other
Number of modules 2

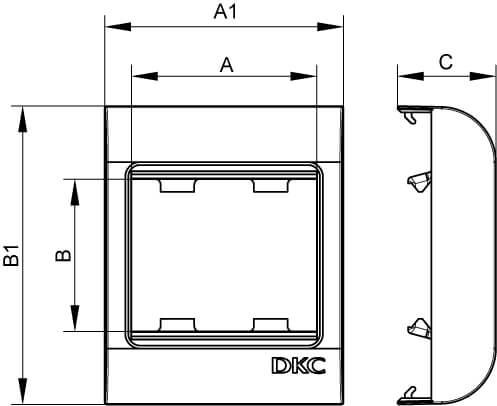

Width, mm 80
Length, mm 65
Temperature of mounting, °C ­5°С ... +60°С
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Depth, mm 47
Q'ty of holes 0
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Type Junction box
Certificates
Name Document
Exemption letter for fire safety certificates for accessories ducts "In-Liner Classic", "In-Liner Front", "Viva", "Brava"
PDF
921.83 kB
