| Nominal voltage, V | 220...230 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Rocker/button |
| Colour | White |
| Halogen free | Yes |
| Illumination | Without illumination |
| Surface protection | Decor |
| Nominal rated current, A | 10 |
| Label space/information surface | No |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Screw mounting |
| Wiring system | Other |
| Number of rockers | 1 |
| Push button switch | No |
| Washing machine switch | No |
| Type of surface | Not applicable |
| Suitable for degree of protection (IP) | IP20 |
| Number of modules | 1 |
| Decoration | Декор по эскизу |
| Connection type | Screwed terminal |
| Material of case | ABC-plastic |

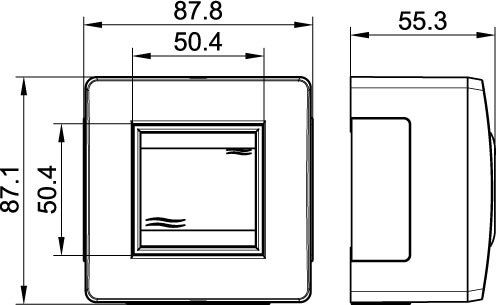

| Width, mm | 86 |
| Length, mm | 86 |
| Temperature of mounting, °C | 5°С ... +60°С |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Climate version | UHL4 |
| Q'ty of bays | 1 |
| Depth, mm | 56 |
| Q'ty of holes | 3 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |

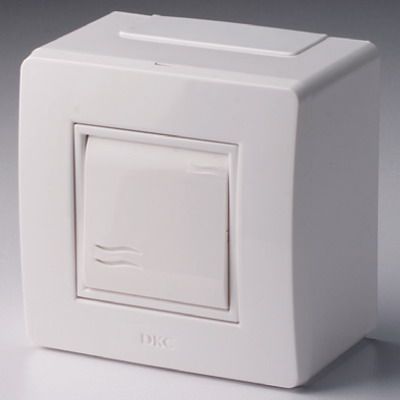

| Product type | Box assembly with switches |
