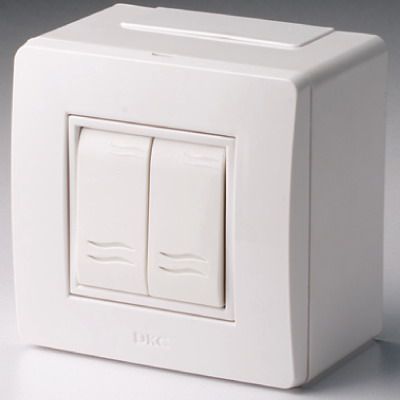

Box with 2 switches, 2 mod., white

Code: 10001
Box with 2 switches, 2 mod., white
  • To ask a question
Nominal voltage, V 220...230
Mounting method Surface mounted (plaster)
Assembly arrangement Basic element with complete housing
Method of operation Rocker/button
Colour White
Halogen free Yes
Illumination Without illumination
Surface protection Decor
Nominal rated current, A 10
Label space/information surface No
Feedback-signal contact No
Material quality Thermoplastic
Material Plastic
Type of fastening Screw mounting
Wiring system Other
Number of rockers 2
Push button switch No
Washing machine switch No
Type of surface Not applicable
Suitable for degree of protection (IP) IP20
Number of modules 1
Decoration Декор по эскизу
Connection type Screwed terminal
Material of case ABC-plastic

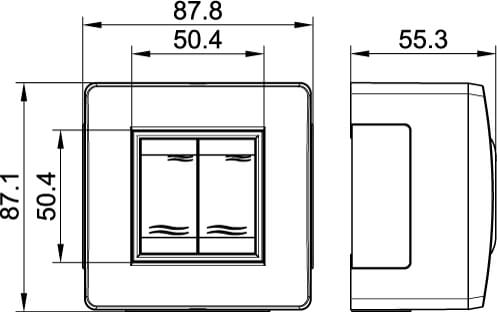

Width, mm 86
Length, mm 86
Temperature of mounting, °C ­5°С ... +60°С
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Depth, mm 56
Q'ty of holes 3
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Box assembly with switches
