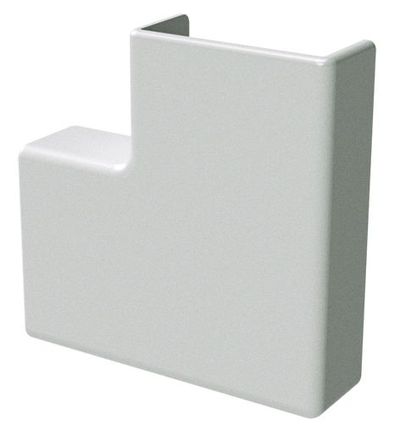

APM 50x20 Flat L-form angle, white

Code: 00654
APM 50x20 Flat L-form angle, white
  • To ask a question
Colour Clear white
Width, mm 50
Model Other
Halogen free Yes
Depth, mm 20
Surface protection Other
Material quality Other
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Direction Rising/descending
Protection film No
Symmetric Yes
Angle, ° 90
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 50
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 20
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Flat angle
