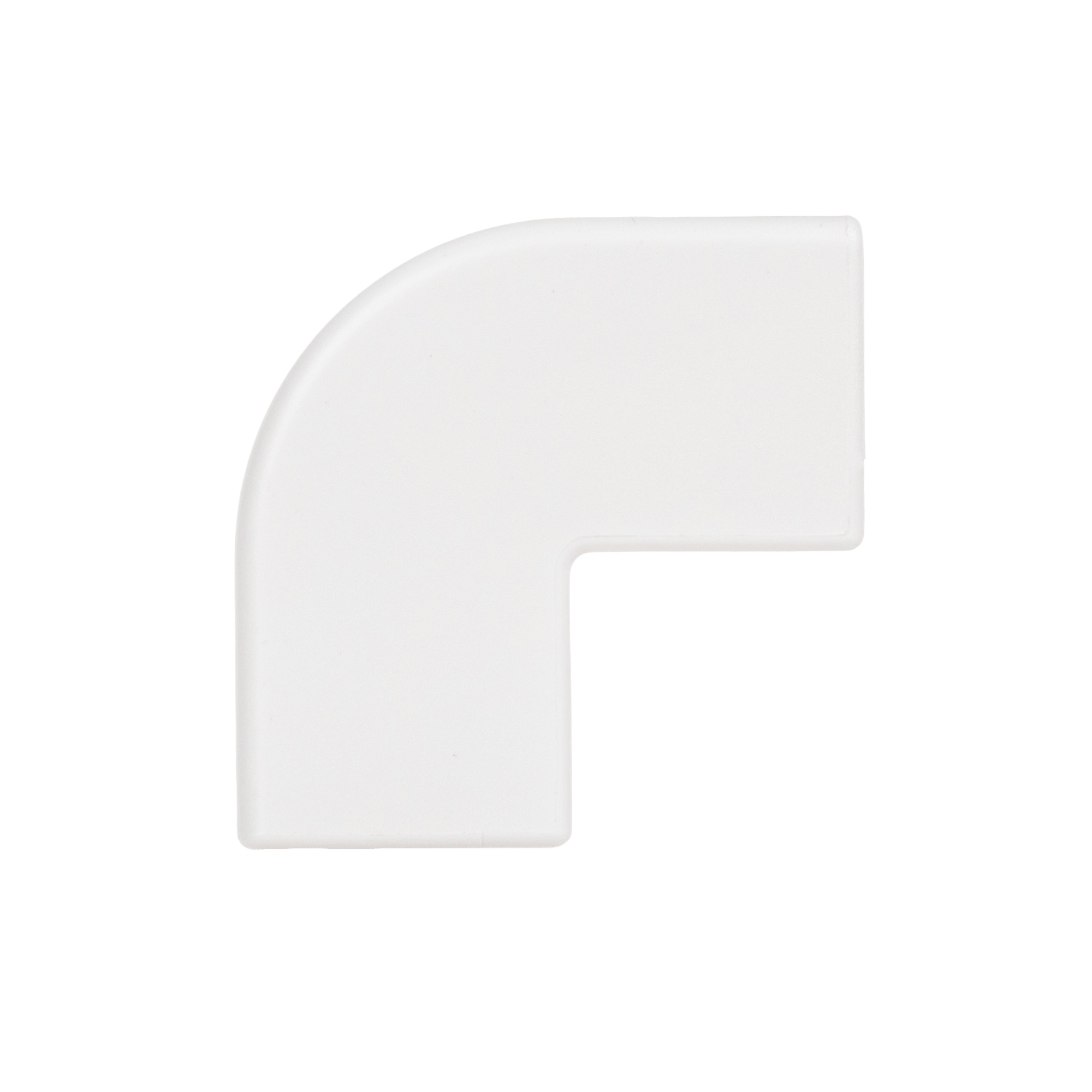

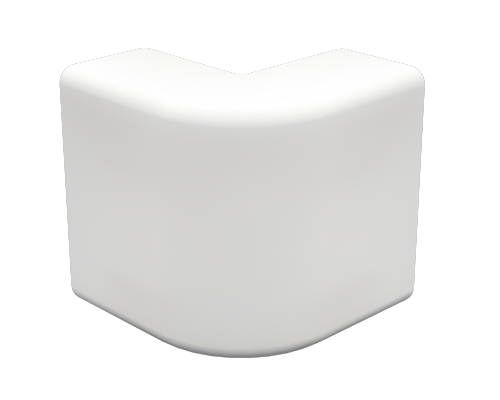

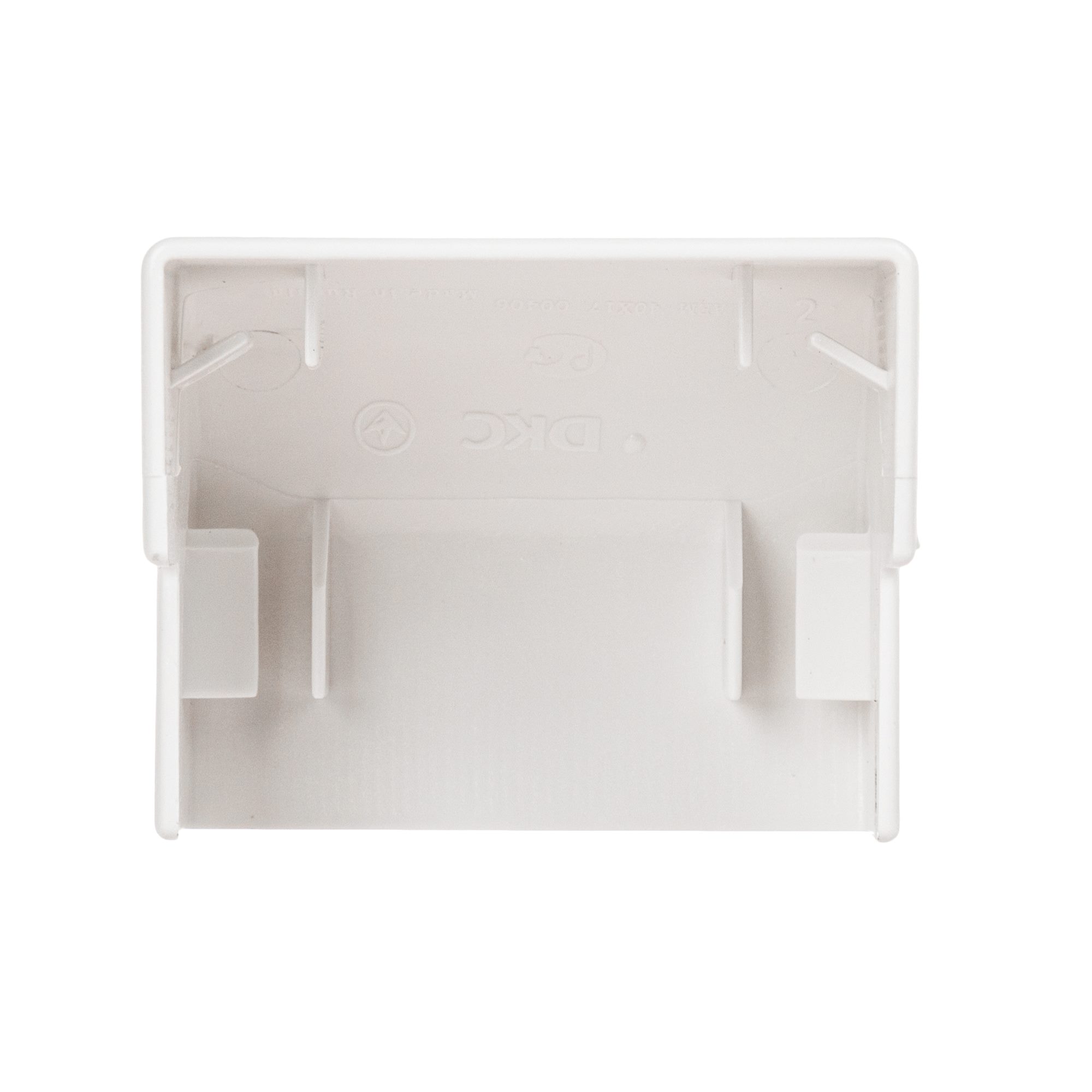

AEM 22x10 External angle, white

Code: 00396
AEM 22x10 External angle, white
  • To ask a question
Colour Clear white

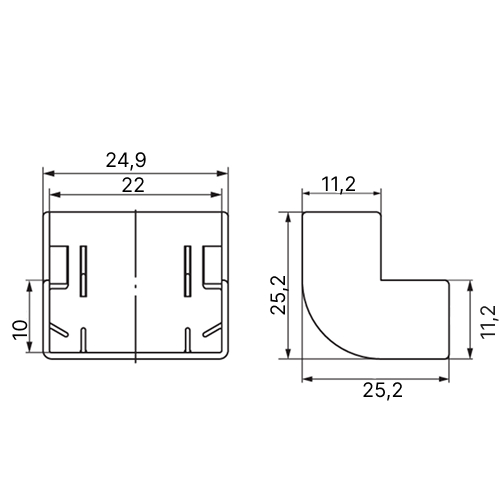

Width, mm 22
Halogen free Yes
Depth, mm 10
Material quality Plastic
Material Plastic
Mounting method covers Inner lying
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Protection film No
Symmetric Yes
Angle, ° 90
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 22
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 10
Q'ty of holes 2
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type External changeable angle
