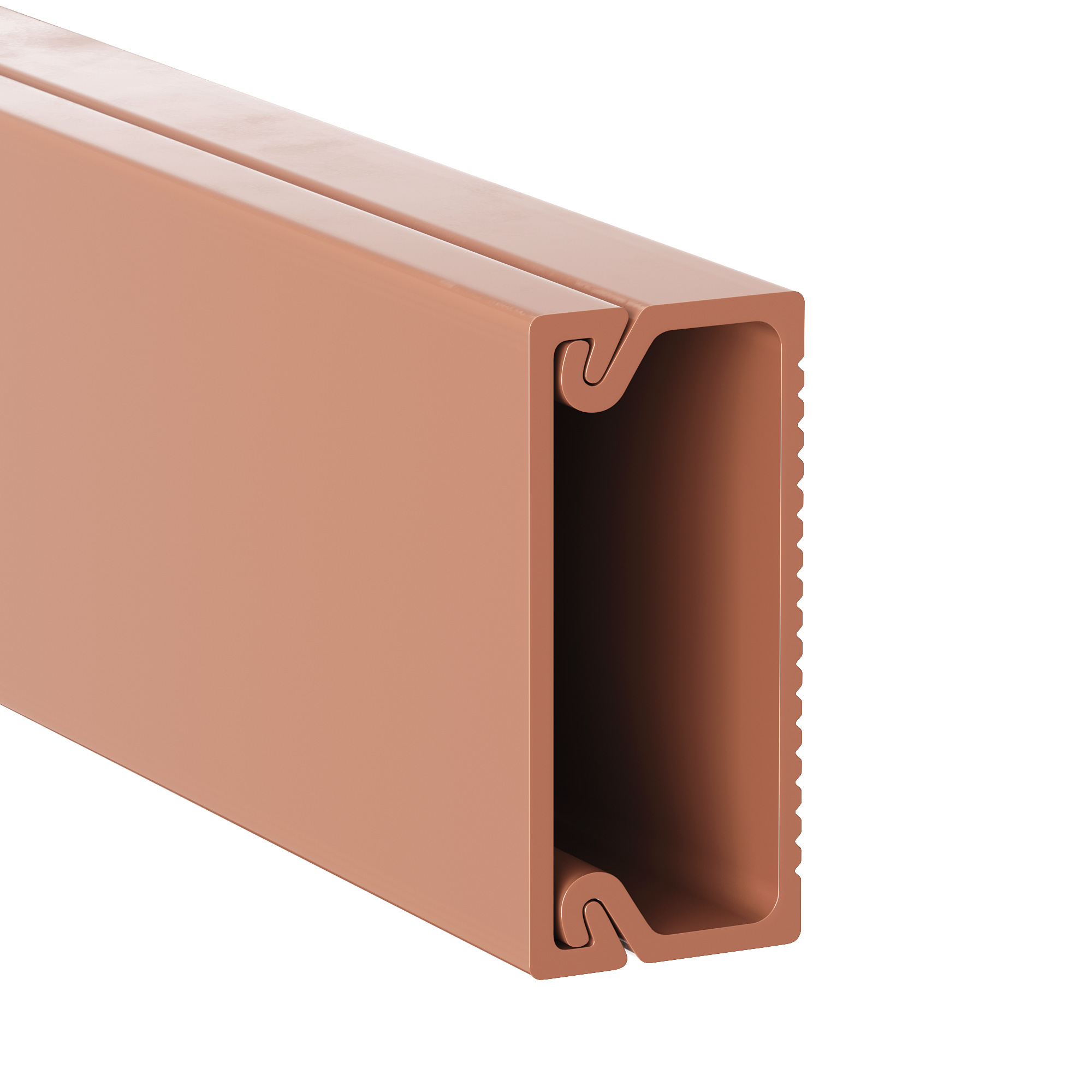

TMC 22x10 Cable trunking with cover, brown (retail)

Code: 00317RB
TMC 22x10 Cable trunking with cover, brown (retail)
  • To ask a question
Colour Brown

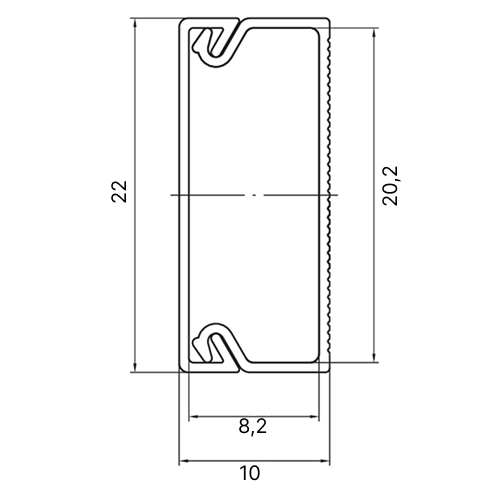

Width, mm 22
Height, mm 10
Surface protection Other
Cover model Loose
Material quality PVC
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
With cable fixing clip No
With duct connector No
Useful cross section, mm² 151
Protection film No
Delivery on roll No
Transparent No
Suitable for circuit integrity No
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 22
Ingress Protection rating, IP IP40
Average filled area, sq.mm 151
Summarized profile area (max), sq.mm 151
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 2
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 10
Product type Miniduct
