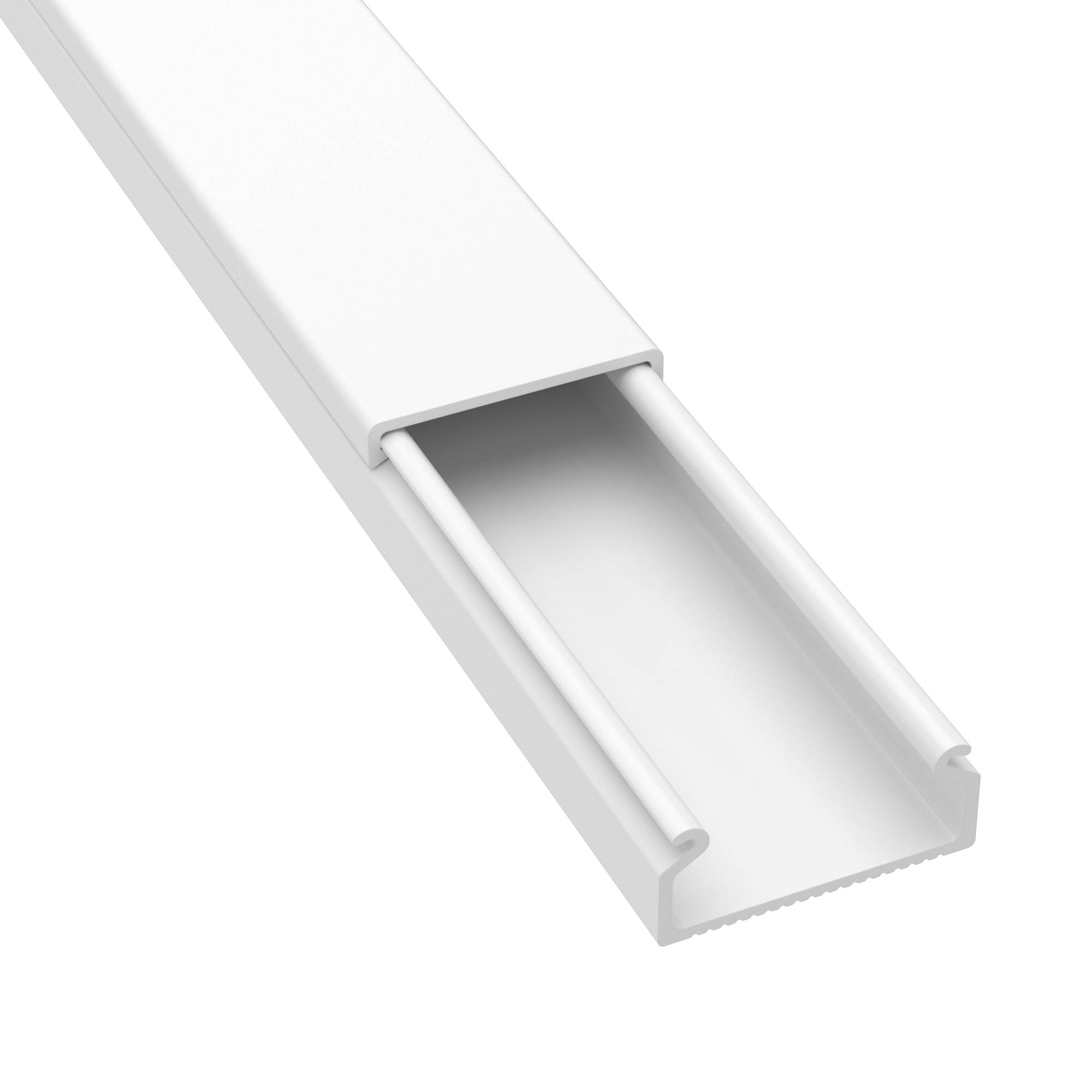

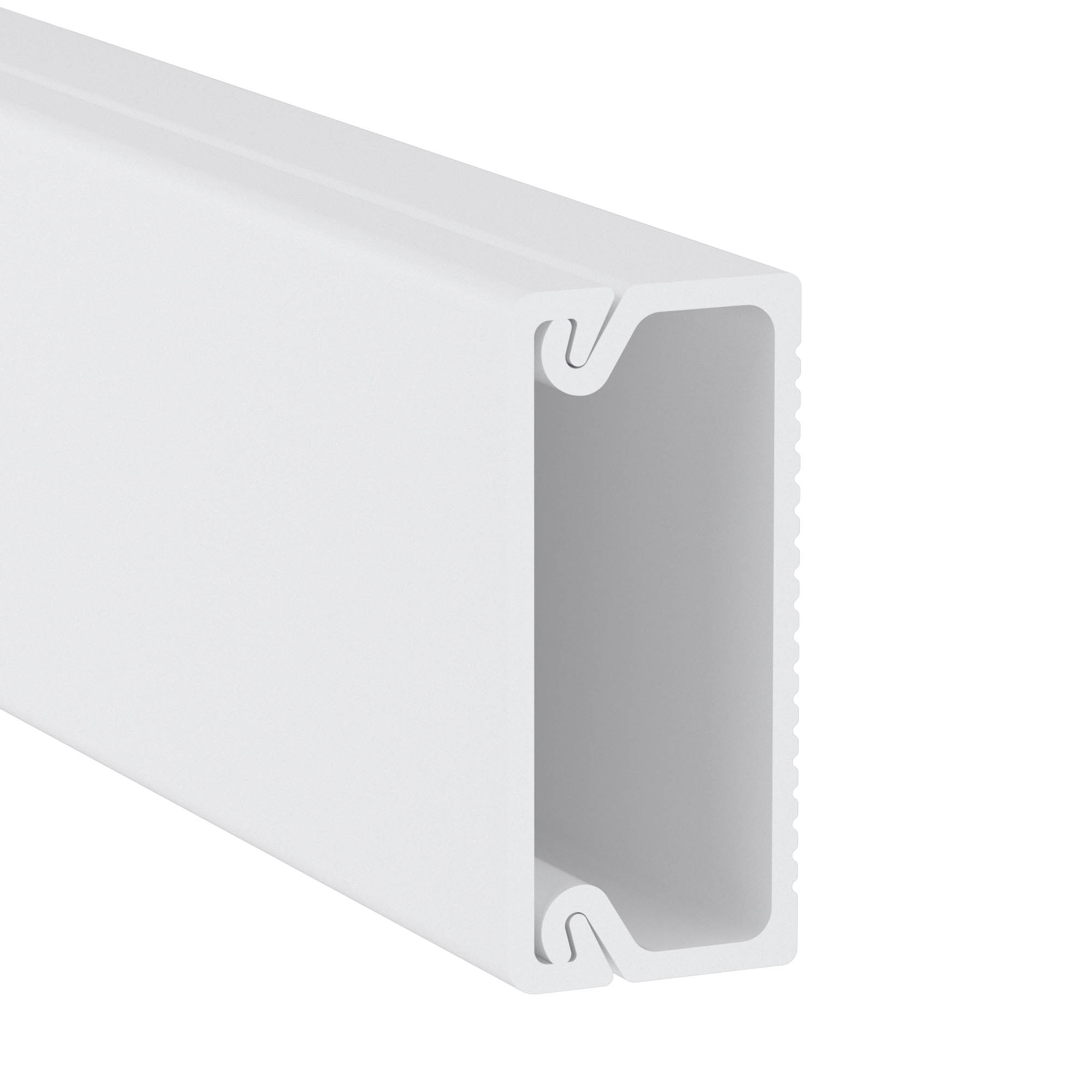

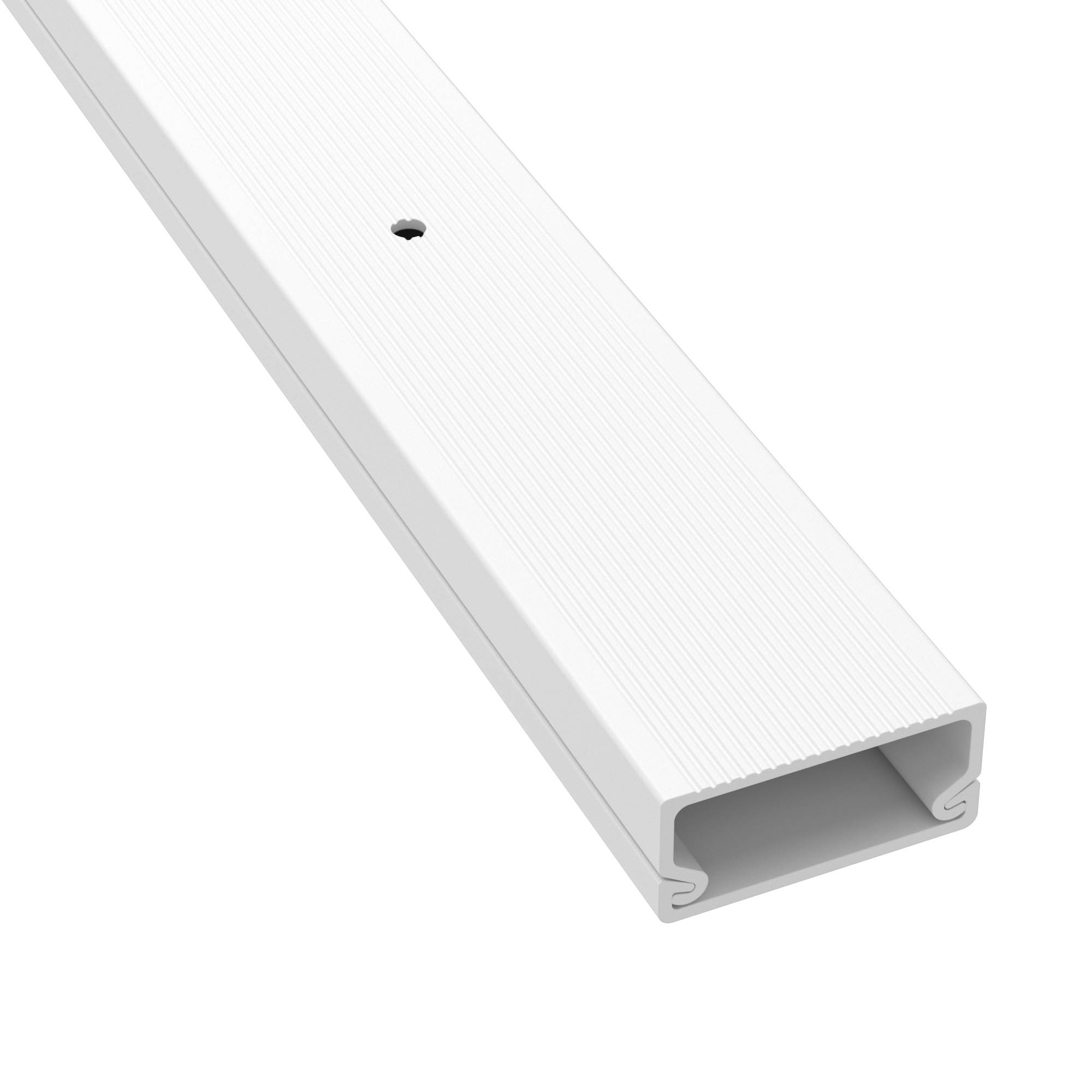

TMC 22x10 Cable trunking with cover, white (retail)

Code: 00317R

TMC 22x10 Cable trunking with cover, white (retail)

Code: 00317R
Colour Pure white

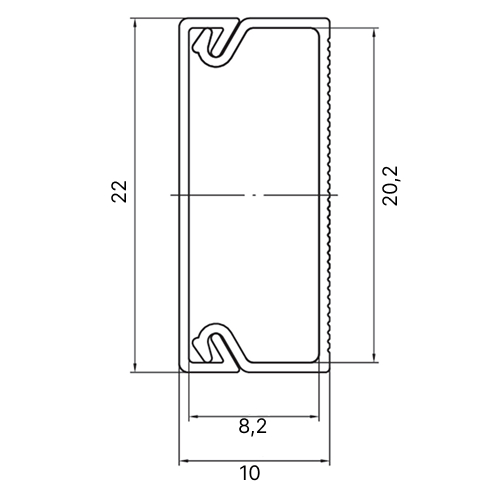

Width, mm 22
Height, mm 10
RAL-number 9016
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 151
With protection film Yes
Delivery on roll Yes
Transparent Yes
Suitable for circuit integrity Yes
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 22
Ingress Protection rating, IP IP40
Average filled area, sq.mm 151
Summarized profile area (max), sq.mm 151
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 2
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 10
Product type Miniduct
