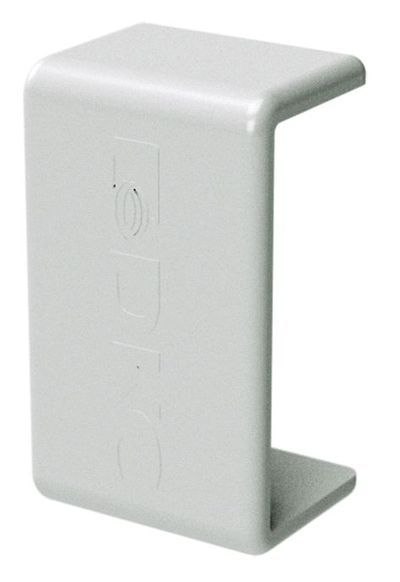

GM 40x17 Strap for cable trunking, white

Code: 00597
GM 40x17 Strap for cable trunking, white
  • To ask a question
Colour Pure white
Model Joint cover base unit
Halogen free Yes
Material quality Plastic
Material Plastic
Type of fastening Snap on

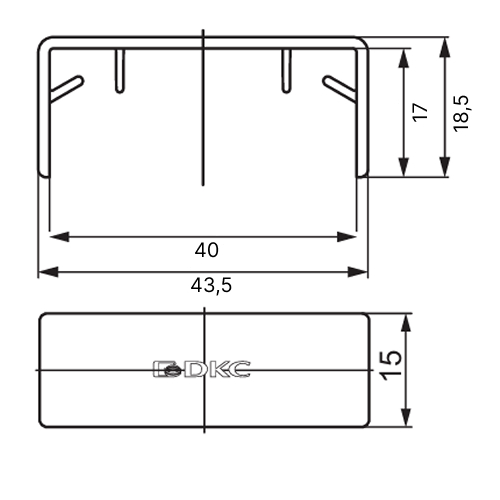

Cover width, mm 40
Shape Symmetric
Suitable for wall duct width, mm 40
Depth of wall duct, mm 17
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 40
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Height (nominal), mm 17
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Faceplate
