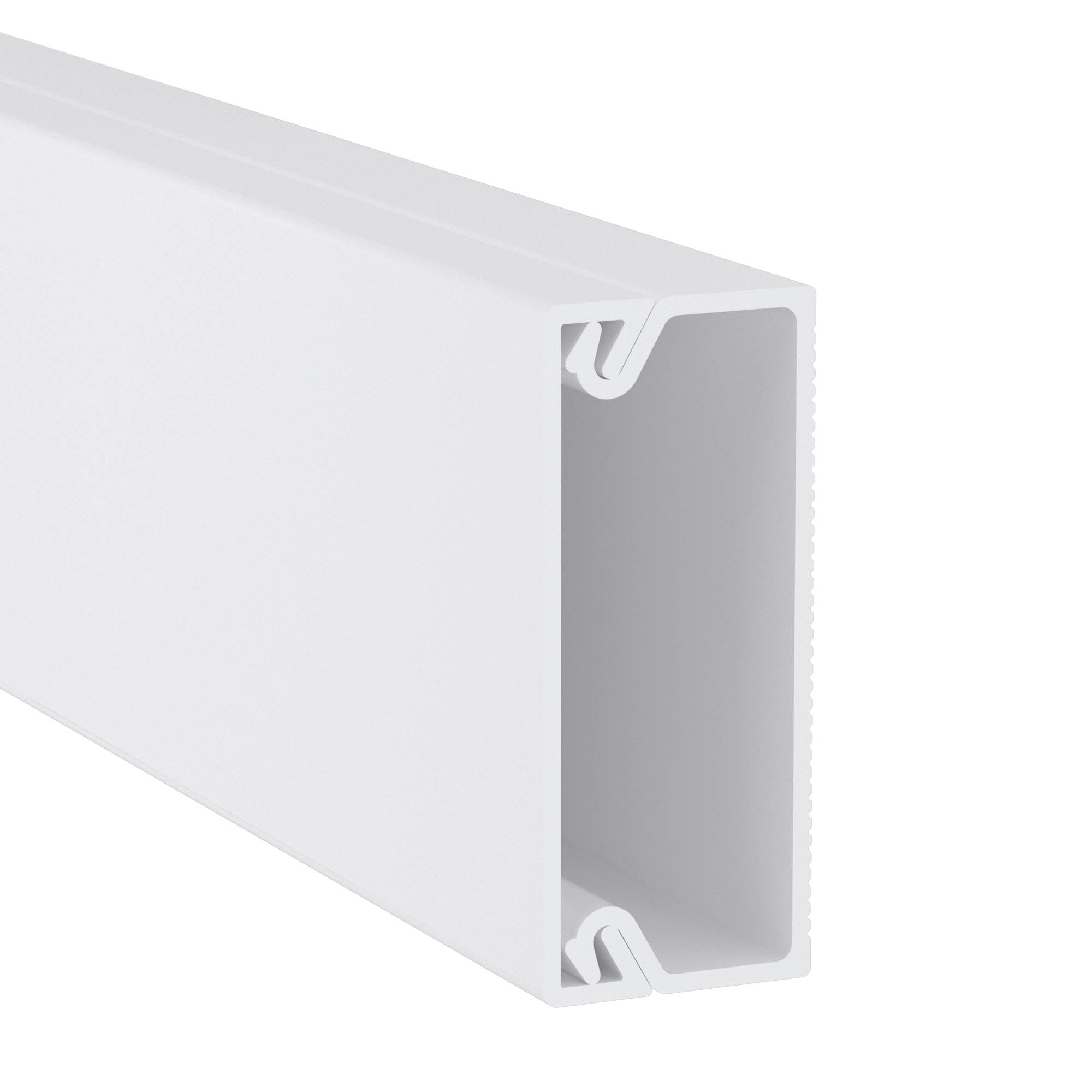

TMC 40x17 Cable trunking with cover, white (retail)

Code: 00351R
Colour Clear white

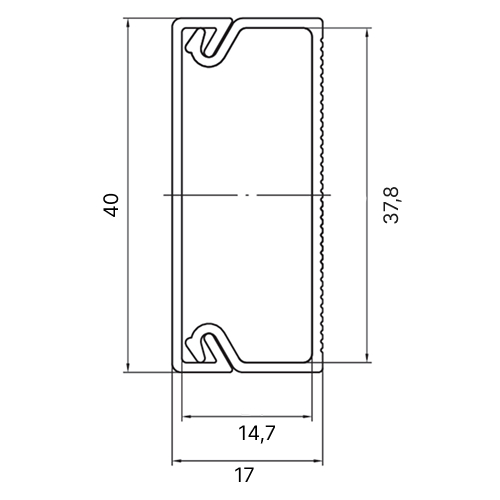

Width, mm 40
Height, mm 17
RAL-number 9016
Surface protection Other
Cover model Loose
Material quality PVC
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
With cable fixing clip No
With duct connector No
Useful cross section, mm² 512
Protection film No
Delivery on roll No
Transparent No
Suitable for circuit integrity No
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 40
Ingress Protection rating, IP IP40
Average filled area, sq.mm 512
Summarized profile area (max), sq.mm 512
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 2
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 17
Product type Miniduct
