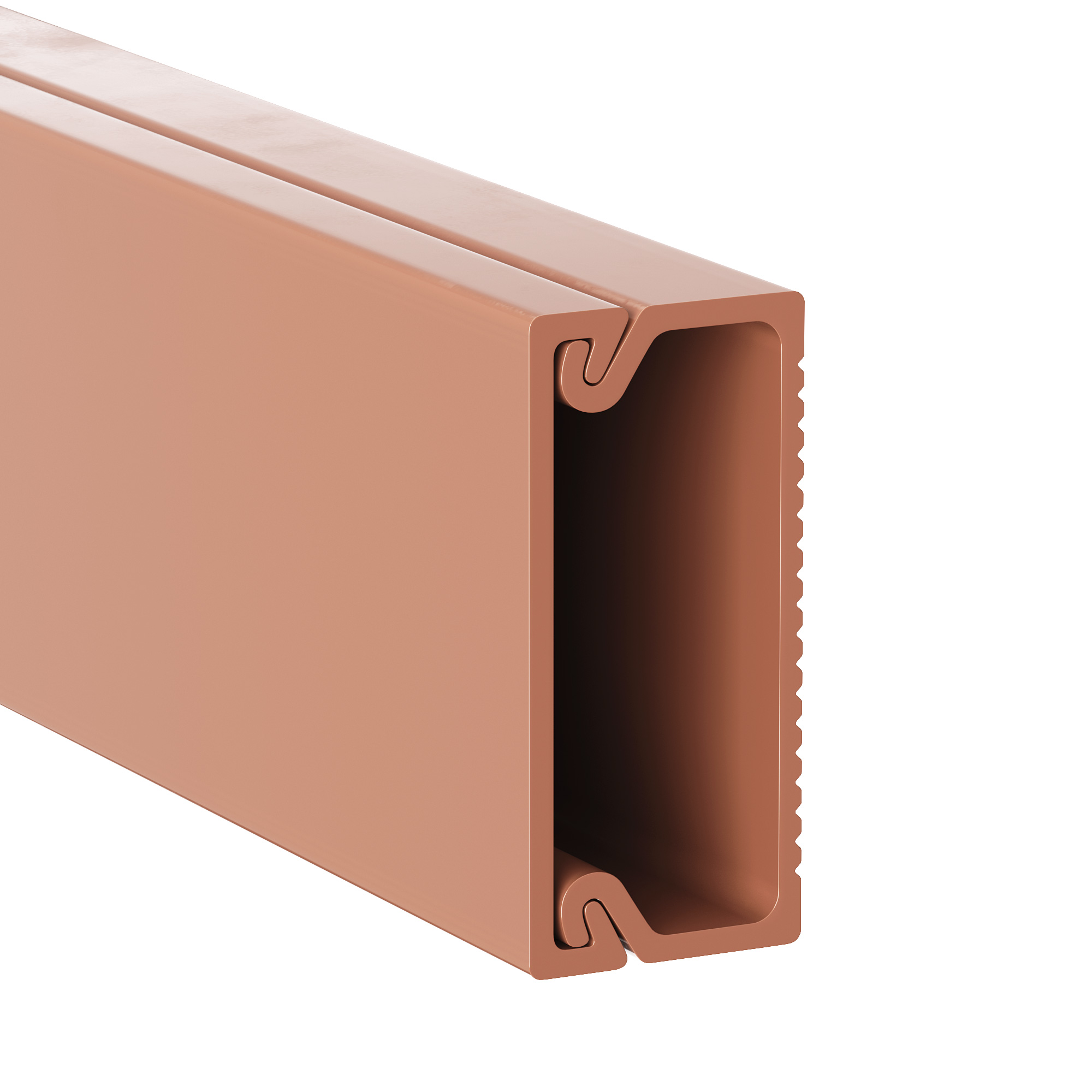

TMC 40x17 Cable trunking with cover, brown
TMC 40x17 Cable trunking with cover, brown
Code:
00351B
To ask a question
?
Products card
Characteristics
Accessories
Certificates
ETIM
Characteristics
Colour
Brown

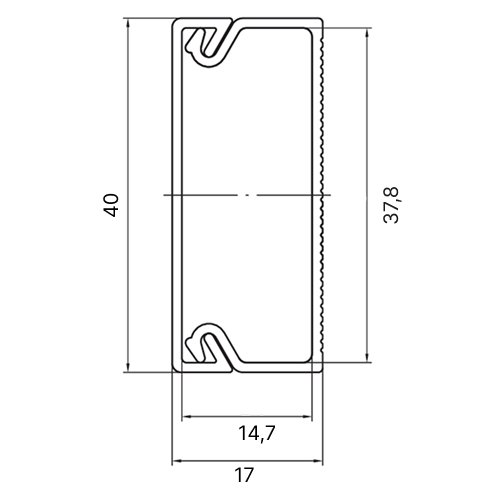

Width, mm
40
Height, mm
17
Surface protection
Other
Cover model
Loose
Material quality
PVC
Length, mm
2000
Material
Plastic
Type of fastening
Snapper mounting
With cable fixing clip
No
With duct connector
No
Useful cross section, mm²
512
Protection film
No
Delivery on roll
No
Transparent
No
Suitable for circuit integrity
No
Temperature of mounting, °C
5°С ... +60°С
Width (nominal), mm
40
Ingress Protection rating, IP
IP40
Average filled area, sq.mm
512
Summarized profile area (max), sq.mm
512
Temperature of operation, °C
5°С ... +60°С
Temperature of operation, °C
+60°C
Shock resistance, J
2
Climate version
UHL4
Q'ty of bays
1
Voltage of disruption, V
More 2500
Height (nominal), mm
17
Product type
Miniduct
Accessories
Screw anchor 3,5х50 F6 type
Code: CM06541
Box with 2 switches, 2 mod., brown
Code: 10001B
Box with 2 computer sockets RJ-45, 5e (2 jacks AМР), 2 mod., brown
Code: 10656B
Box with 1 computer socket RJ-45, 5e (1 jack AМР), 2 mod., brown
Code: 10665B
GM 40x17 Strap for cable trunking, brown
Code: 00597B
AEM 40x17 External angle, white
Code: 00406B
AIM 40x17 Internal angle, brown
Code: 00395B
APM Flat L-form angle 40х17 mm, brown
Code: 00425B
Box with 1 switch, 2 mod., brown
Code: 10002B
Box for outlet PDD-N 60, brown
Code: 10123RB
Box with outlet, 2Р+Е, with safety shutters, 2 mod., brown
Code: 10482B
IM 40x17 T-form angle (branch), brown
Code: 00541B
LM 40x17 Blank plate, brown (retail)
Code: 00579B
SDMN Junction box (cable distribution head), brown
Code: 00677B
