Mini ducts 40x17 mm with accessories

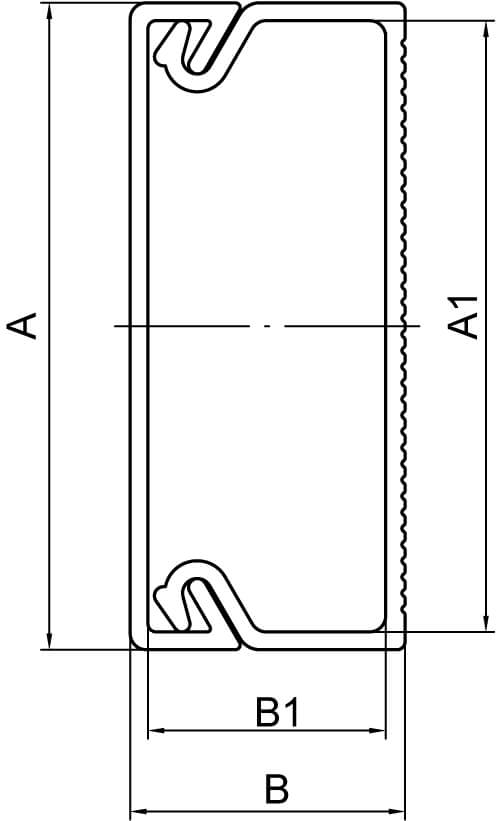

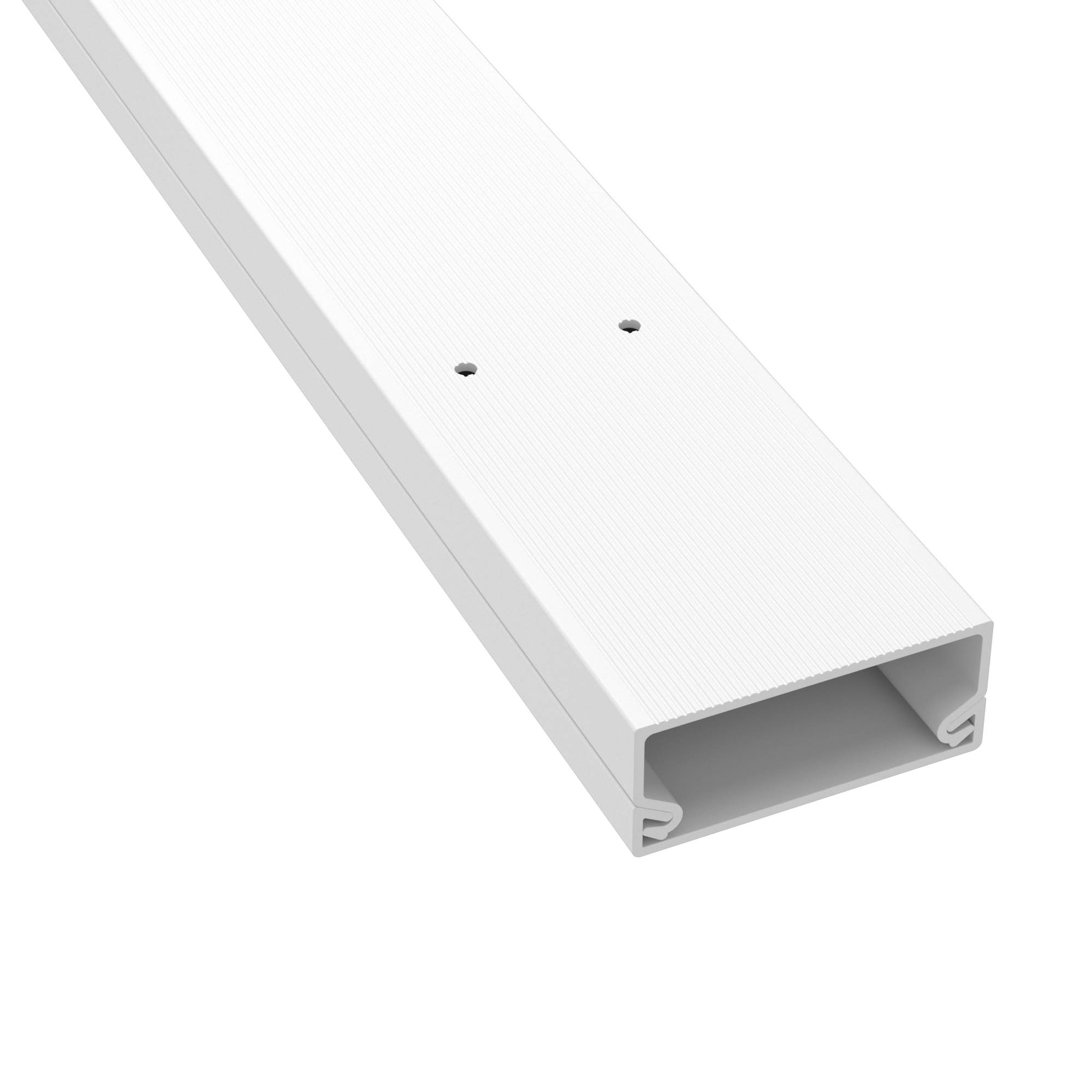

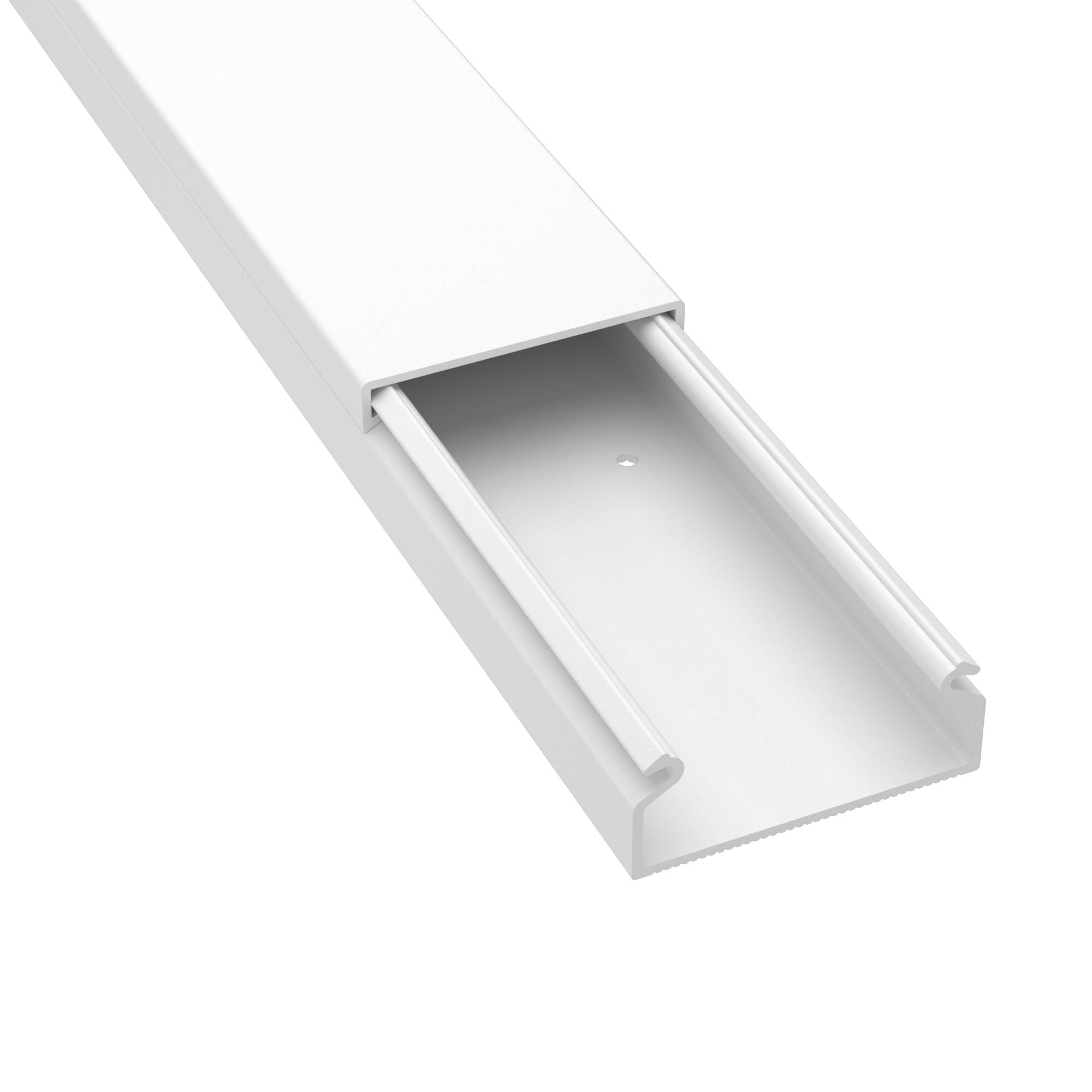

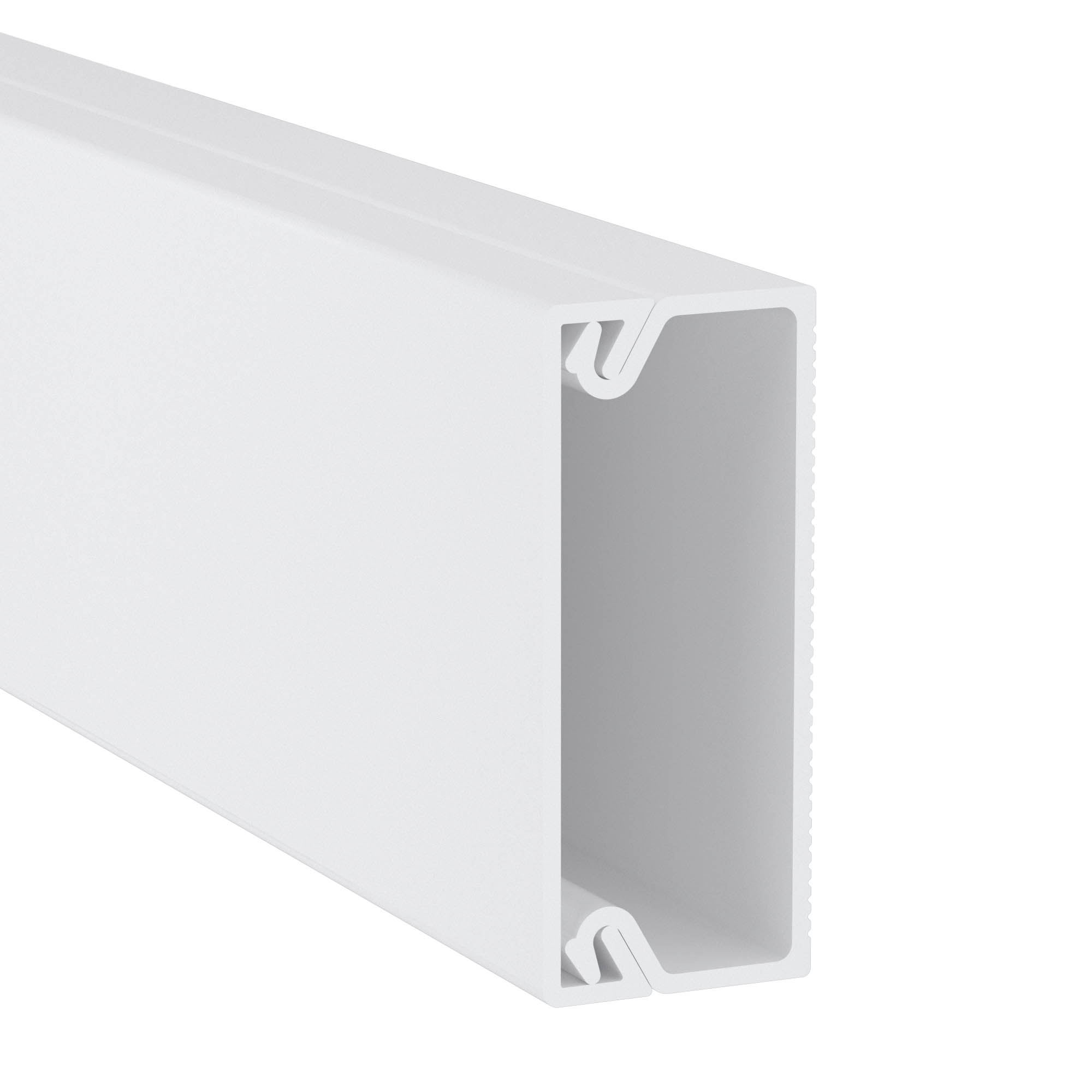

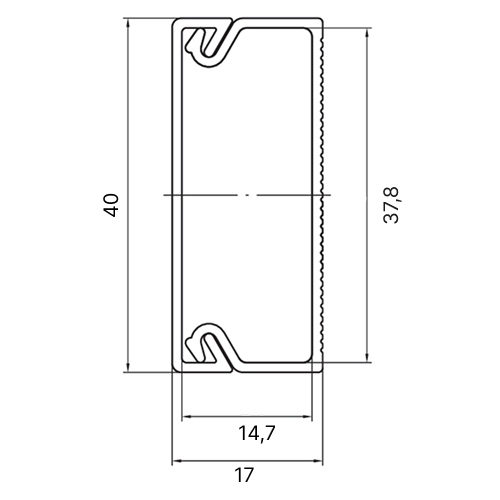

TMC 40x17 Cable trunking with cover, white
TMC 40x17 Cable trunking with cover, white
Code:
00351
To ask a question
_1
_2
?
Products card
Characteristics
Accessories
ETIM
Characteristics
Colour
Clear white
Width, mm
40
Height, mm
17
RAL-number
9016
Cover model
Loose
Material quality
PVC
Length, mm
2000
Material
Plastic
Type of fastening
Snapper mounting
With cable fixing clip
No
With duct connector
No
Useful cross section, mm²
512
Protection film
No
Delivery on roll
No
Transparent
No
Suitable for circuit integrity
No
Material
PVC
Temperature of mounting, °C
5°С ... +60°С
Width (nominal), mm
40
Ingress Protection rating, IP
IP40
Average filled area, sq.mm
512
Summarized profile area (max), sq.mm
512
Temperature of operation, °C
5°С ... +60°С
Temperature of operation, °C
+60°C
Shock resistance, J
2
Climate version
UHL4
Q'ty of bays
1
Voltage of disruption, V
More 2500
Height (nominal), mm
17
Product type
Miniduct
Accessories
Screw anchor 3,5х50 F6 type
Code: CM06541
Box with 2 switches, 2 mod., white
Code: 10001
Box with 1 switch, 2 mod., white
Code: 10002
Box with 2 computer sockets RJ-45, 5e (2 jacks AМР), 2 mod., white
Code: 10656
Box with 1 computer socket RJ-45, 5e (1 jack AМР), 2 mod., white
Code: 10665
Junction box (cable distribution head) 110x110x55 mm
Code: 01869
Box for outlet PDD-N 60, white
Code: 10123
Box for outlet PDD-N 120, white
Code: 10143
AEM 40x17 External angle, white
Code: 00406
Adapters for mini-ducts, white
Code: 10133
AIM 40x17 Internal angle, white
Code: 00395
APM Flat L-form angle 40х17 mm, white
Code: 00425
Adapter for duct 40x17, 50x20 mm, white
Code: 10046
IM 40x17 T-form angle (branch), white
Code: 00541
LM 40x17 Blank plate, white
Code: 00579
GM 40x17 Strap for cable trunking, white
Code: 00597
SDMN Junction box (cable distribution head)
Code: 00677
SDN3 Junction box (cable distribution head, Italy) 231x231x95 мм
Code: 01771
SDN2 Junction box (cable distribution head) 151x151x75 mm
Code: 01870
PDM Box for outlet 2 mod. 45x45 mm
Code: 10013
PDD Box for outlet 2 mod. VIVA
Code: 10033
PDB Box for outlet 2 mod. BRAVA
Code: 10034
