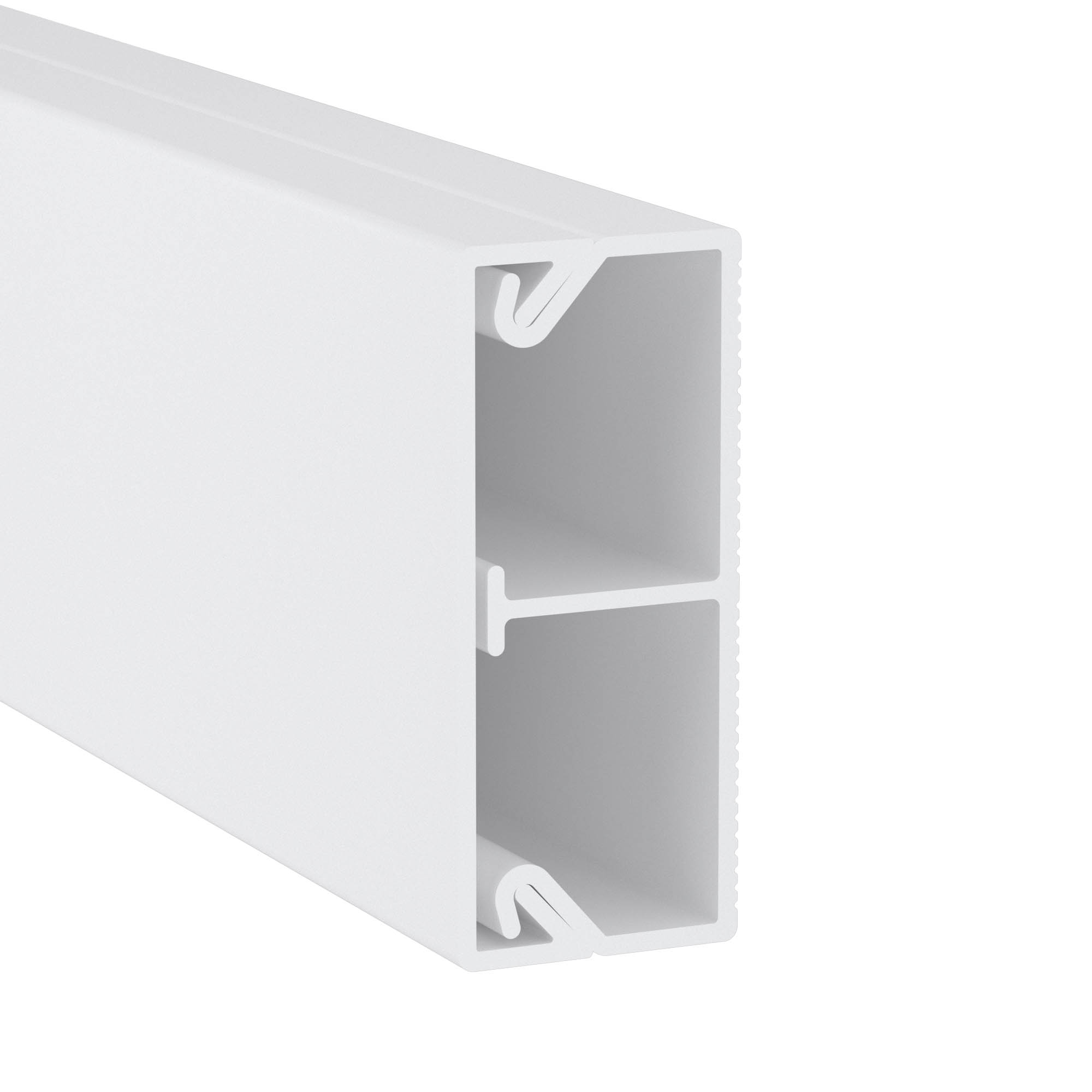

TMC 40/2x17 Cable trunking with cover, white (retail)
Code:
00305R
TMC 40/2x17 Cable trunking with cover, white (retail)
Code:
00305R

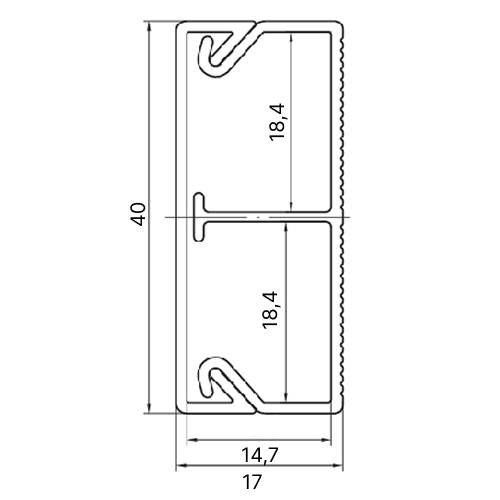

| Colour | Pure white |
| Width, mm | 40 |
| Height, mm | 17 |
| RAL-number | 9016 |
| Material quality | Polyvinyl chloride (PVC) |
| Length, mm | 2000 |
| Material | Plastic |
| Type of fastening | Snapper mounting |
| Number of permanent partitions | 1 |
| With cable fixing clip | Yes |
| With duct connector | Yes |
| Useful cross section, mm² | 490 |
| With protection film | Yes |
| Delivery on roll | Yes |
| Transparent | Yes |
| Suitable for circuit integrity | Yes |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 40 |
| Ingress Protection rating, IP | IP40 |
| Average filled area, sq.mm | 245+245 |
| Summarized profile area (max), sq.mm | 490 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Shock resistance, J | 2 |
| Climate version | UHL4 |
| Q'ty of bays | 2 |
| Voltage of disruption, V | More 2500 |
| Height (nominal), mm | 17 |
| Product type | Miniduct |
