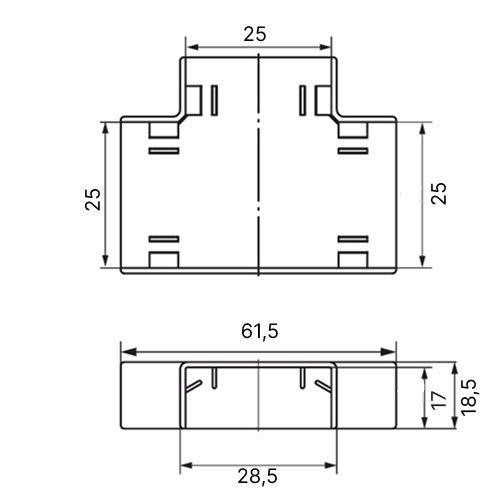

IM 25x17 T-form angle (branch), white

Code: 00536
  • To ask a question
Colour Pure white
Width, mm 25
Model Base unit and cover
Halogen free Yes
Depth, mm 17
RAL-number 9016
Width branch, mm 25
Material quality Polyvinyl chloride (PVC)
Material Plastic
Mounting method cover Inner lying
Number of covers 1
Mounting perforation in bottom Yes
With cable fixing clip Yes
With duct connector Yes
With protection film Yes
Symmetric Yes
Surface protection Untreated
Color white, RAL 9016
Material ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 25
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 17
Q'ty of holes 3
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type T-branch
