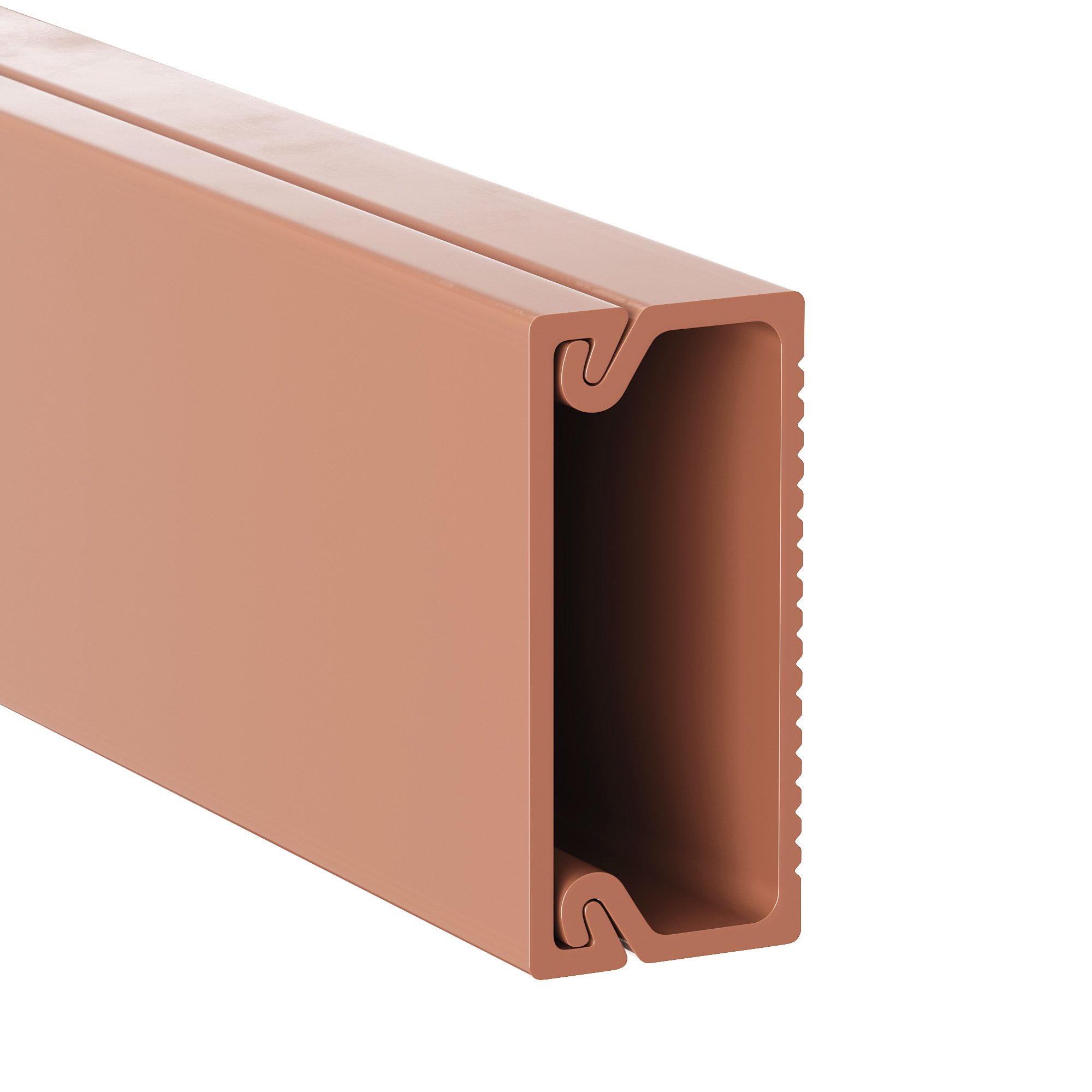

TMC 25x17 Cable trunking with cover, brown (retail)

Code: 00304RB
TMC 25x17 Cable trunking with cover, brown (retail)
  • To ask a question
Colour Brown
Width, mm 25
Height, mm 17
Material quality Polyvinyl chloride (PVC)
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
With cable fixing clip Yes
With duct connector Yes
Useful cross section, mm² 301
With protection film Yes
Delivery on roll Yes
Transparent Yes
Suitable for circuit integrity Yes
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 25
Ingress Protection rating, IP IP40
Average filled area, sq.mm 301
Summarized profile area (max), sq.mm 301
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 2
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 17
Product type Miniduct
